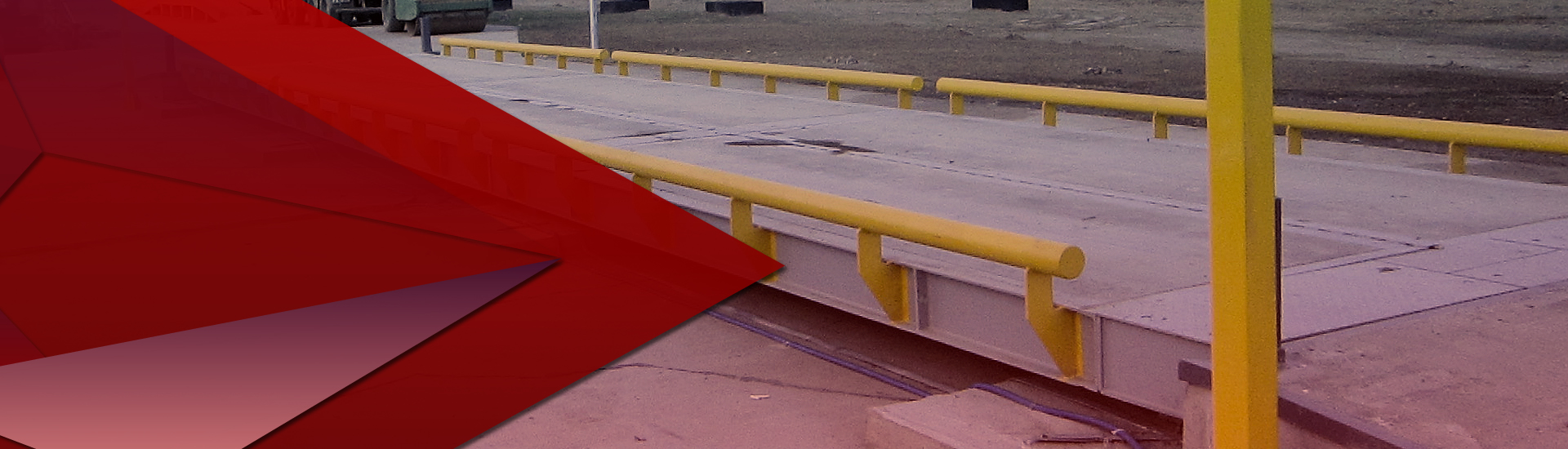

Concrete platform truck scales feature reinforced concrete decks, providing superior stability, longevity, and resistance to heavy loads, making them suitable for permanent installations in high-traffic areas.

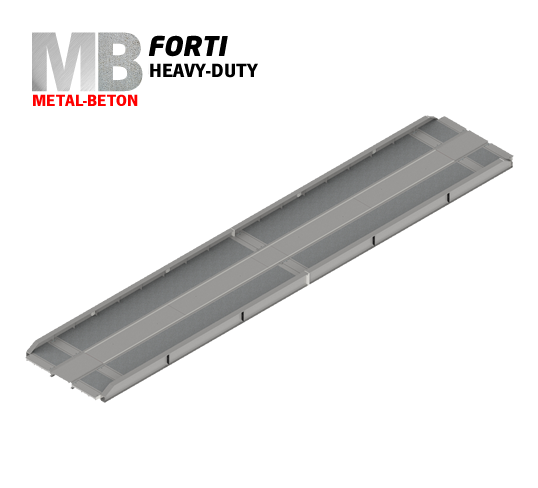

FORTI
METAL-CONCRETE
HEAVY DUTY
Truck Scales with Welded structure with high side beams, flanged longitudinally and transversely. Reinforced track with sheet metal formwork for concrete pouring type C45 / 55 (according to DIN 1045) on-site. Platform height 20cm. Non-removable lids in the middle.
| LENGTH | 16m | 18m |
|---|---|---|
| PLATFORM | METAL-CONCRETE | |
| CAPACITY [t] | 60 | 60 |
| CLC [k] | 75 | 75 |
| ARROW F [mm] | 1: 800 | 1: 750 |
| HEIGHT H [cm] | 20 | 20 |
| CONSUMPTION | 16m | 18m |
|---|---|---|
| METAL [t] | 7.6 | 8.6 |
| PREFABRICATED CONCRETE [mc] | 7.3 | 8.5 |

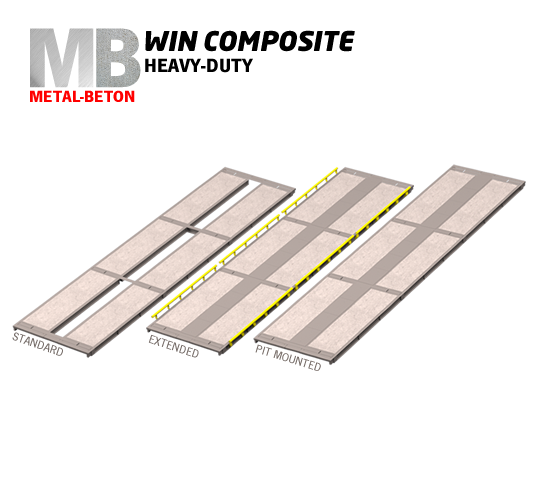

WIN COMPOSITE
METAL-CONCRETE
HEAVY DUTY
Longitudinally and transversely flanged welded structure. Prefabricated, reinforced and concreted running track in the factory using concrete type C45 / 55 according to DIN 1045. Platform height 25cm. Optional corrugated road covers and protective railings. The central longitudinal space is 600mm wide.
| LENGTH | 16m | 18m |
|---|---|---|
| PLATFORM | METAL-CONCRETE | |
| CAPACITY [t] | 60/80 | 60/80 |
| CLC [k] | 70 | 70 |
| ARROW F [mm] | 1: 1000 | 1: 1000 |
| HEIGHT H [cm] | 24 | 24 |
| CONSUMPTION | 16m | 18m |
|---|---|---|
| PREFABRICATED CONCRETE [t] | 7.2 | 8.0 |

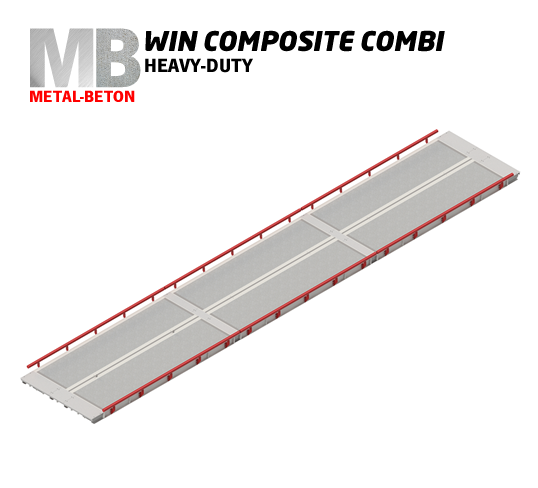

WIN COMPOSITE COMBI
METAL-CONCRETE
HEAVY DUTY
Welded structure flanged longitudinally and transversely. Prefabricated, reinforced and concreted runway in the factory using concrete type C45/55 in accordance with DIN 1045. Platform height 24cm. Optional, protective railings.
| LENGTH | 16m | 18m |
|---|---|---|
| PLATFORM | METAL-CONCRETE | |
| CAPACITY [t] | 60/80 | 60/80 |
| CLC [k] | 70 | 70 |
| ARROW F [mm] | 1: 1000 | 1: 1000 |
| HEIGHT H [cm] | 24 | 24 |
