METAL
HEAVY DUTY

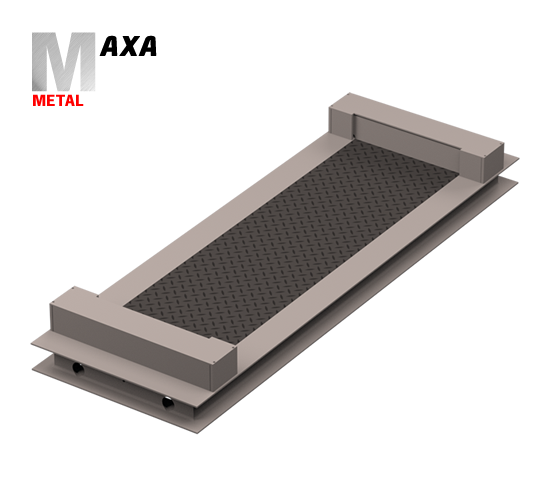

The AXA weighing system can weigh any vehicle up to 20t / axle, static or moving at a speed of up to 6km / h (depending on the conditions of the installation site and the driver’s driving mode).
| Maximum capacity | 20t |
|---|---|
| Minimum capacity | 200kg |
| Division | 10kg |
| Weight | ~ 1200kg |
| Dimensions | 3.5x0.9m |
| Temperatures | -10 ° C .. + 40 ° C |

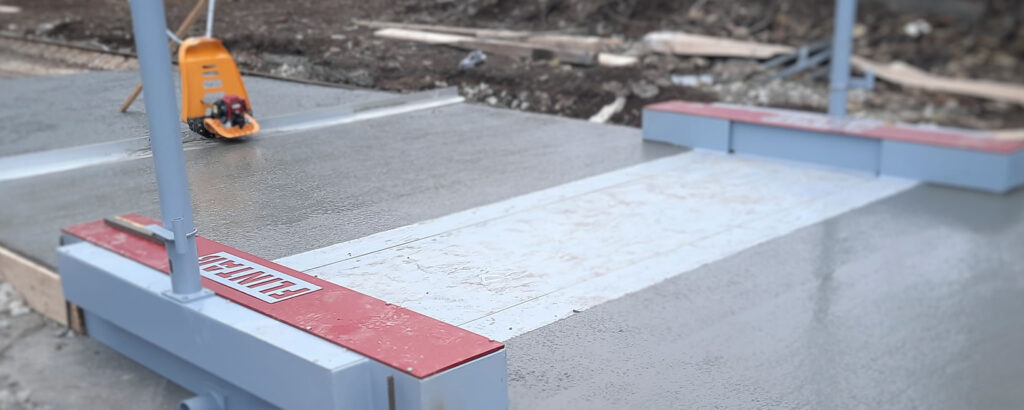

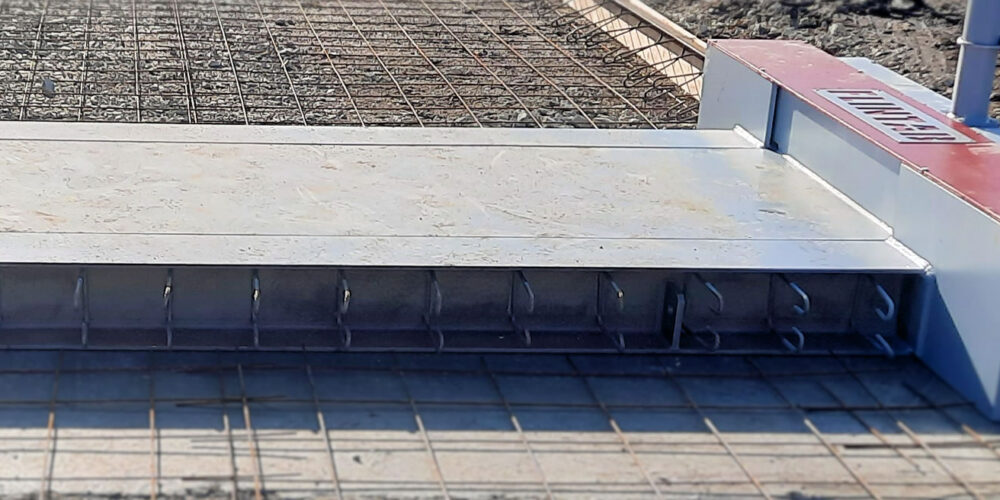

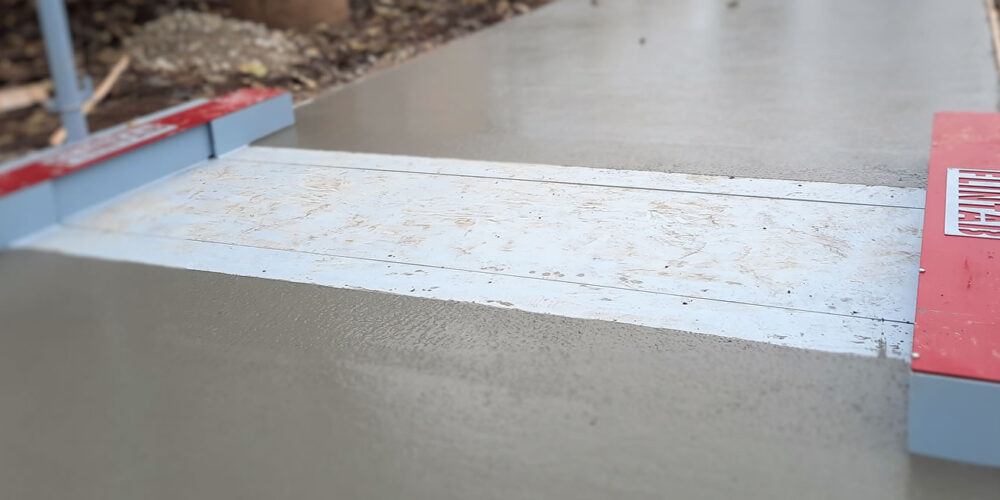

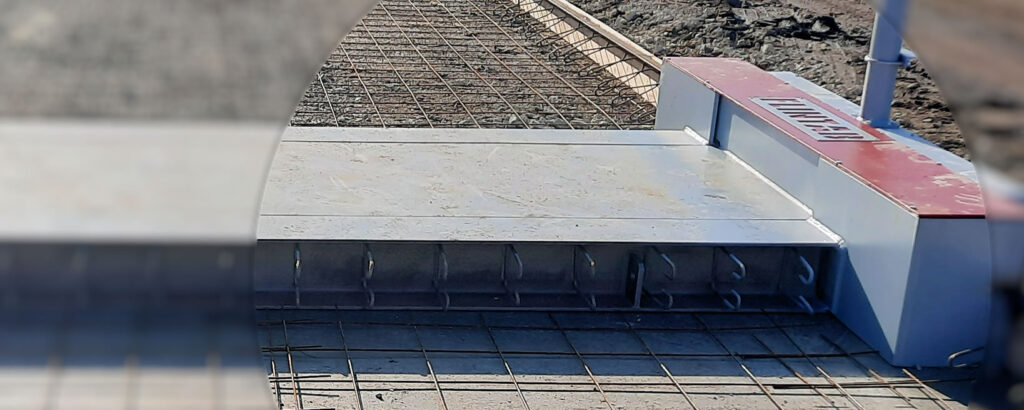

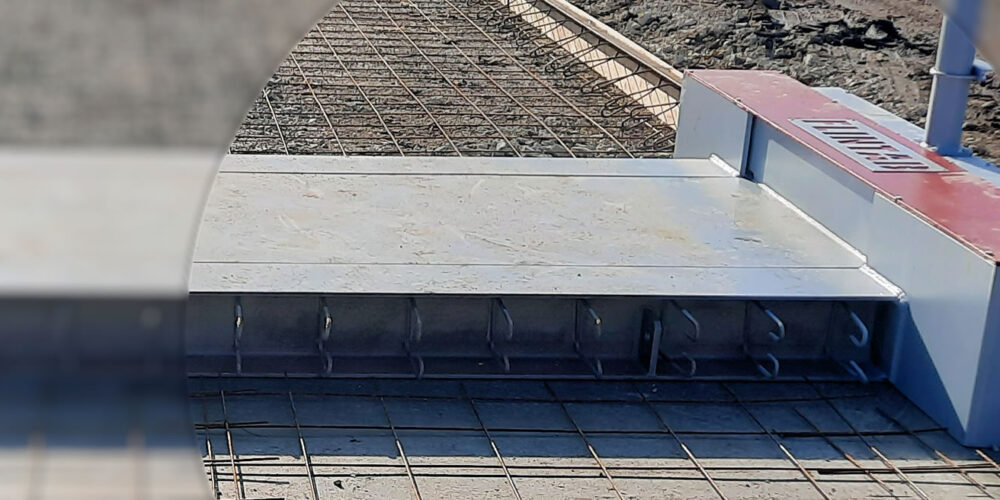

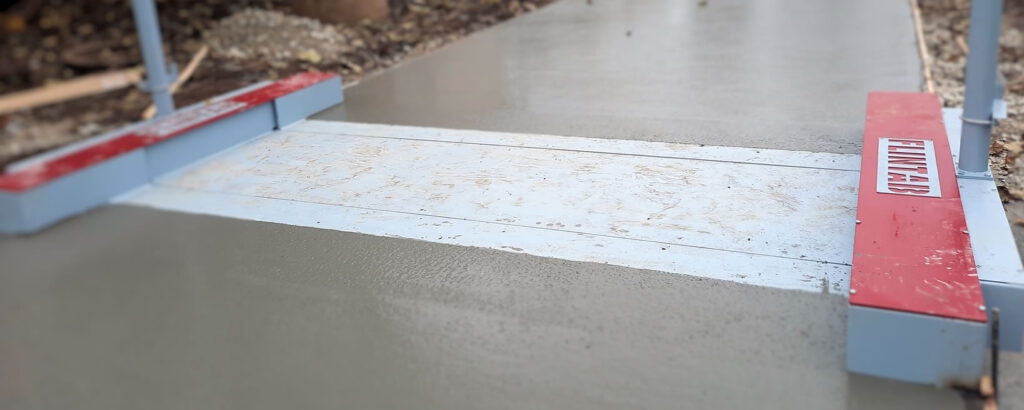

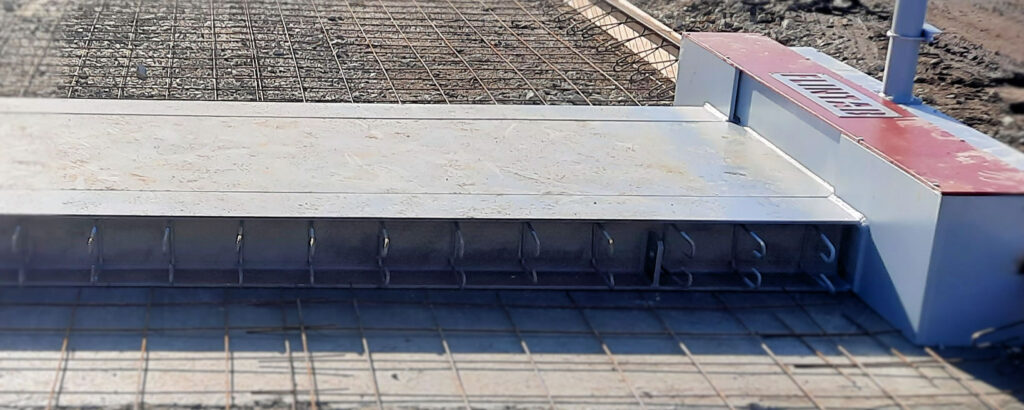

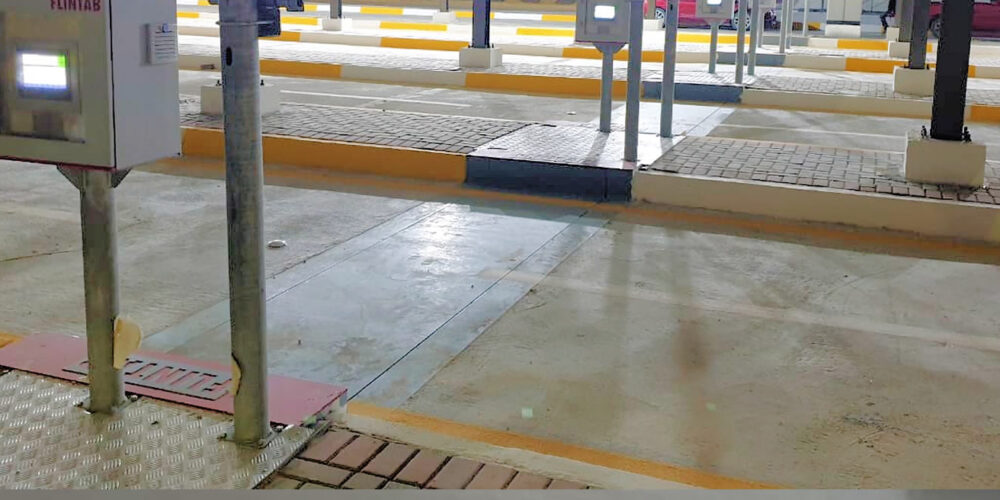

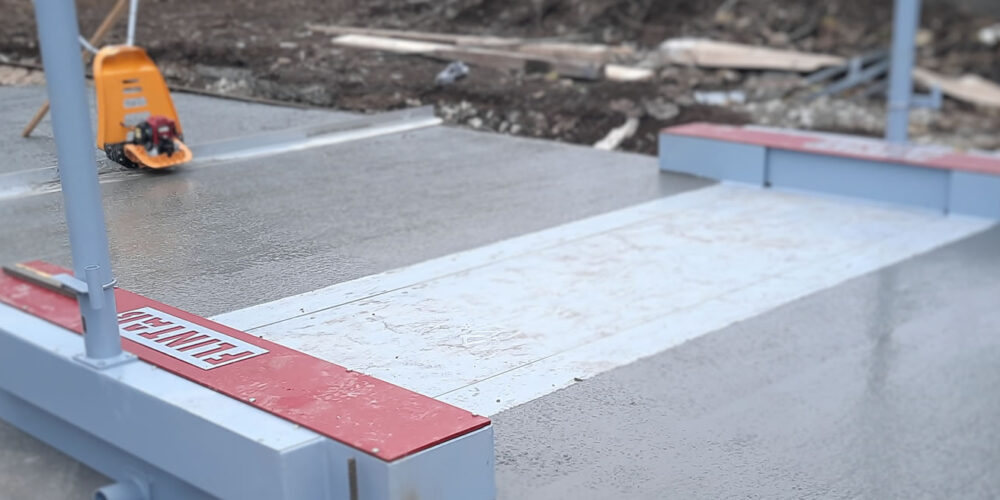

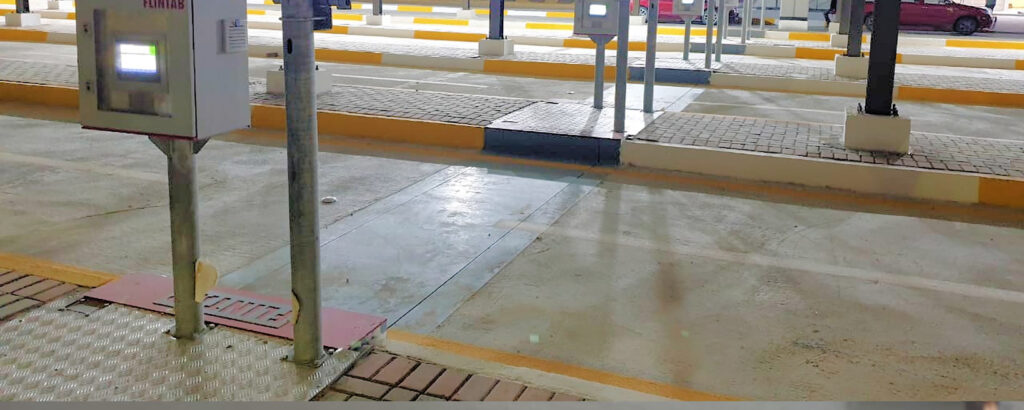

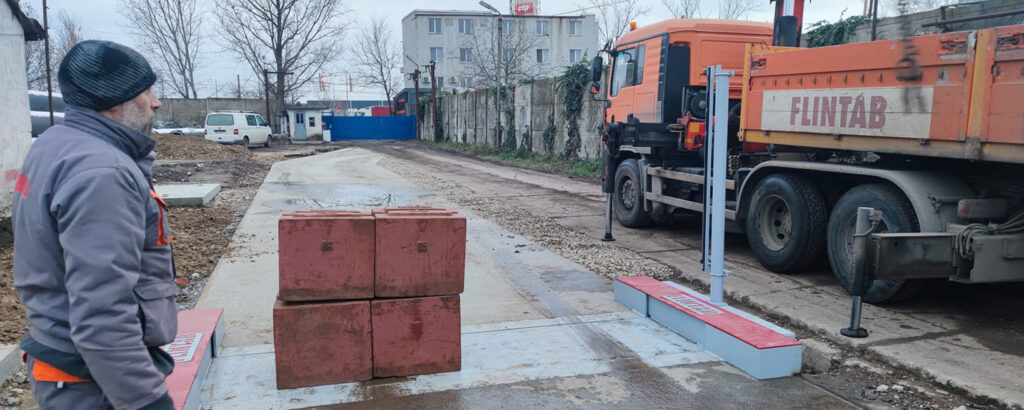

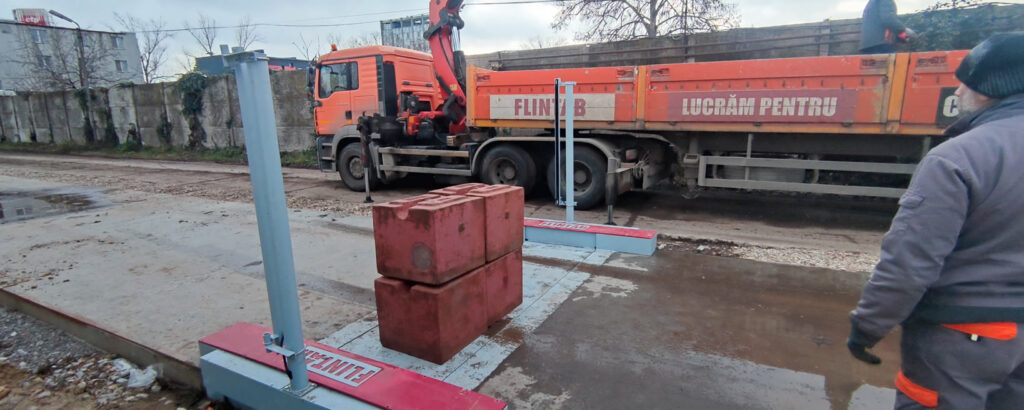

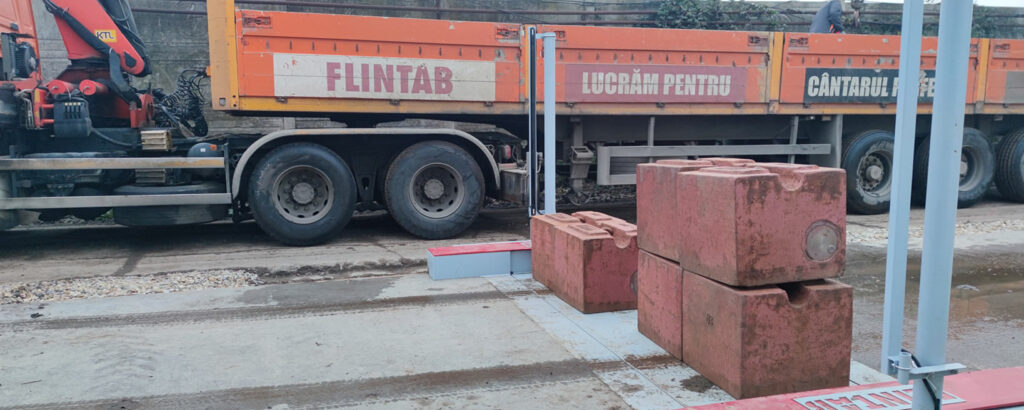

The installation is done by burying in the existing road structure for the case when upstream and downstream on a length of about 15-16m and width 3m is a perfectly flat concrete or asphalt surface. The weighing accuracy is given by this condition as well as by the driving mode of the vehicle (without braking on the scales or accelerations). The system is not used for tank trucks (fluids) knowing that while running the tank truck, it changes the center of gravity, leading to large weighing errors. Technical data:
- Weighing platform dimensions 0.9m (length) x 3.3m (width) x0.18m (depth)
- Capacity: maximum 20t / axle
- Number of axles weighed: unlimited
- Weighing accuracy: Dynamic (on the go) 0-6km / h +/- 1.5% ... + / - 2.0%
Note: The weighing accuracy of the vehicle depends on the flatness conditions at the installation site according to the FLINTAB specification.

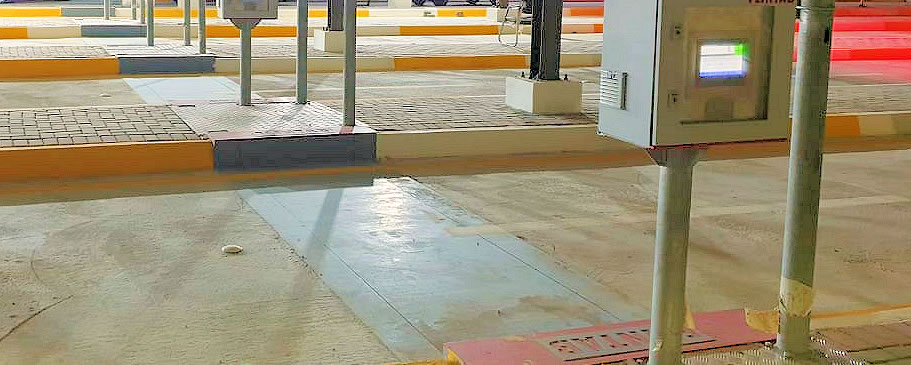

SYSTEM CONFIGURATION
The purpose of the product is to determine the mass in commercial transactions and is covered by Directive 2009/23 / EC. (repealing Directive 90/384 / EEC), transposed by H.G. 617/2003 for establishing the introduction conditions on the market and commissioning of weighing machines with non-automatic operation, republished, modified by H.G. 1302/2009. The only relevant way to use a road scale is to manage it easily and effectively weigh the data and allow it to be transferred to various other networked software applications.

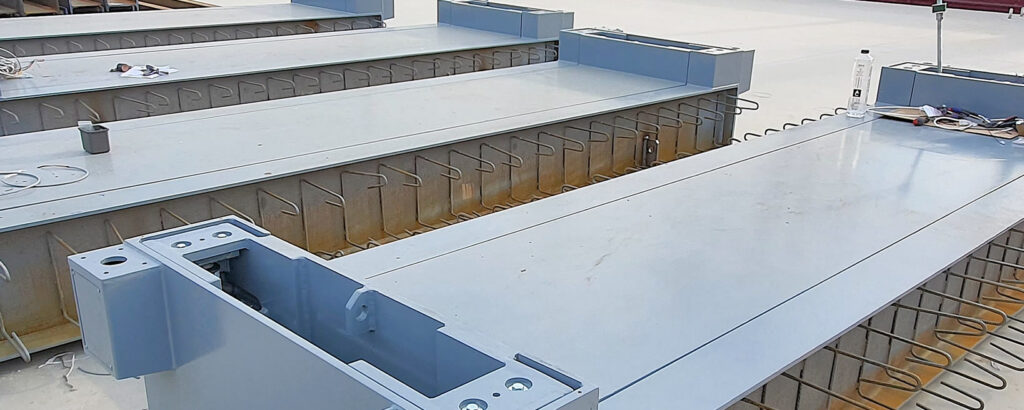

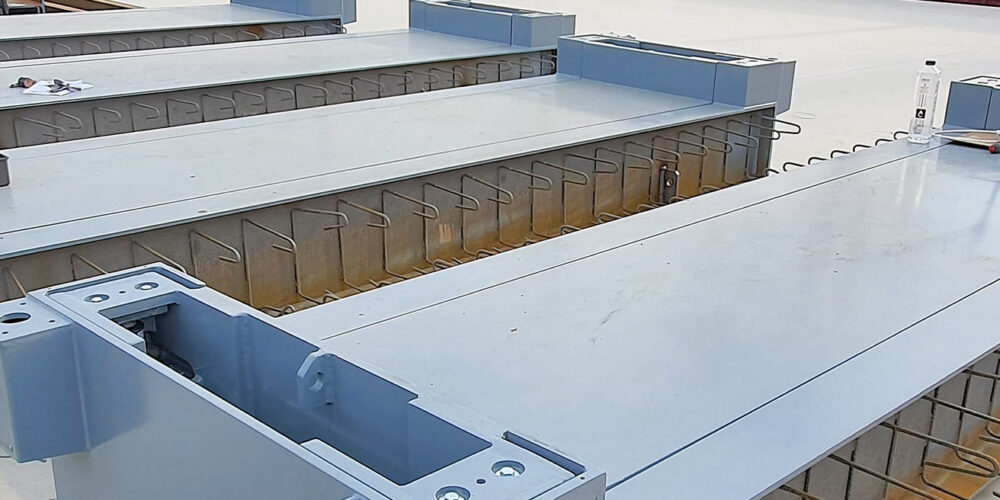

Metal construction OLC scale model AXA – Electronic components

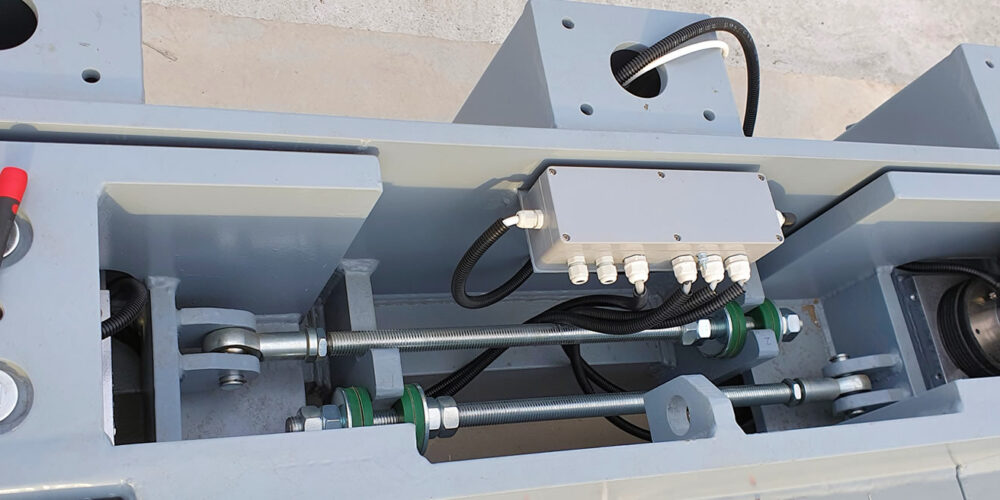

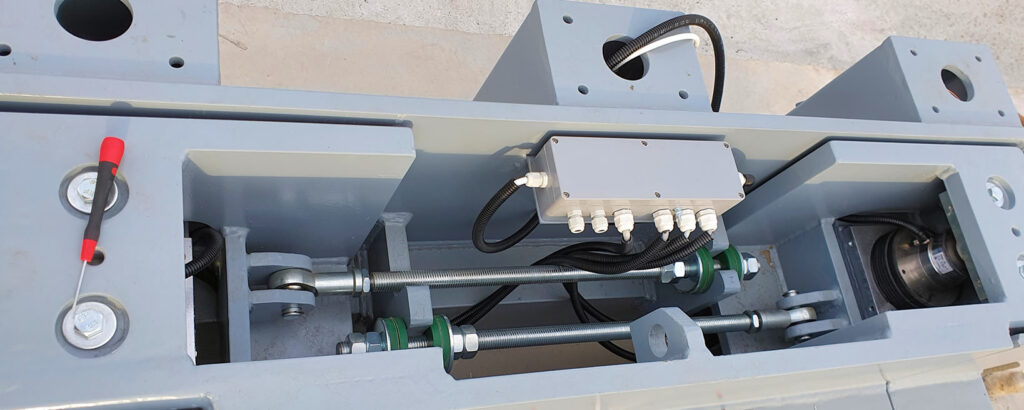

- FLINTEC Germany weighing cells type RC3-7.5t-C3 with surge protection
- Junction box with surge protection
- Copper mounting cable for mounting
- IT6000E digital weighing indicator
Services
- Installation and commissioning
- Installation and commissioning

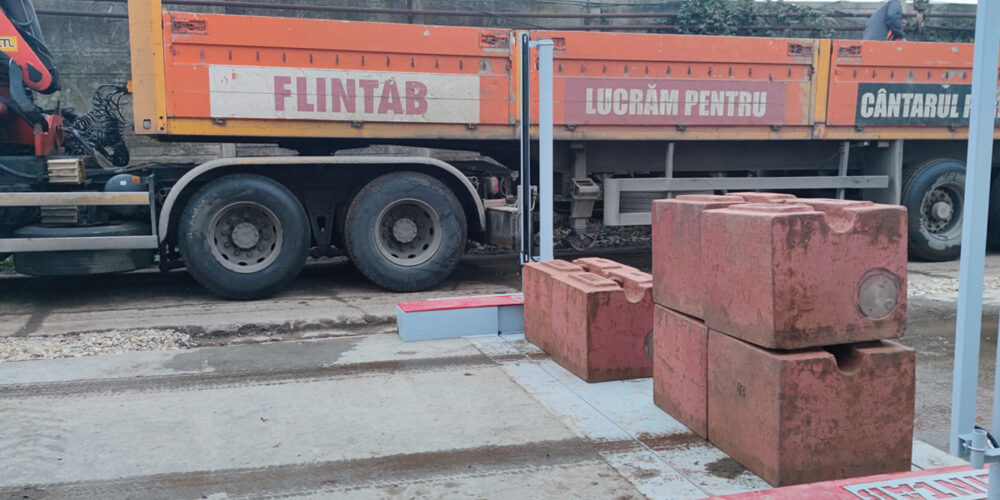

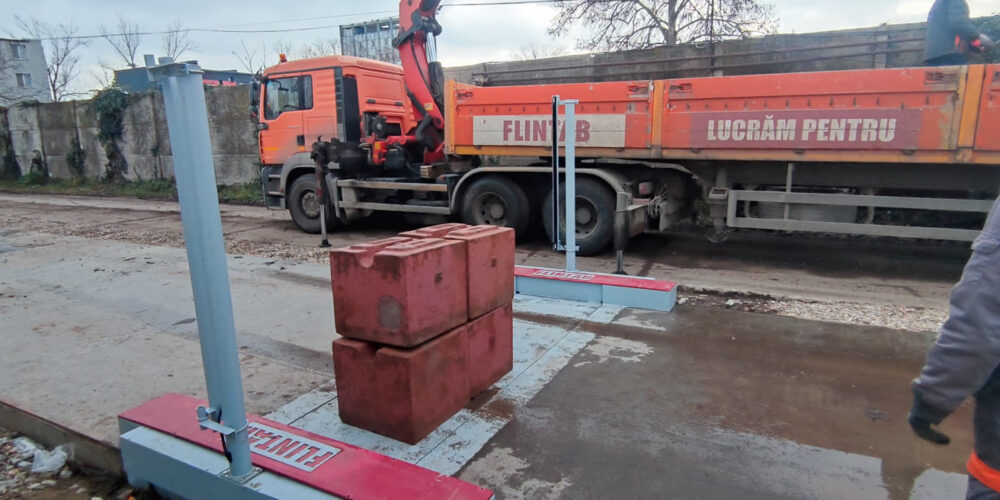

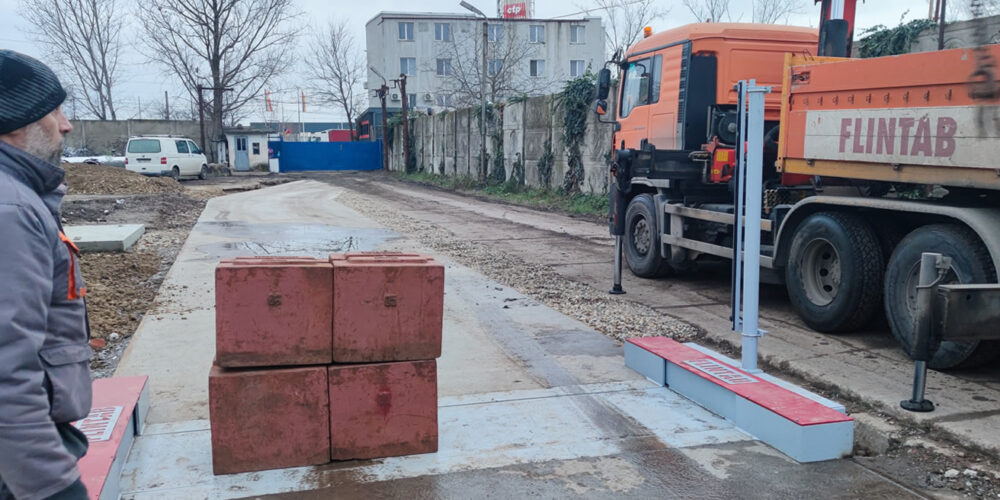

- Initial metrological verification and metrological documents
Exclusions from standard or optional supplies
- Foundation and ground installation according to the FLINTAB project
- Transport of scales from our own factory (Tecuci branch, Galati county) and crane
- Operator's cab near the scale
Warranty
- 2 years
Post-warranty service
- Throughout the life of the product: spare parts insurance, service interventions, service contracts, periodic metrological checks or after repair / relocation
Delivery time
- 2-3 weeks

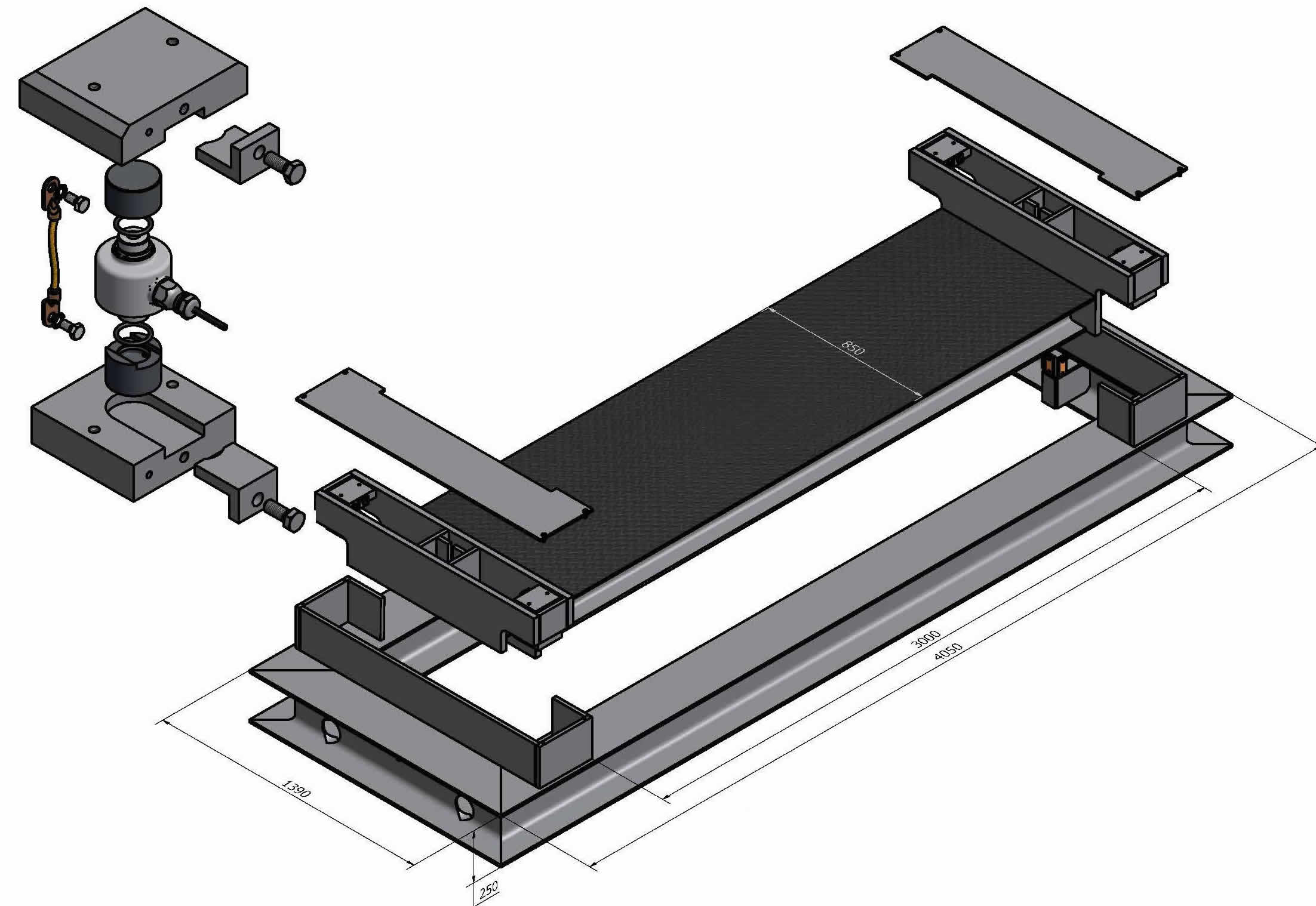

ASSEMBLY SCHEME
IT6000E SysTec Germany

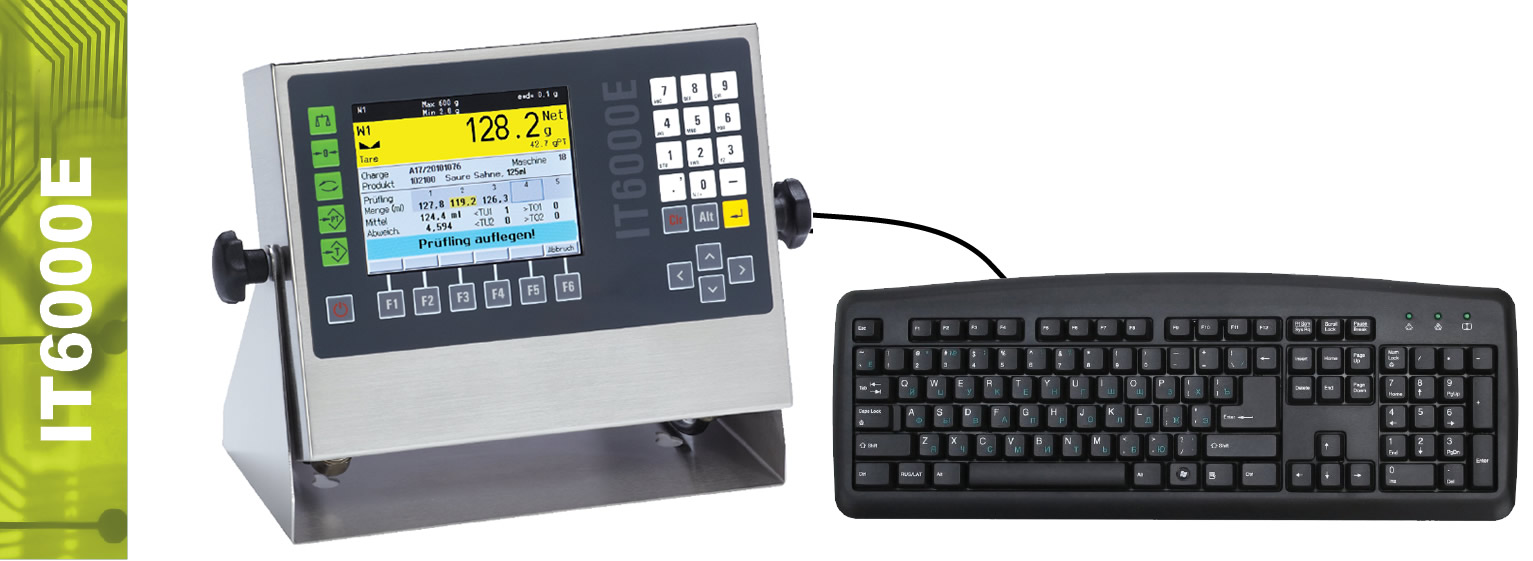

IT6000E SysTec Germany is a microcomputer and a PC keyboard attached to this indicator, any truck data can be entered and report management.
Serial interfaces
Up to two selectable serial interfaces: RS232, 20mA CL (passive), RS422 or RS485 for printers, precise scales, remote displays, card readers, etc.
Parallel and analog inputs / outputs
Up to 4 optoisolated inputs and outputs, 24Vdc, or external relays / modules with transistors (64 inputs, 64 outputs max.). 15-bit internal output, external mode for up to 4 analog inputs / optional outputs.
Ethernet interface
10 / 100BASE-T Ethernet interface with integrated web server, optional WLAN.
USB
USB 2.0 interface with optional IP65 connector for computer keyboard, scanner or USB memory stick.
