The BELTEC weighing system is the ideal solution for continuous weighing and totalizing of granular products transported on a conveyor belt. Built with heavy-duty robustness and equipped with high-precision technology, BELTEC utilizes an innovative multi-roller weighing system.
Features and Benefits:
- Superior Accuracy and Stability:
Thanks to its multi-idler weighing design, BELTEC delivers enhanced precision and stability by continuously weighing over an extended belt length and for prolonged periods. - Flexibility and Adaptability:

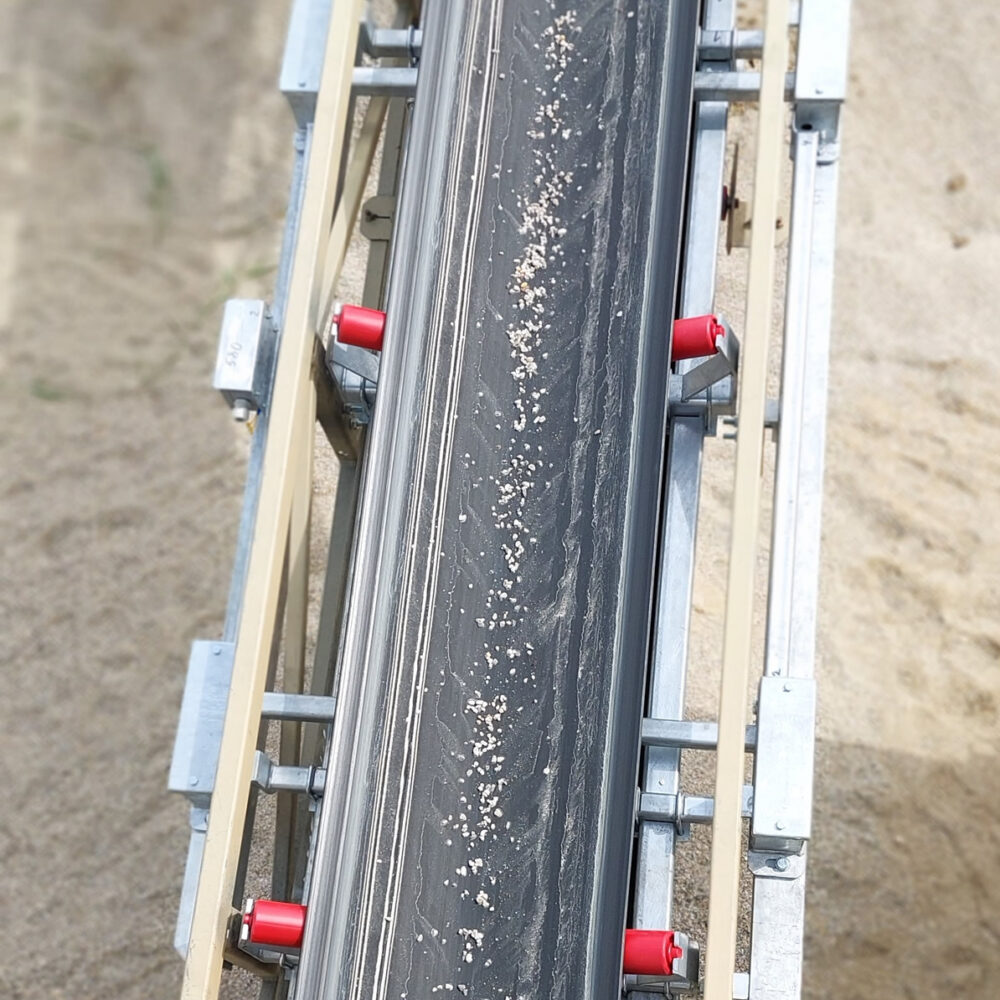

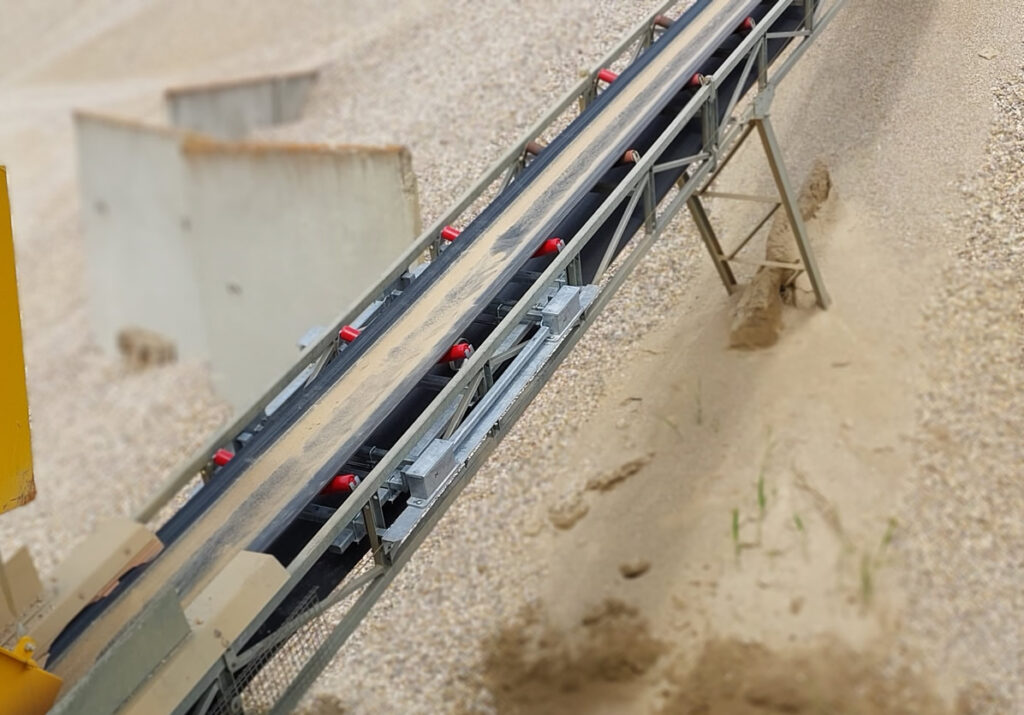

It can be installed on any type of conveyor belt with an incline between 0 and 30 degrees, ensuring easy integration into a wide range of industrial applications. - Efficiency and Performance:
Typically configured to weigh over an optimized belt length of approximately 2 meters, BELTEC ensures accuracy better than 1% and excellent measurement repeatability.
Quick and Easy Installation:
- This advanced system can be installed in a single day—maximum 8 hours—minimizing downtime and ensuring rapid commissioning of the production line.
Ideal Applications:
- Chemical and materials processing industries
- Agricultural and agri-food industries
- Industrial transport and handling processes
With BELTEC, every stage of the production process benefits from precise weighing control and maximum efficiency in conveyor belt operations.
- Dynamic accuracy: +/- 0,5..1,0%
- Flow: 250t/h
- Belt speed: 0,3..4m/s (20..240m/min)
- Relative humidity: 90%
- Operating temperature: -30..+60°C
- Conveyor tilt angle 0 ~ 30 degrees
- Exceptionally accurate
- Fast
- Robust
- Compact
- Easy to install and operate

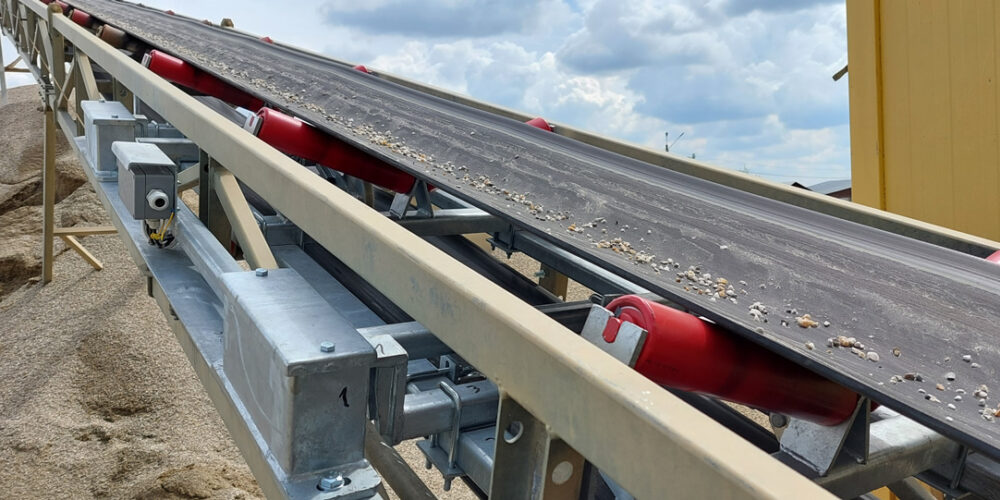

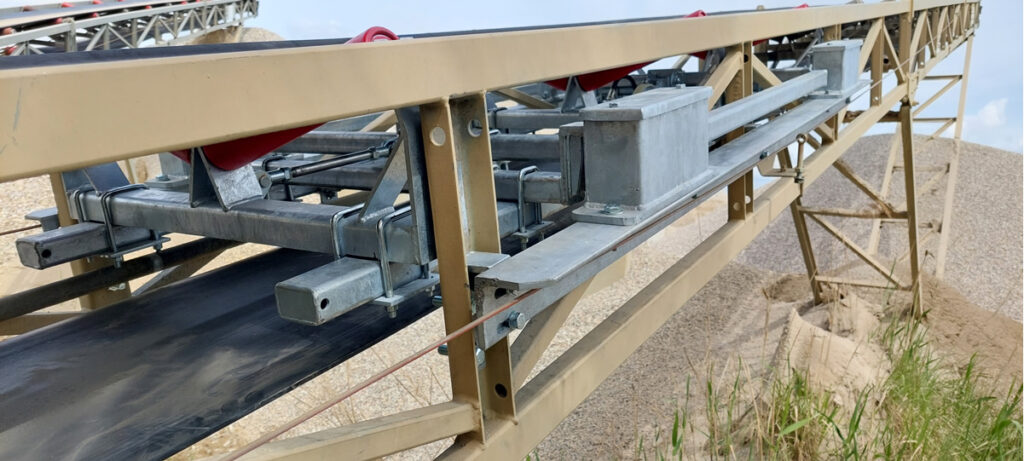

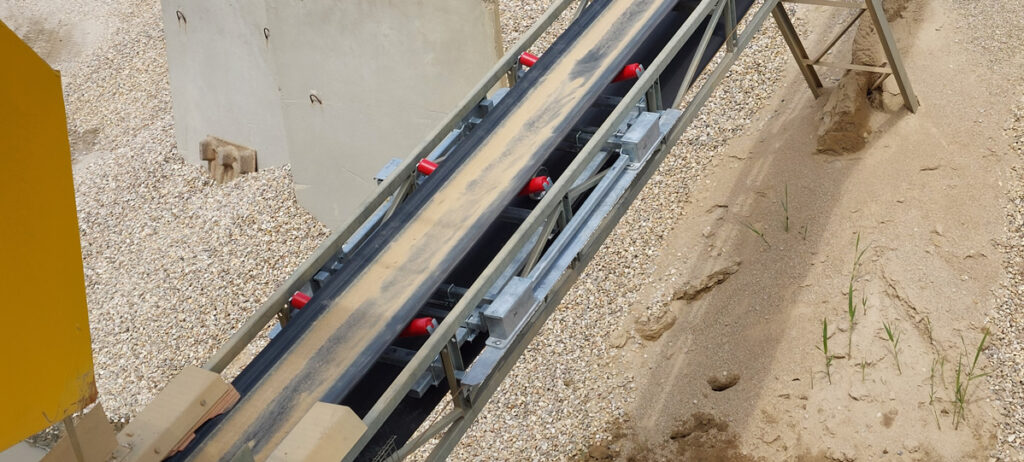

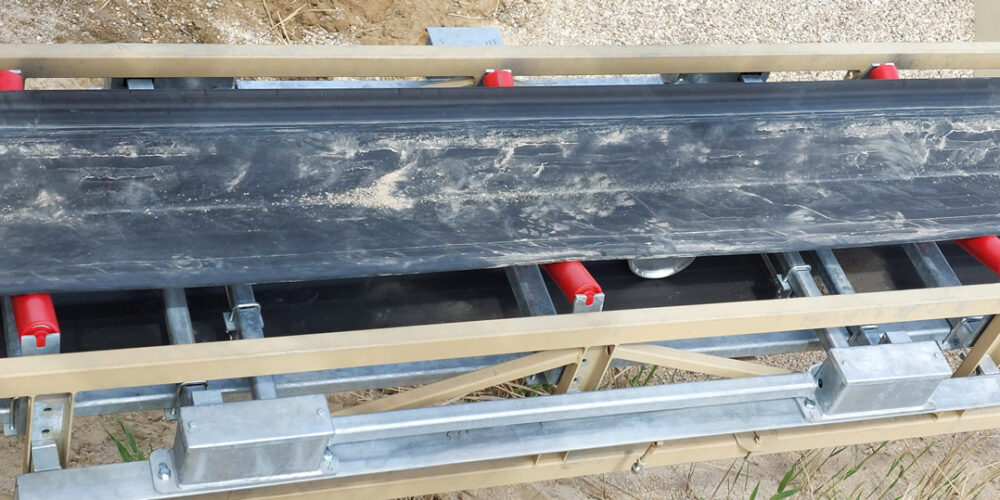

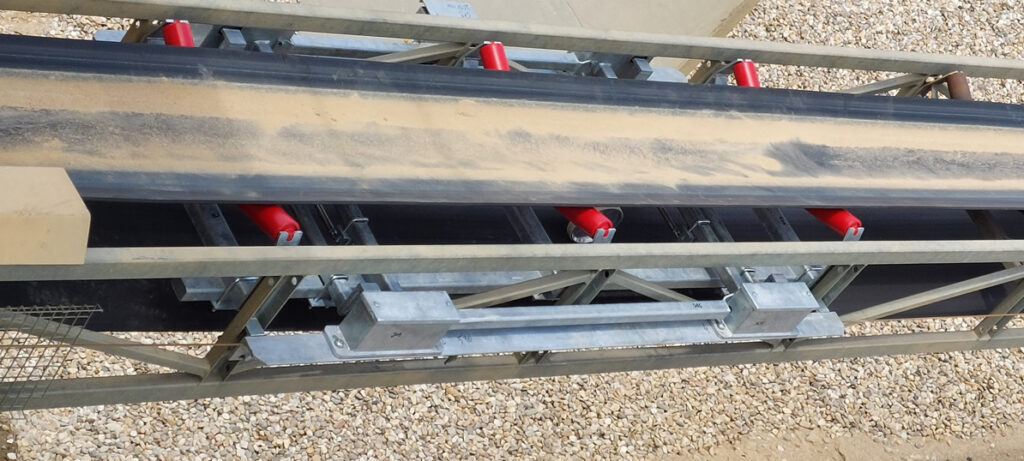

BELTEC Weighing System Configuration

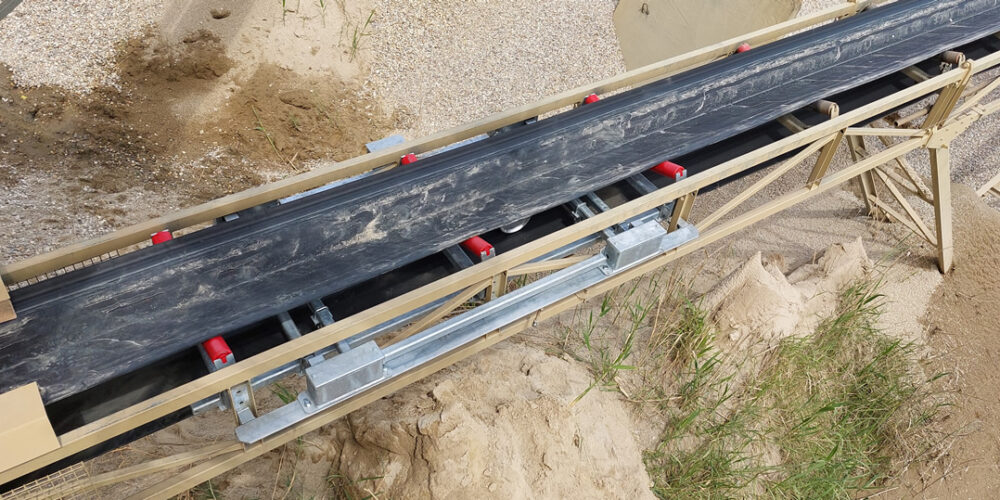

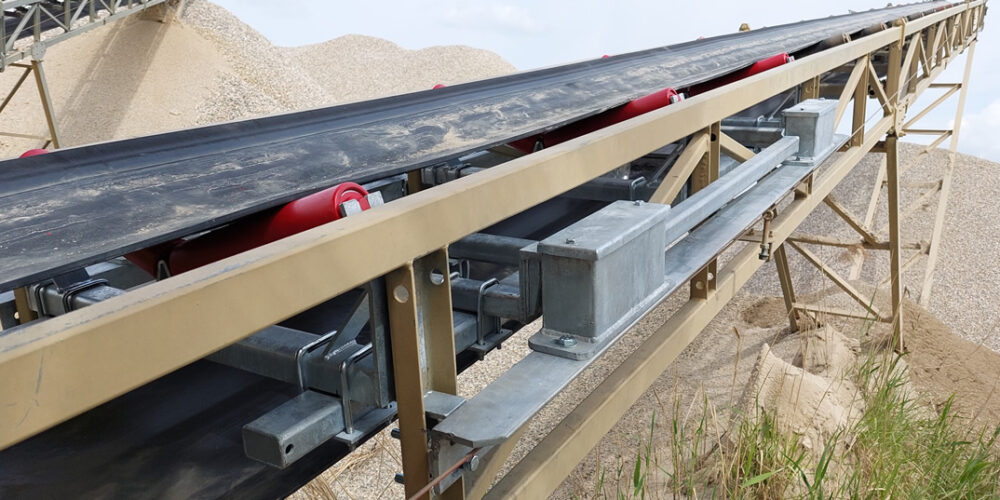

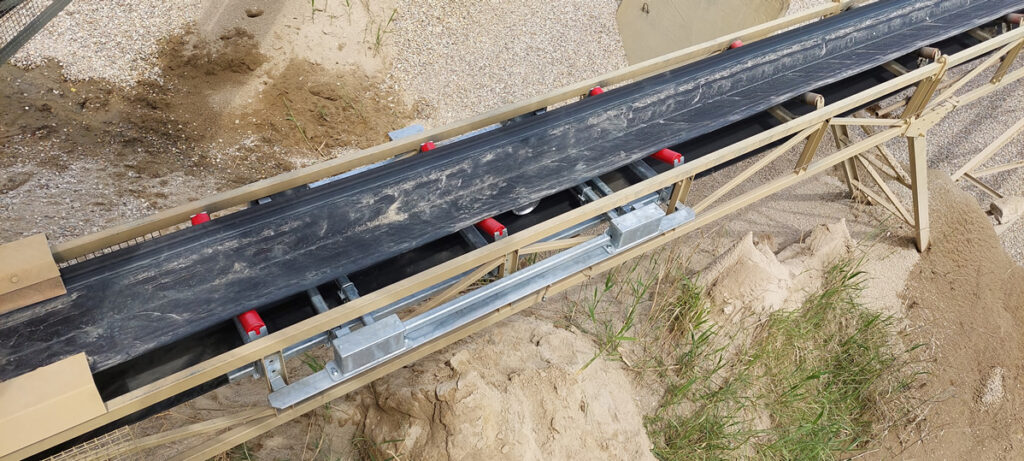

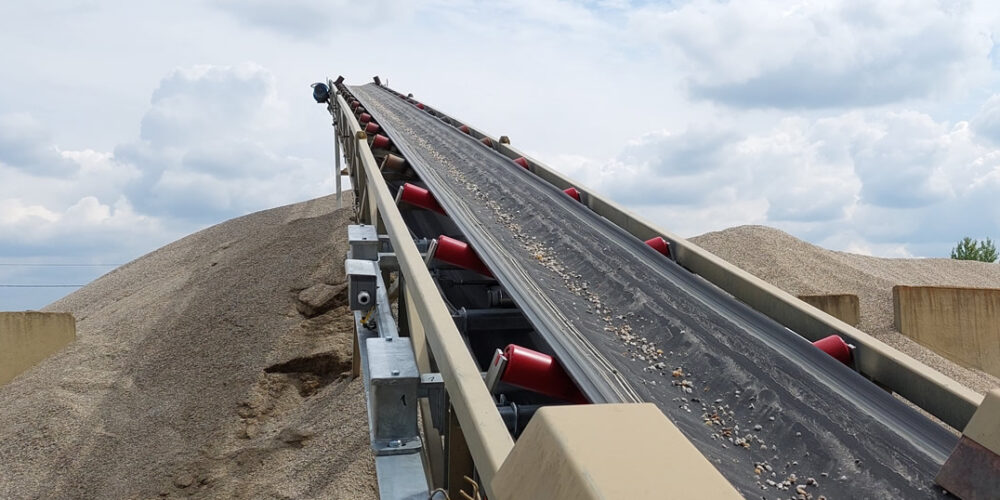

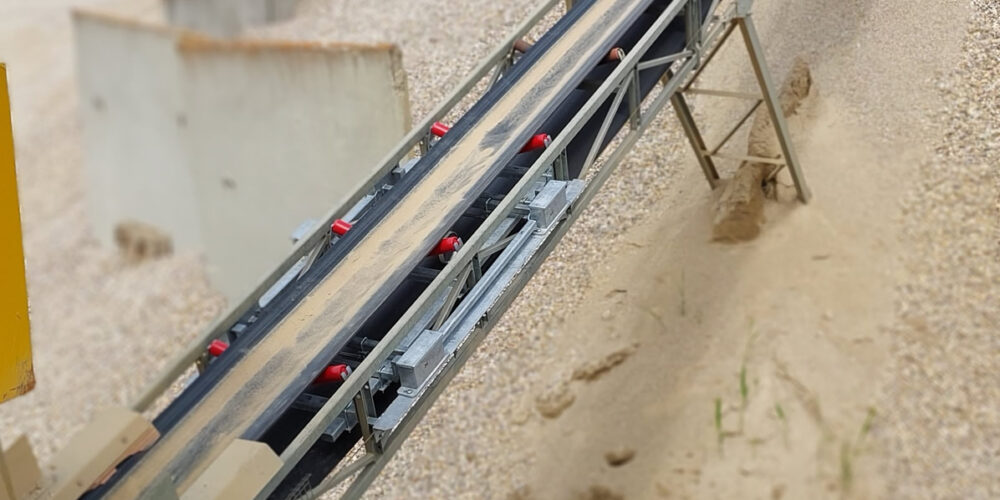

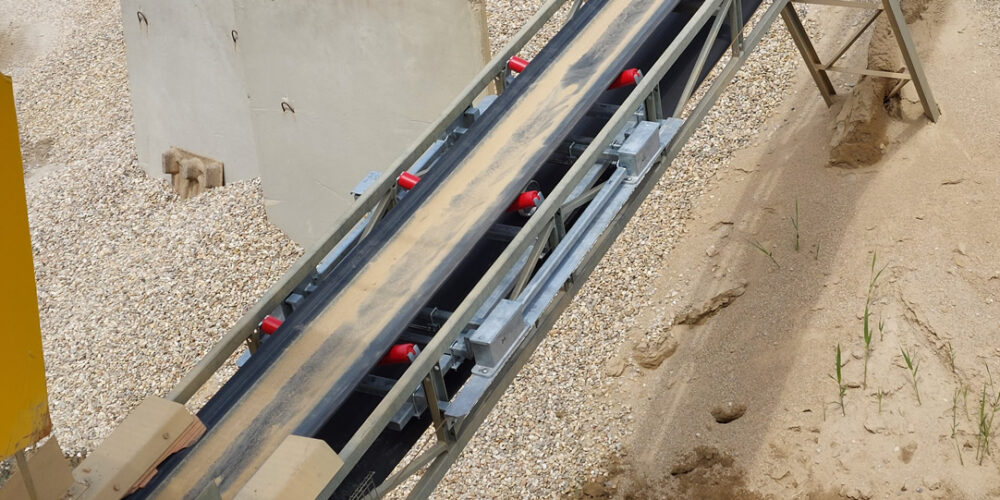

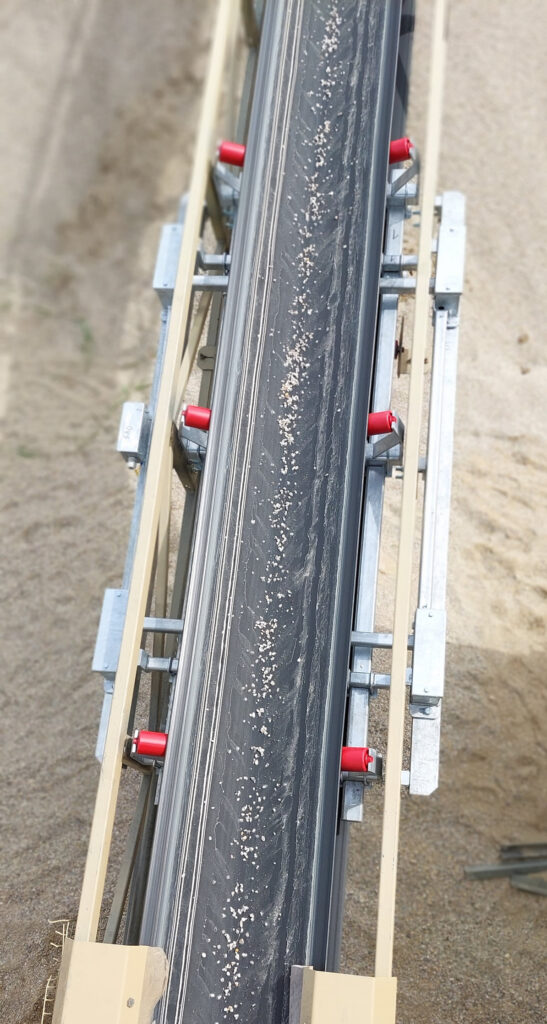

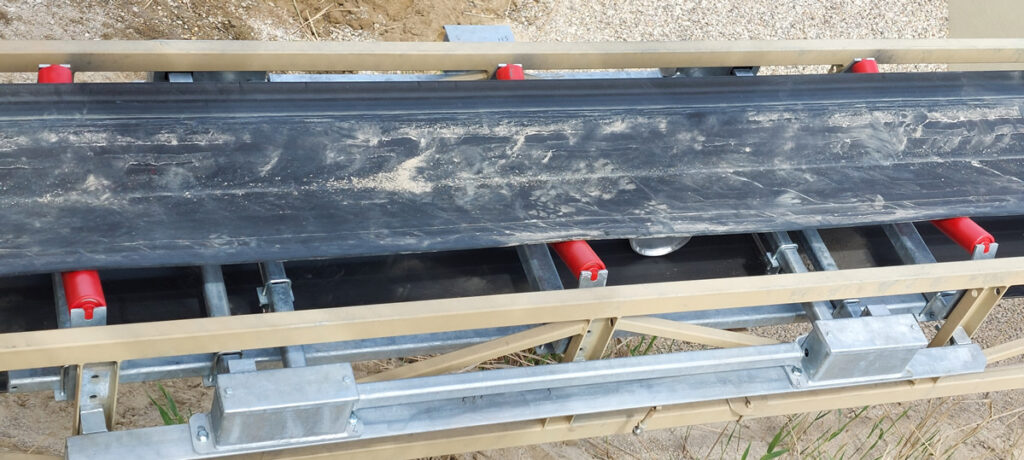

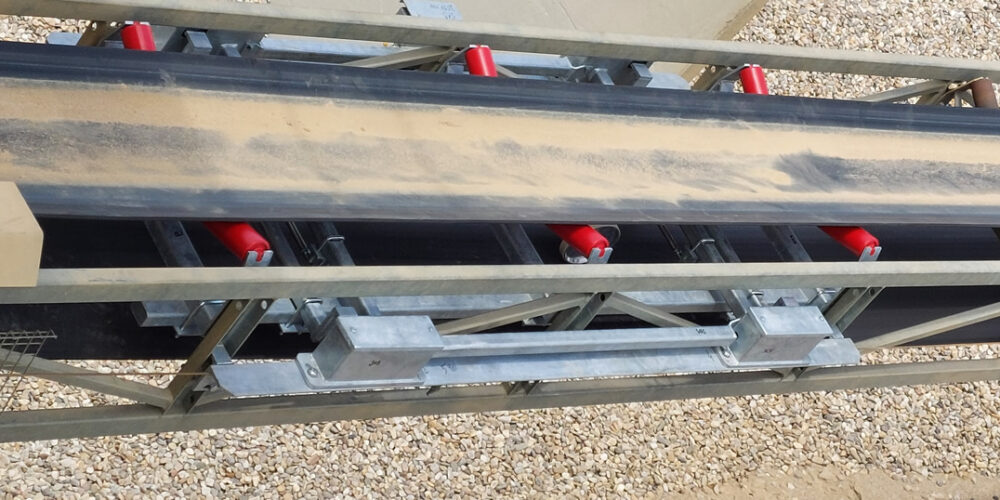

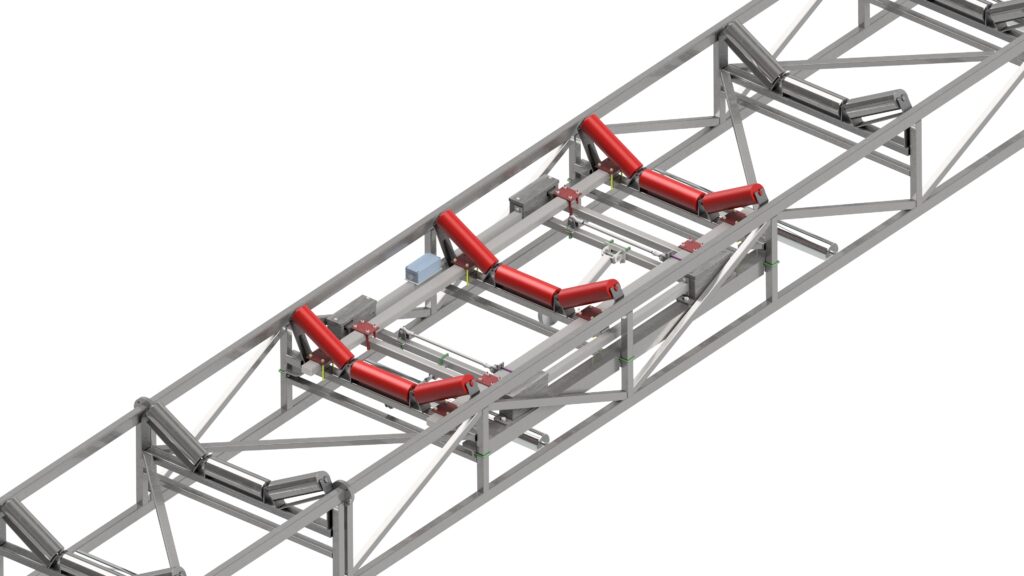

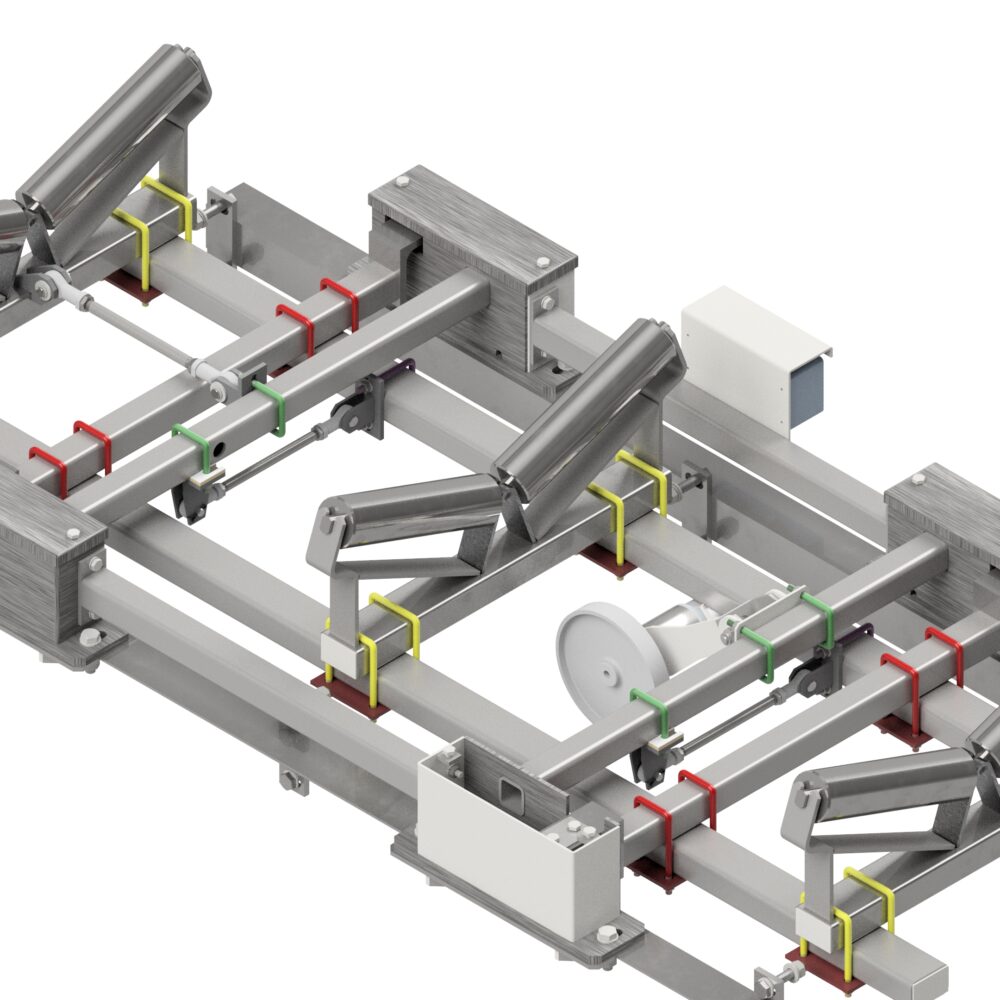

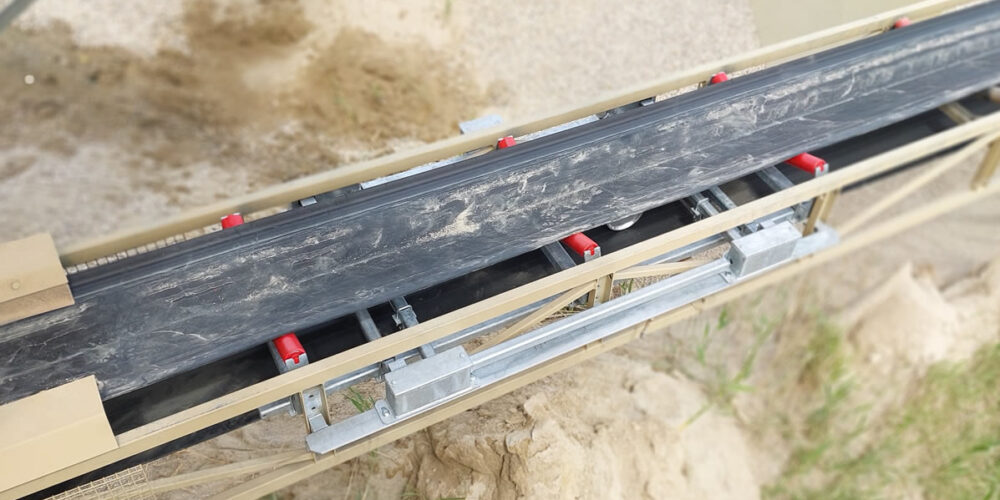

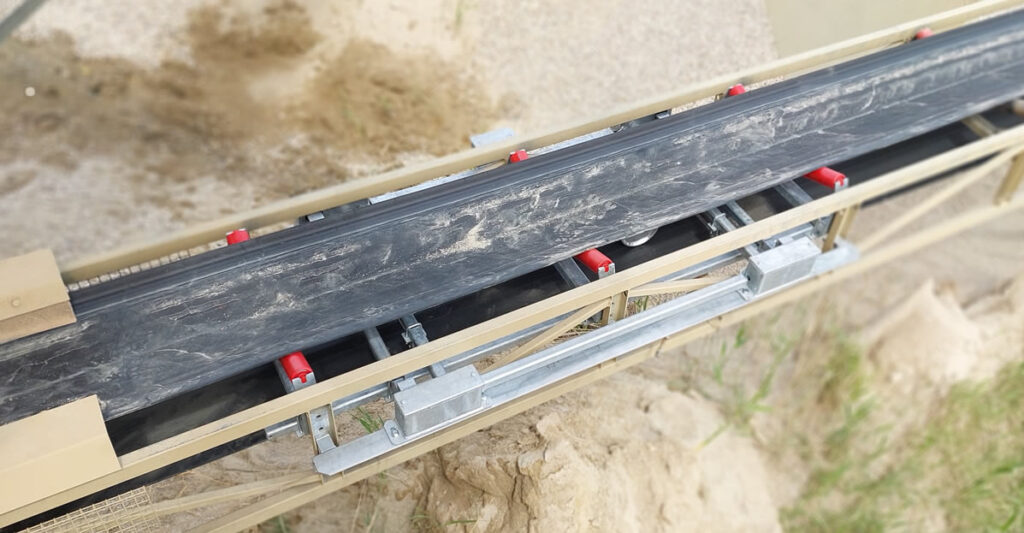

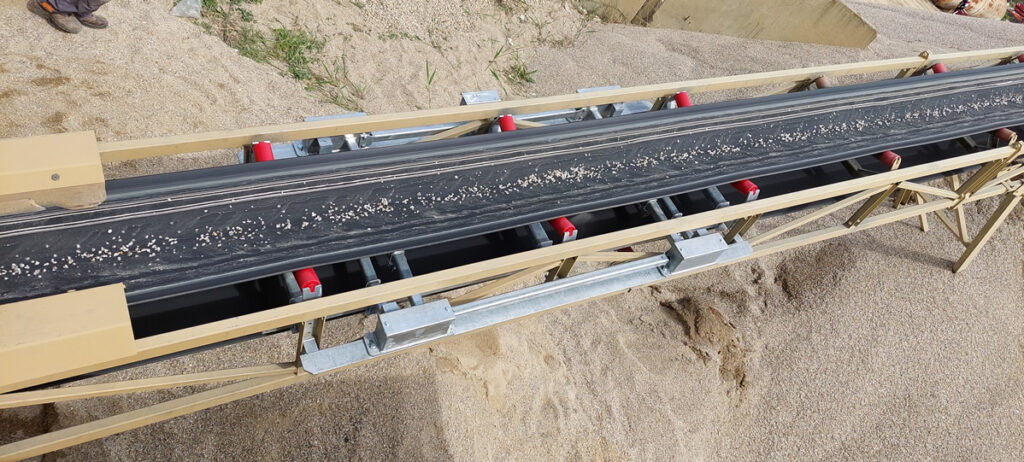

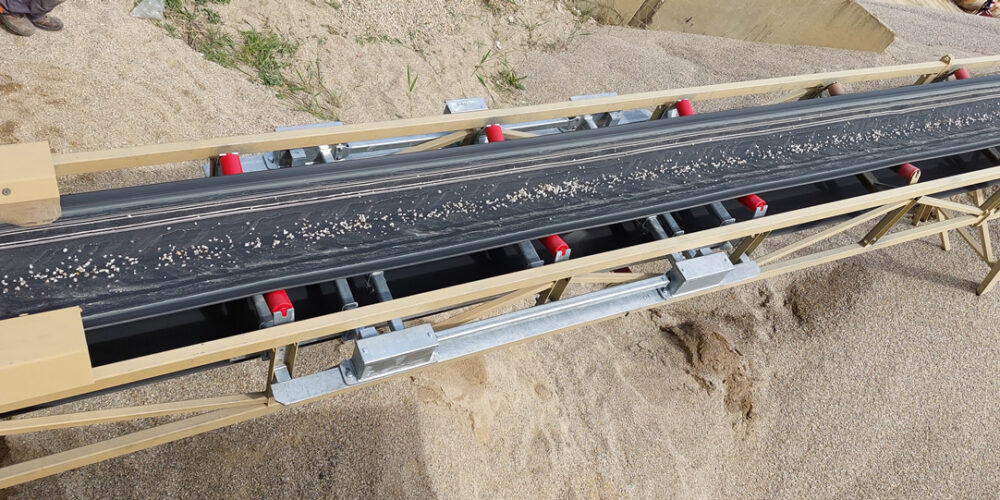

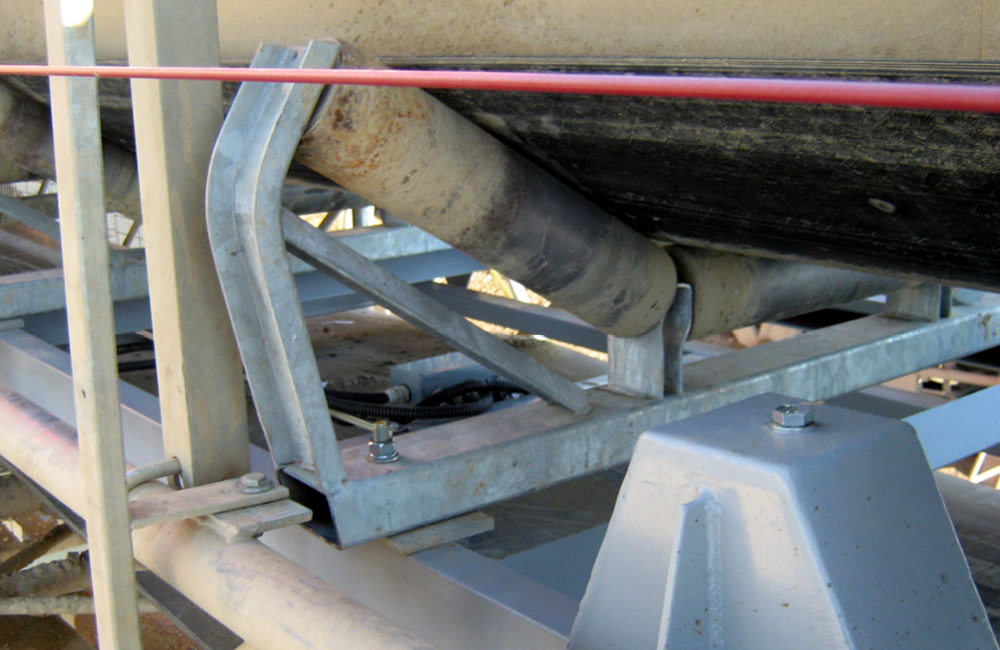

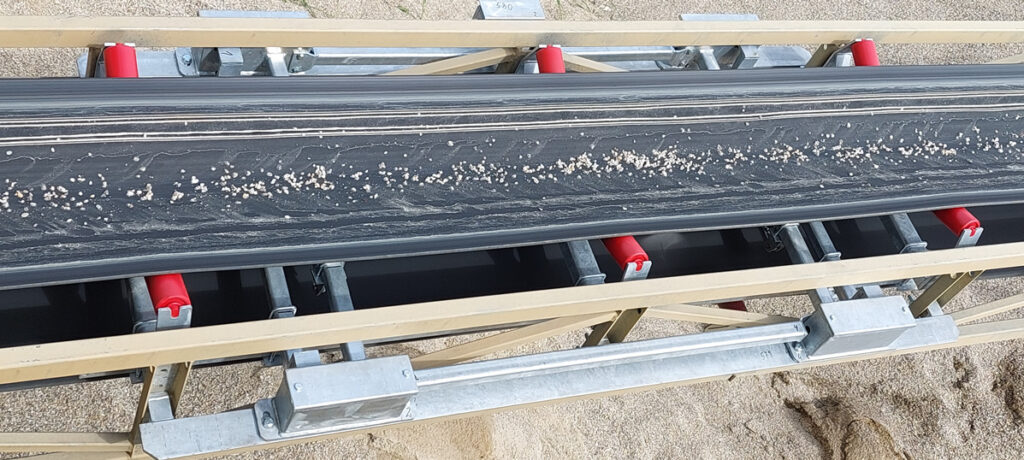

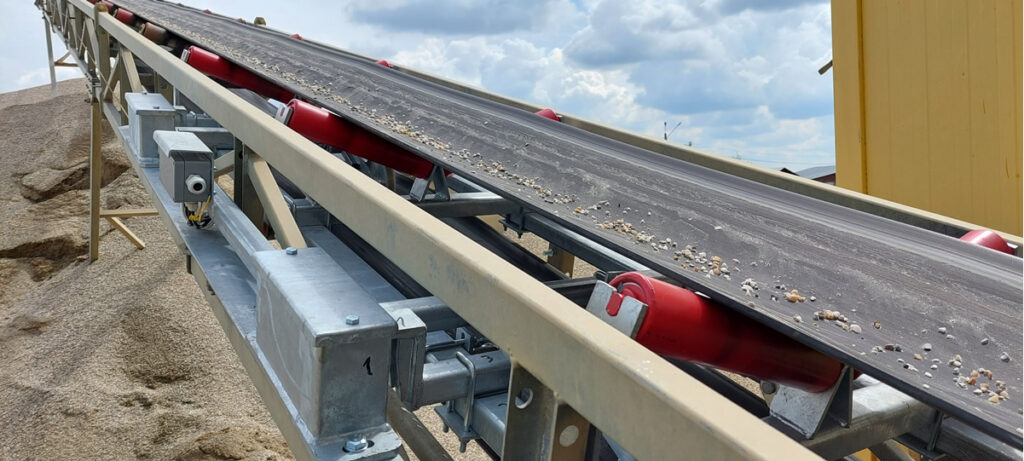

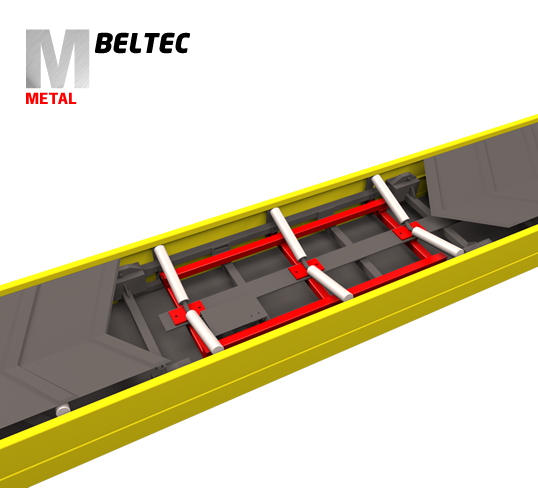

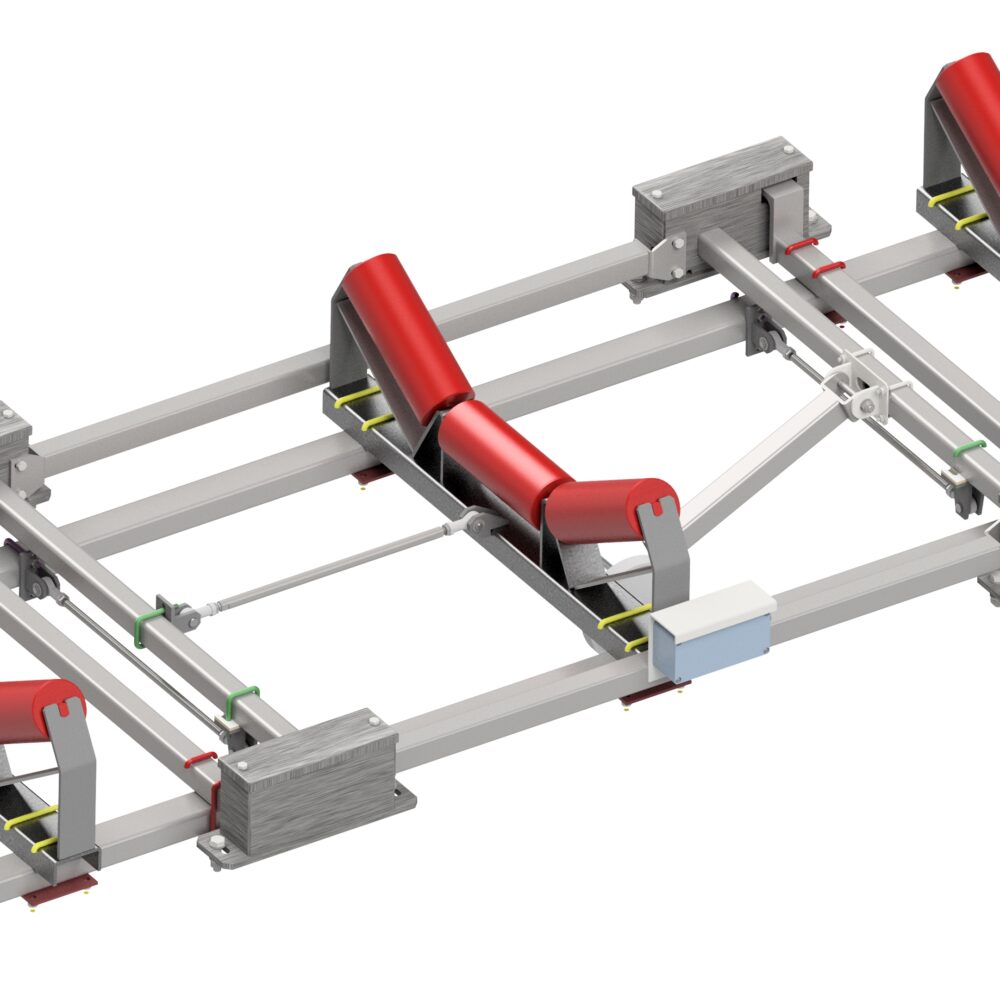

The BELTEC system is designed for precise weighing of material transported on a conveyor belt. Typically, the FLINTAB BELTEC system has an active length covering 3 conveyor roller sets. The standard configuration includes a highly reliable scale, equipped with premium components for performance and durability in demanding industrial environments.
Main Components:

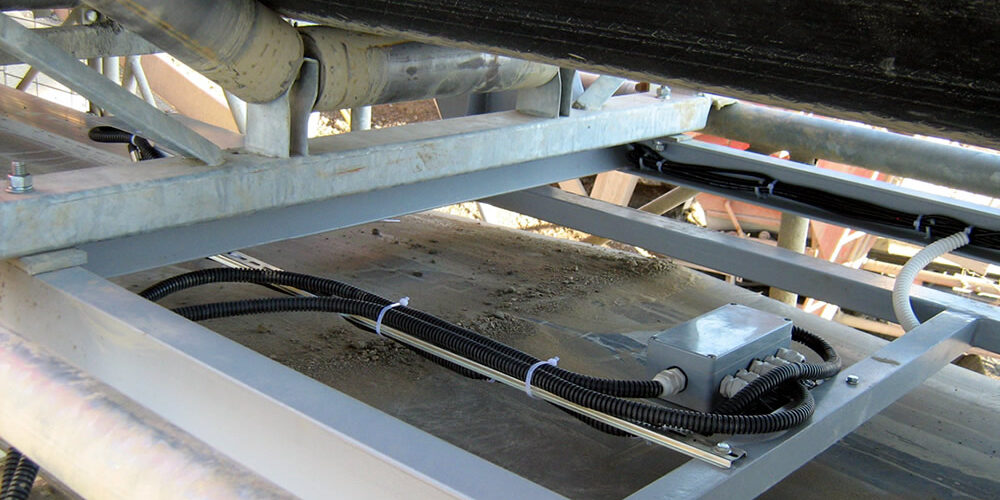

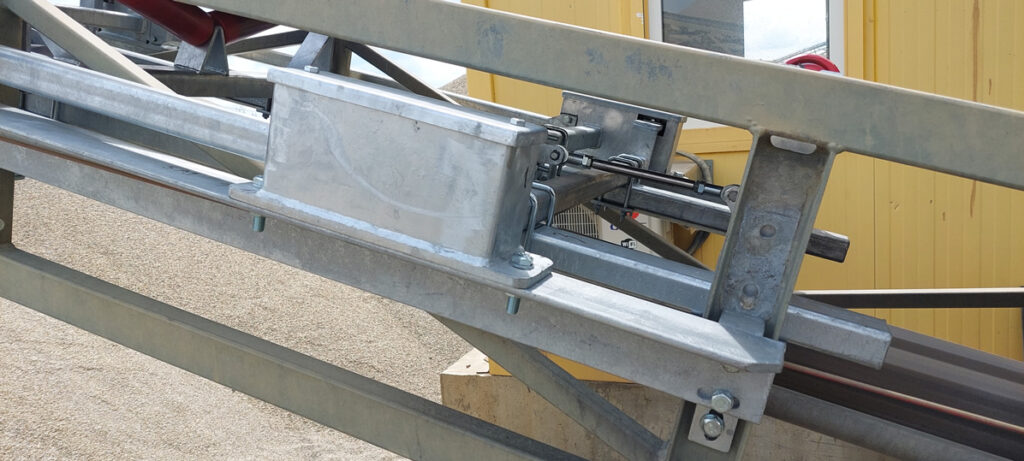

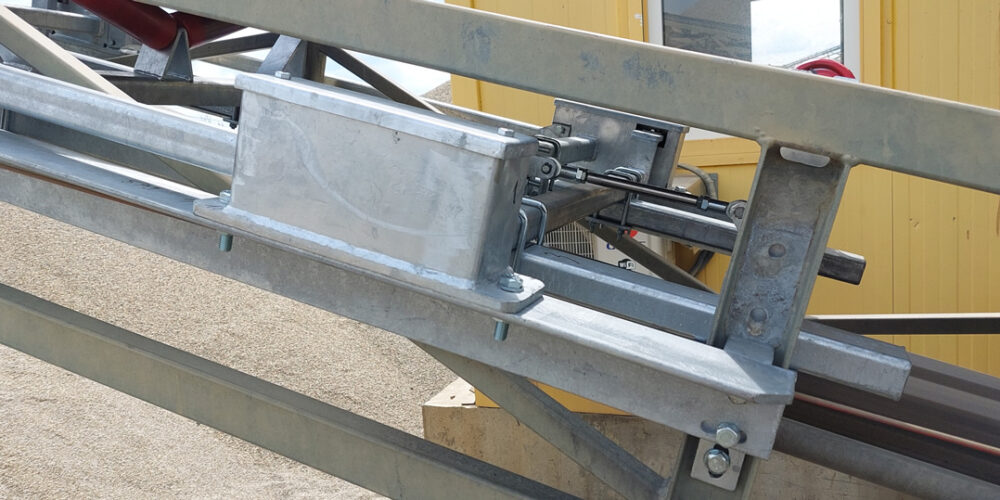

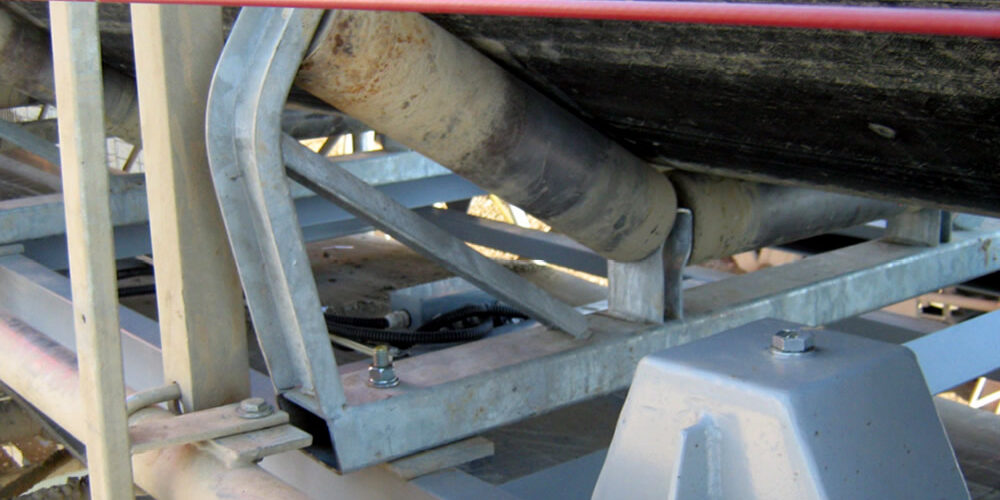

- Stainless Steel Load Cells – FLINTEC, Germany:
Rated IP68/IP69 for maximum resistance to dust and moisture. These load cells deliver high accuracy and are critical to the system’s overall precision. - Weighing Frame/Roller Supports:

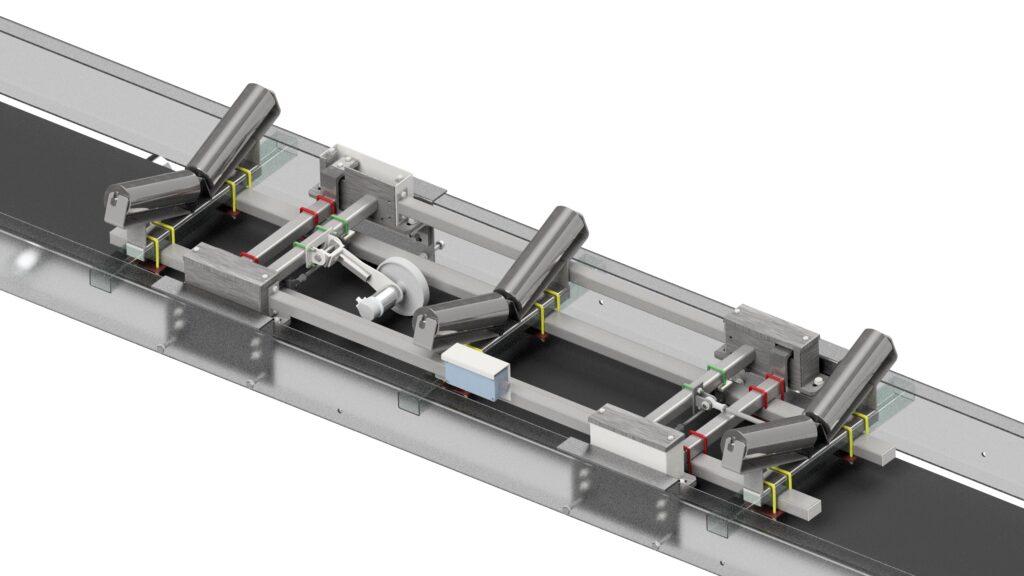

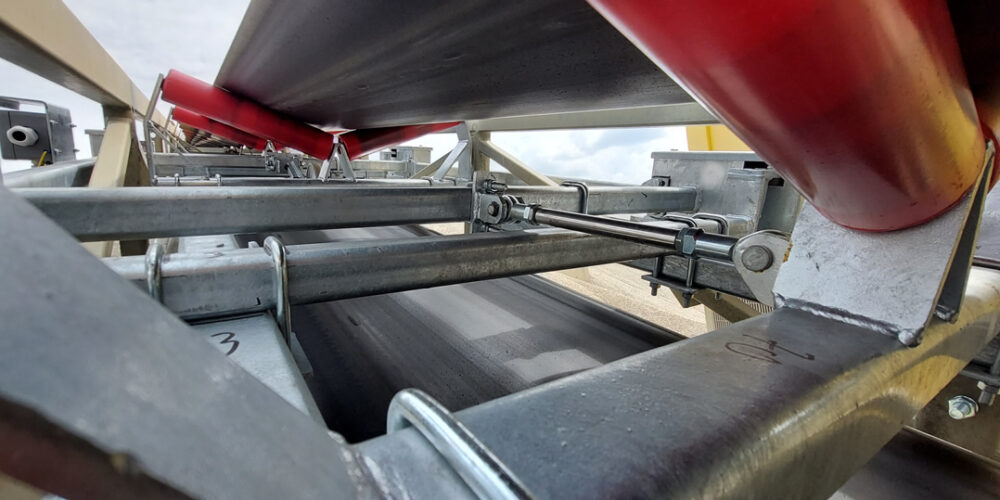

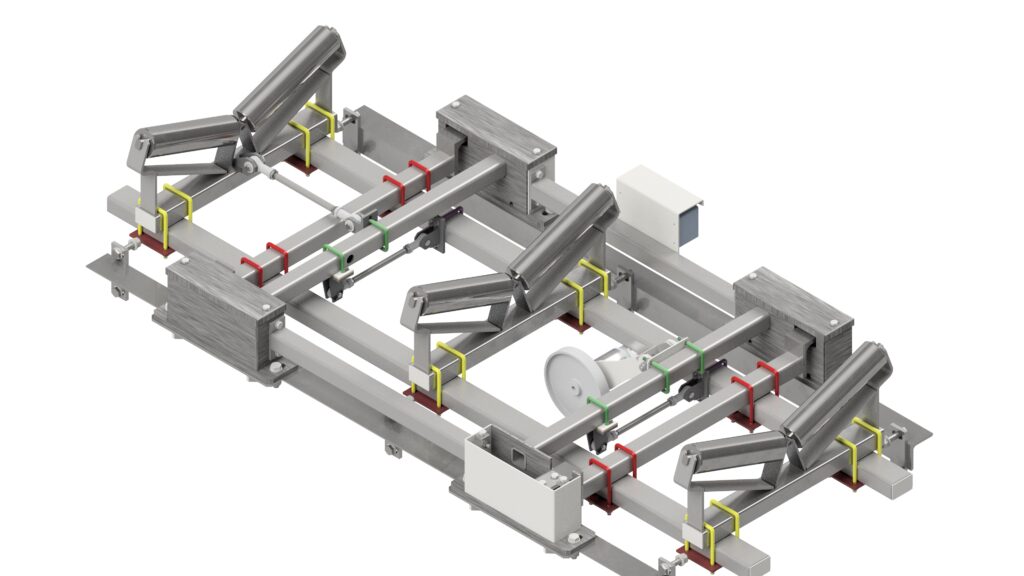

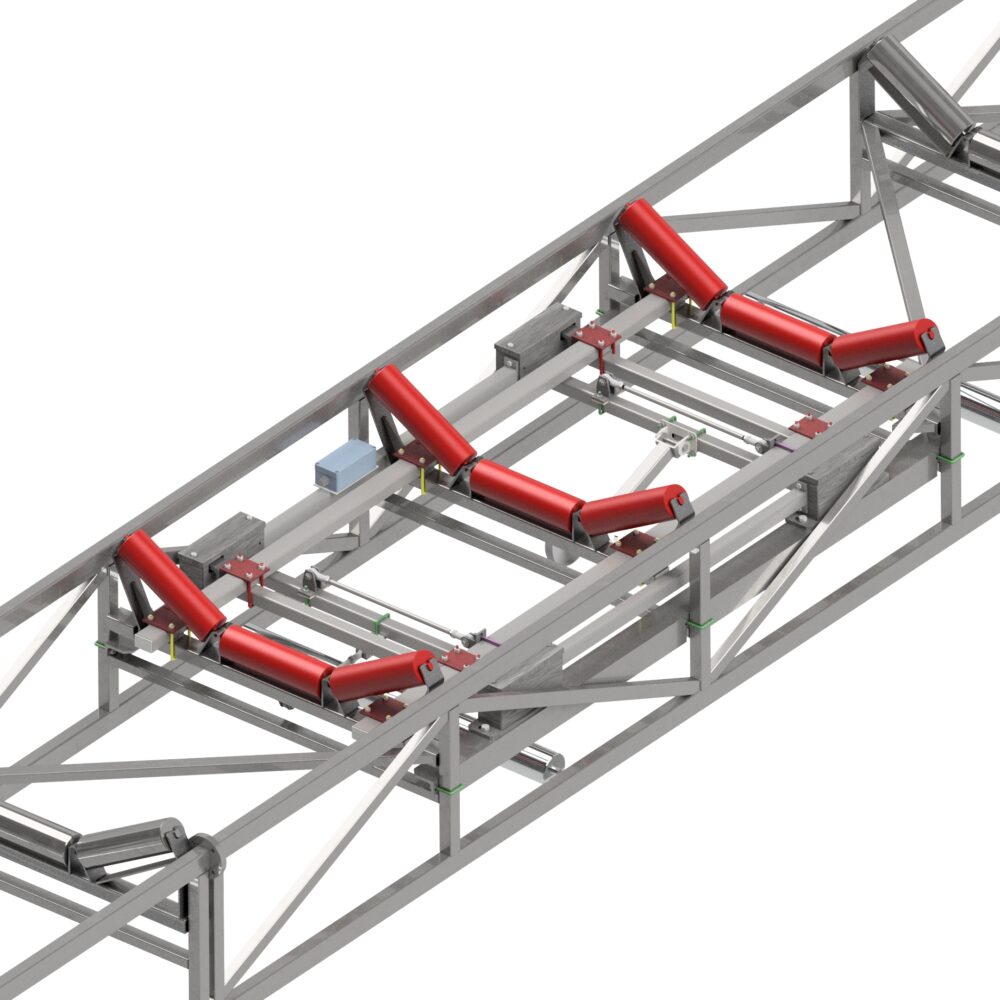

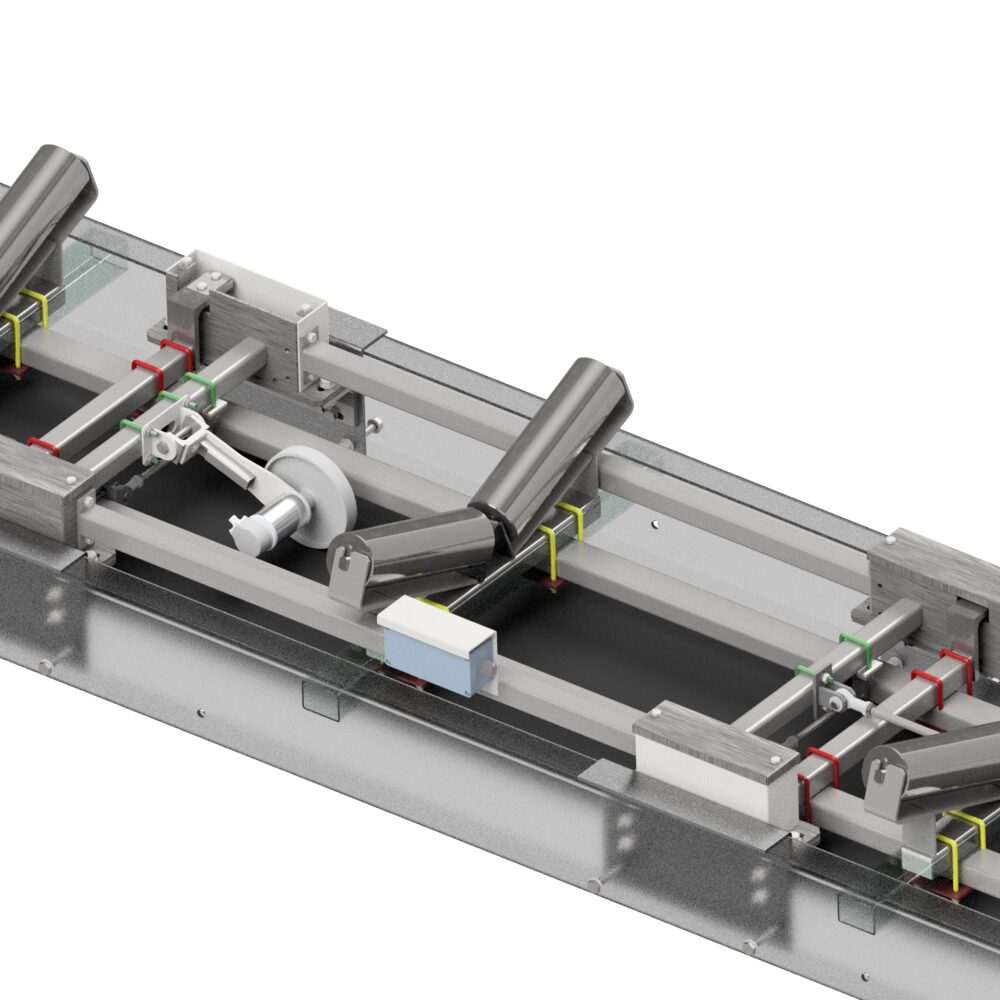

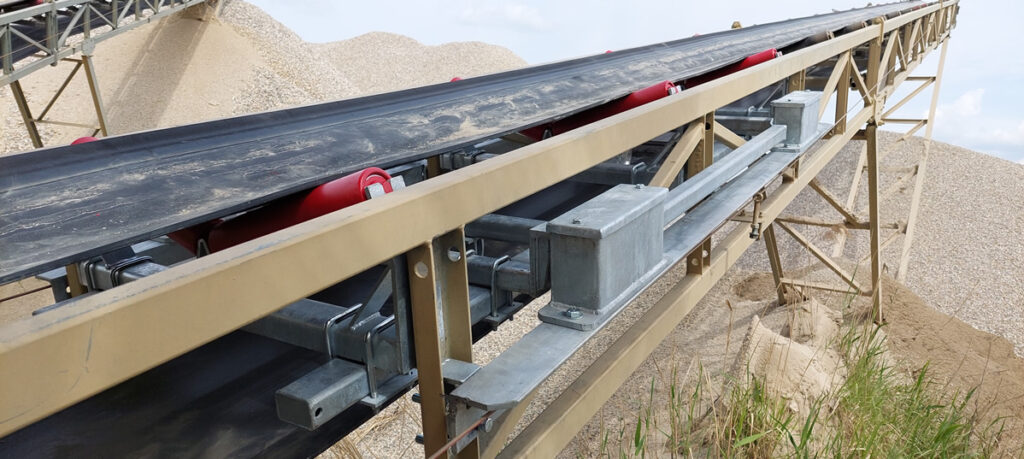

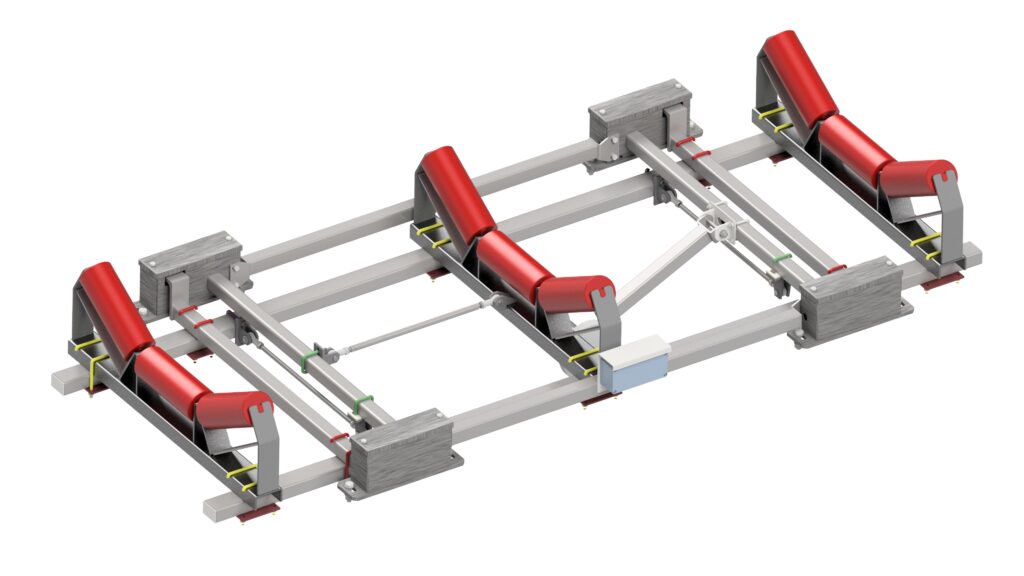

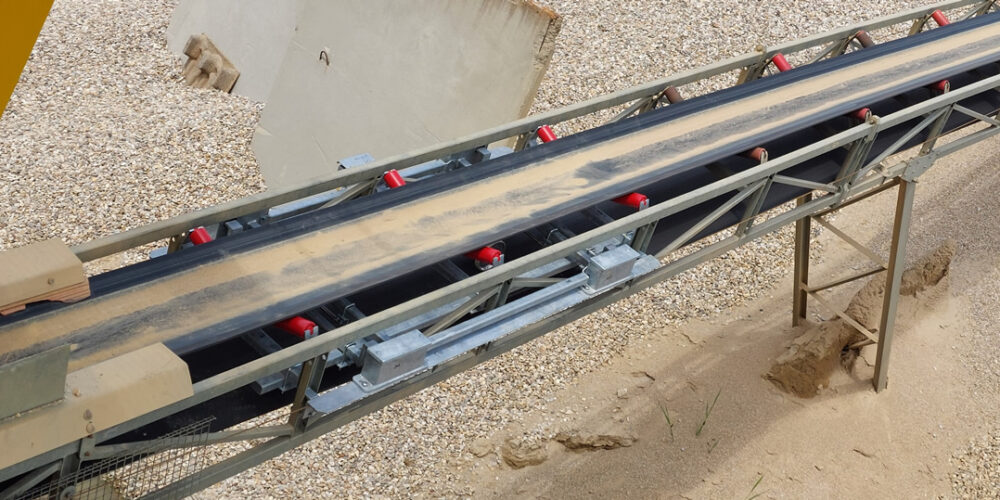

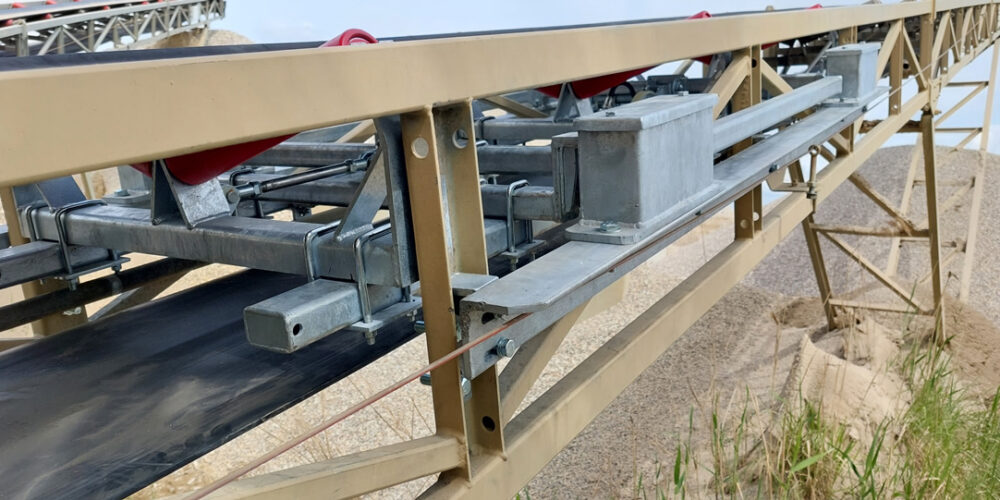

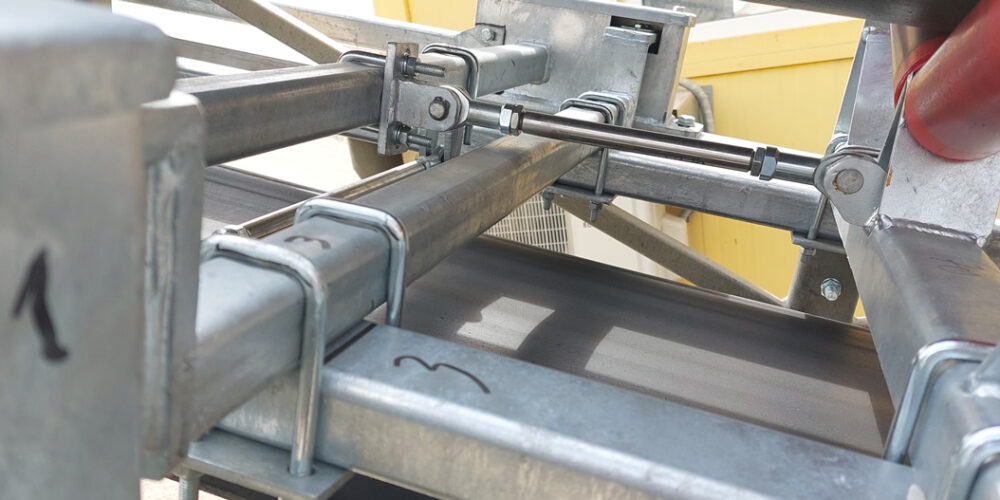

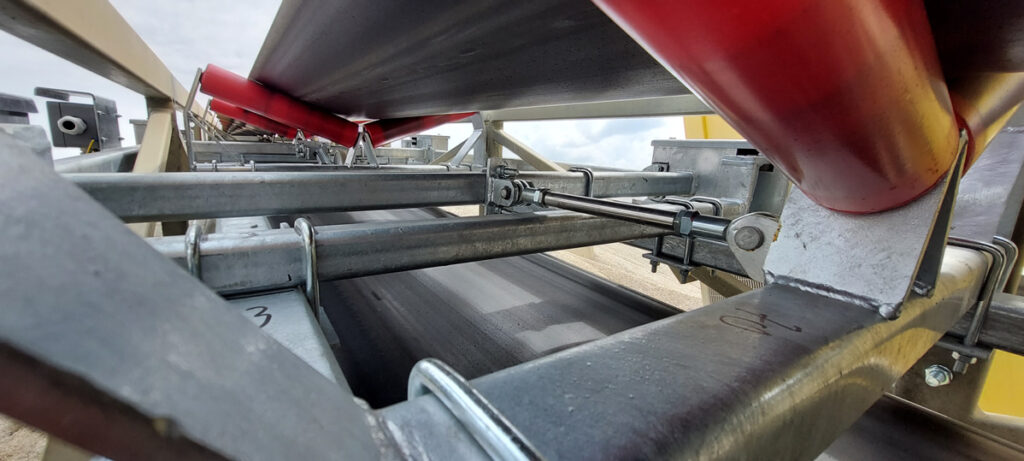

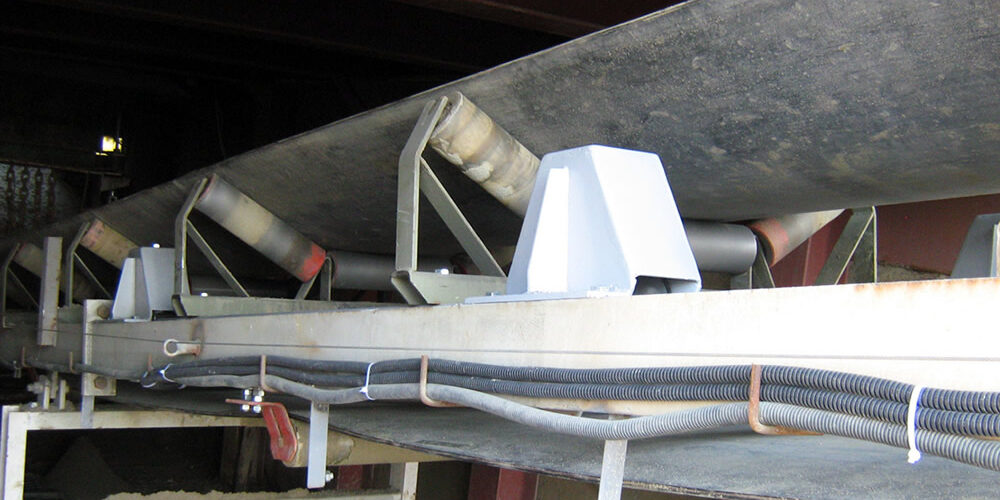

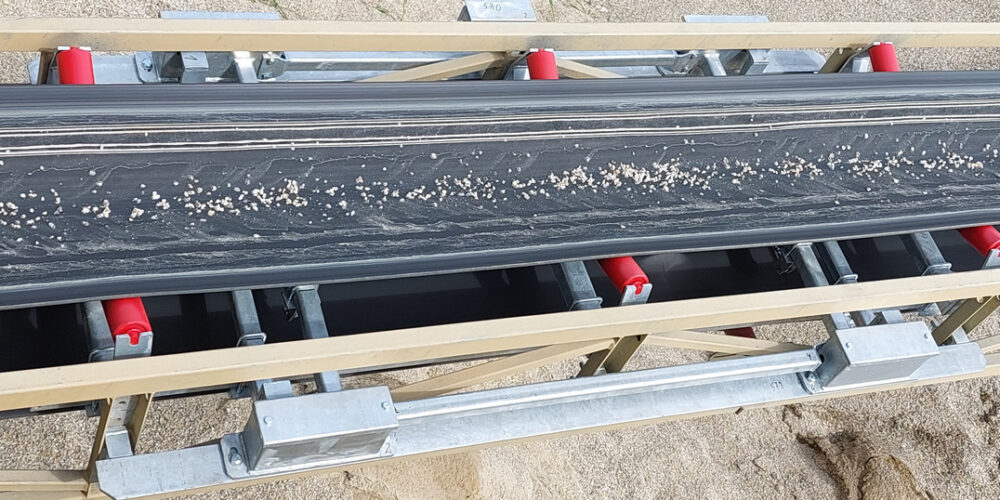

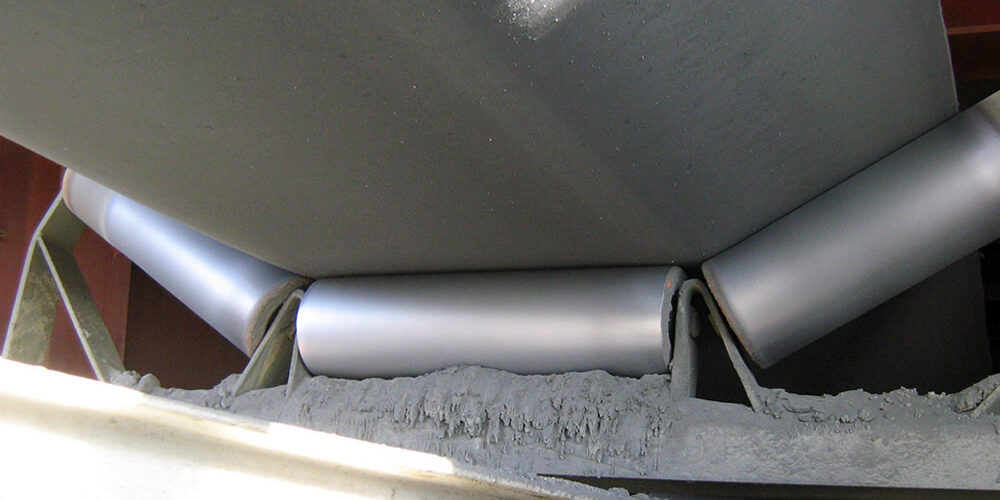

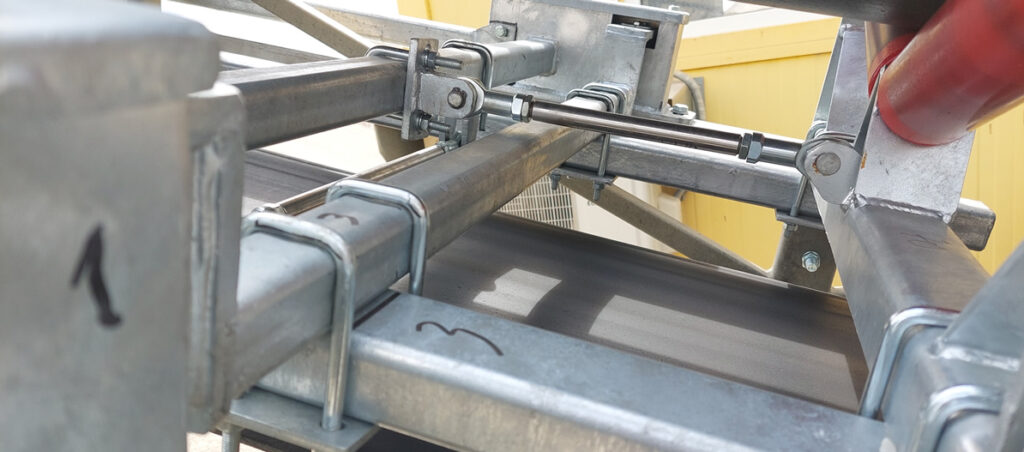

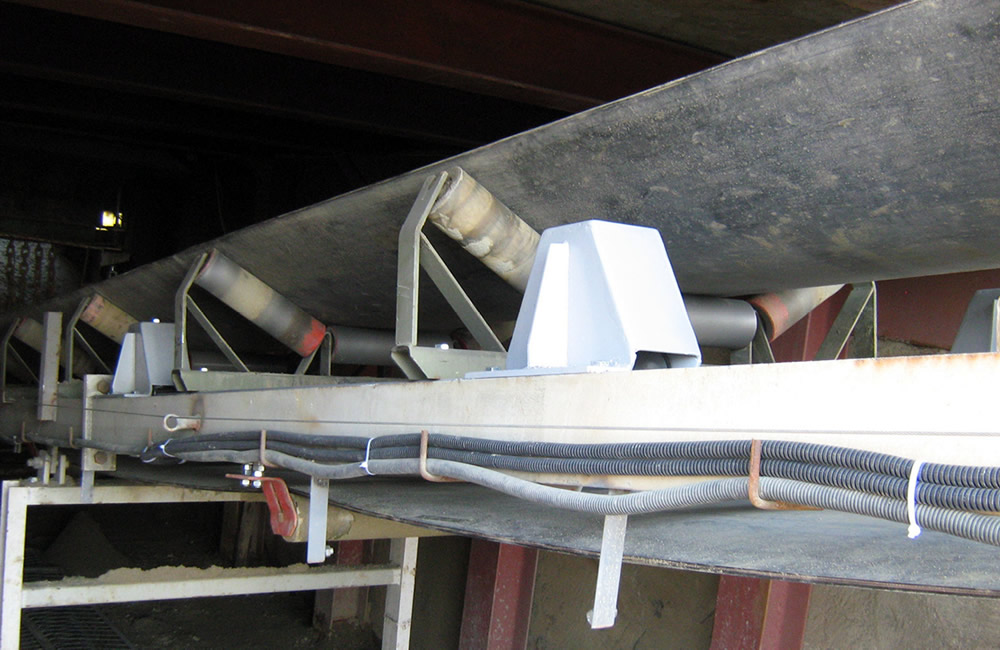

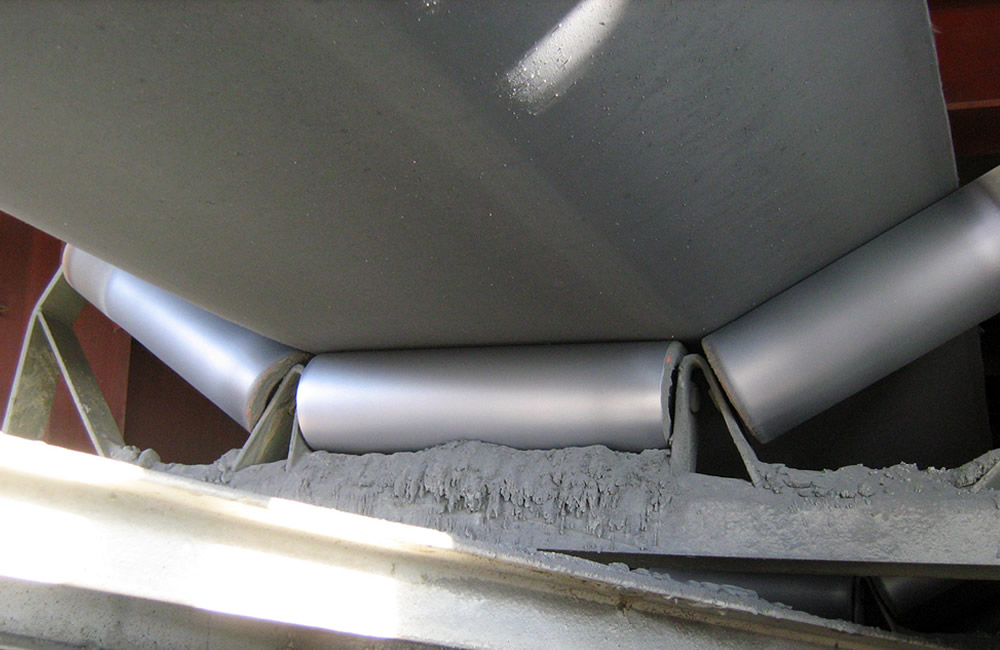

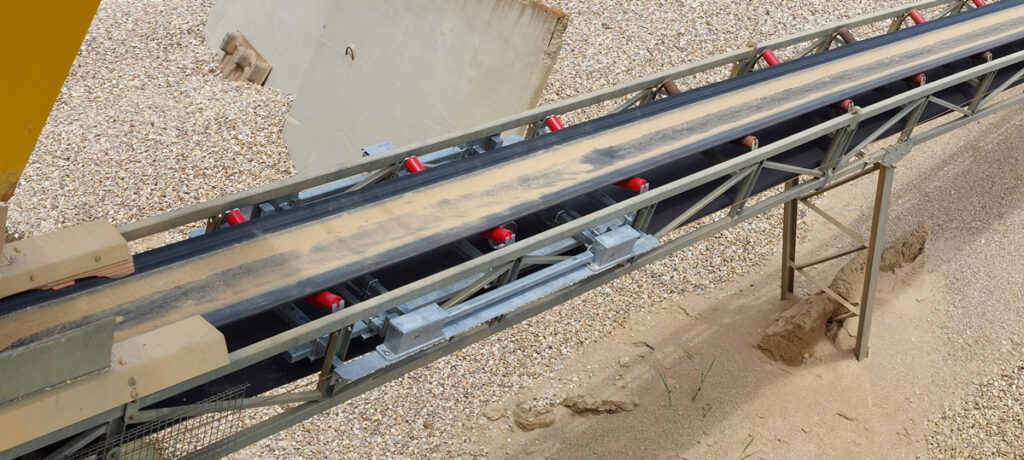

The scale integrates 3 roller supports (spaced between 0.8–1.2 meters), utilizing the existing conveyor belt structure. In addition to the three weighing roller sets, the system also includes two sets of upstream and downstream rollers, with identical dimensions and inclination angles.
This configuration ensures linearity and coplanarity of the weighing system across its entire length, in alignment with the belt and the existing structure.

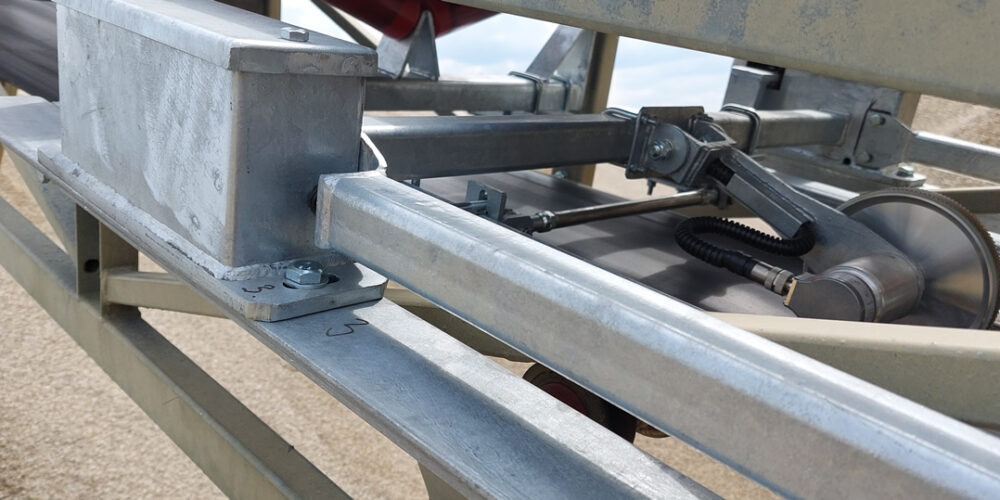

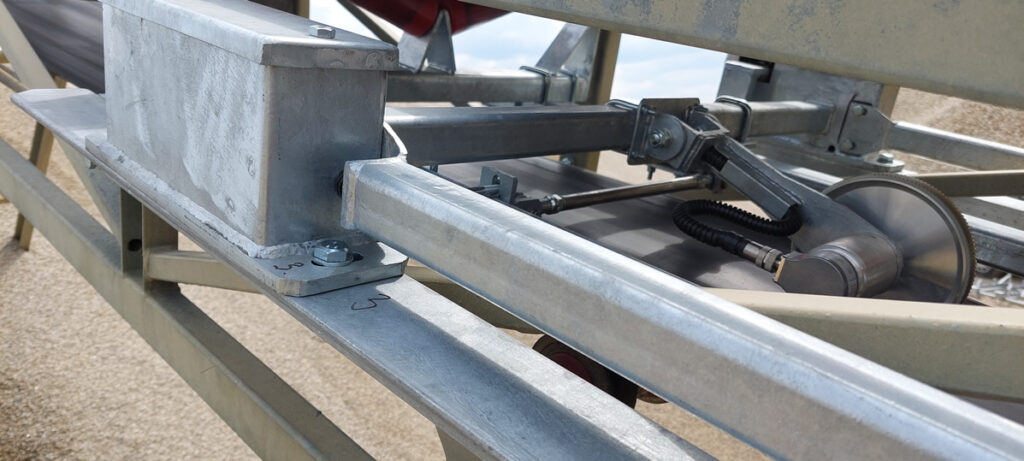

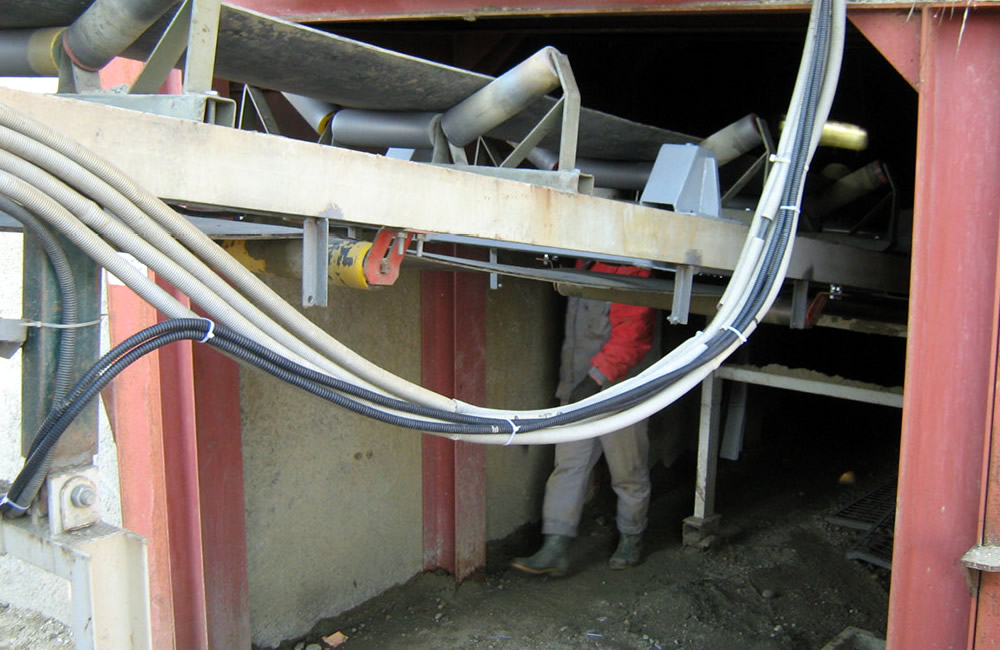

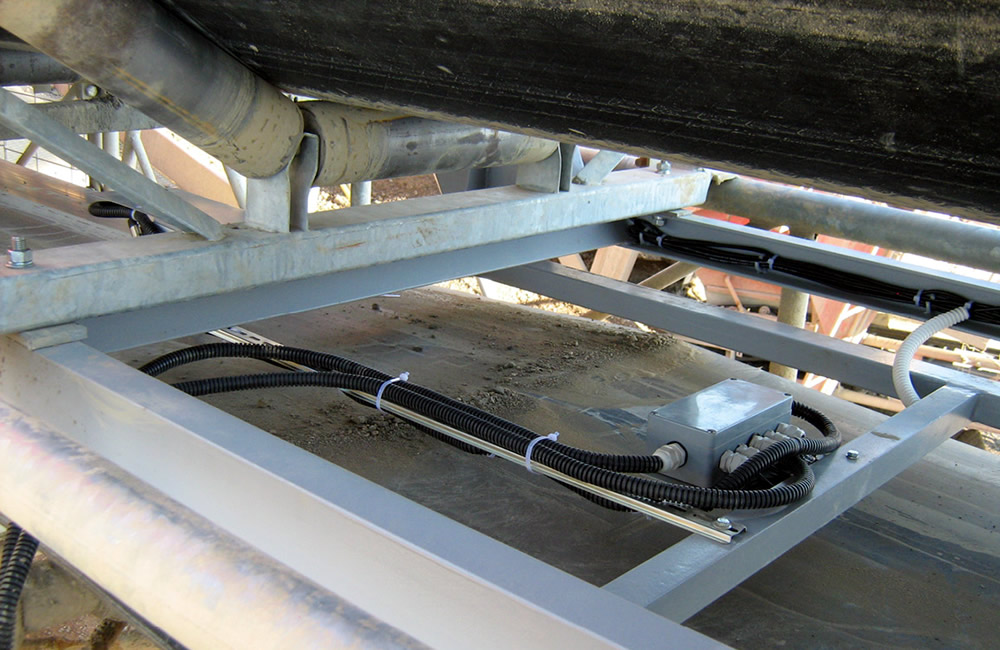

Installation is straightforward, using bolts, with precise alignment performed according to FLINTAB’s technical drawings to ensure maximum accuracy.

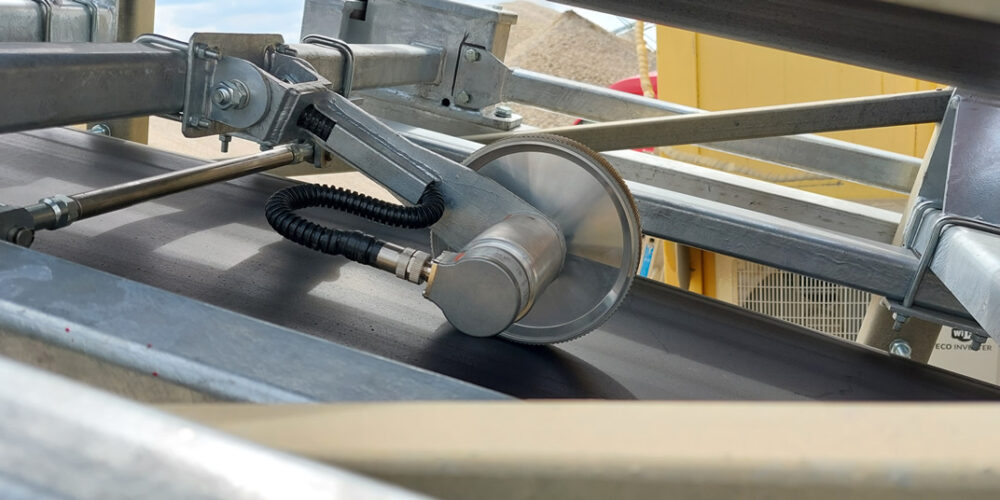

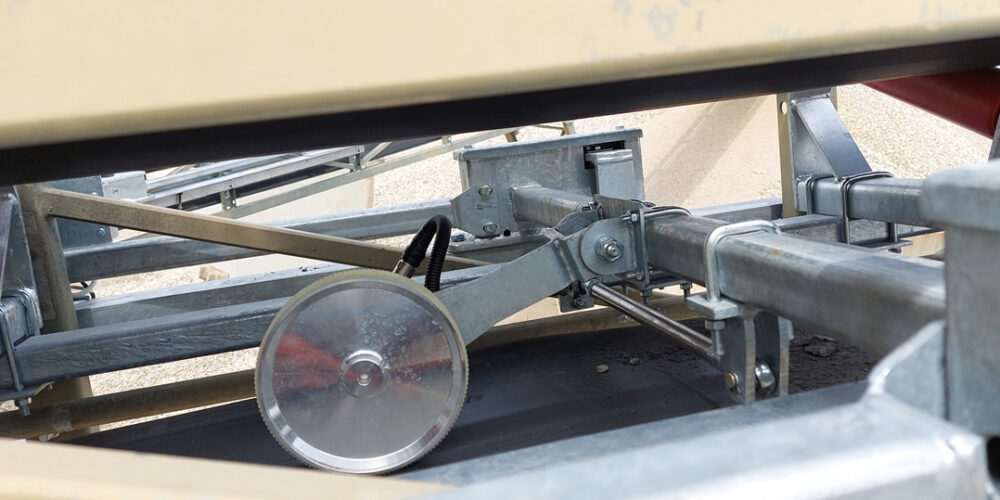

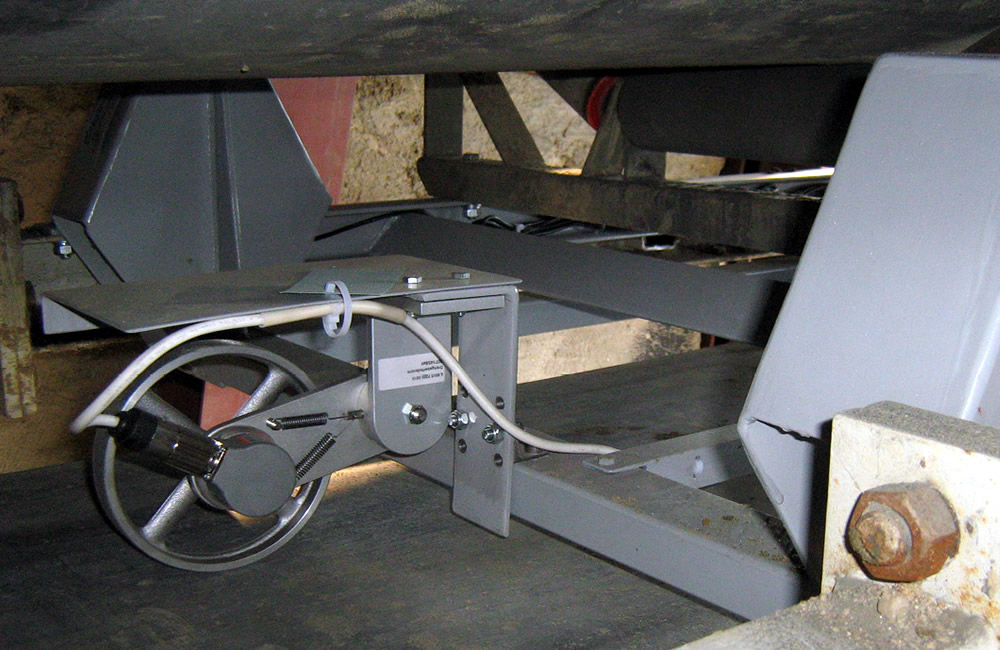

- Tachometer for Speed Measurement – KÜBLER, Germany:

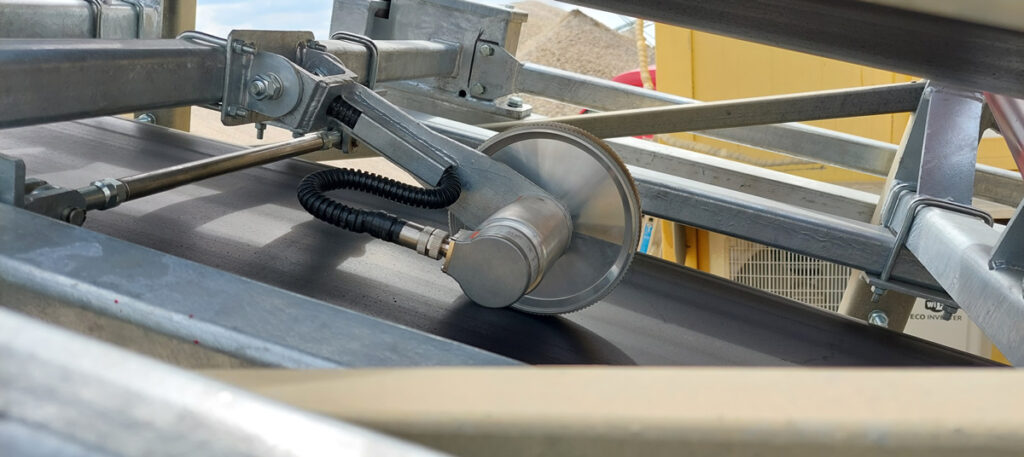

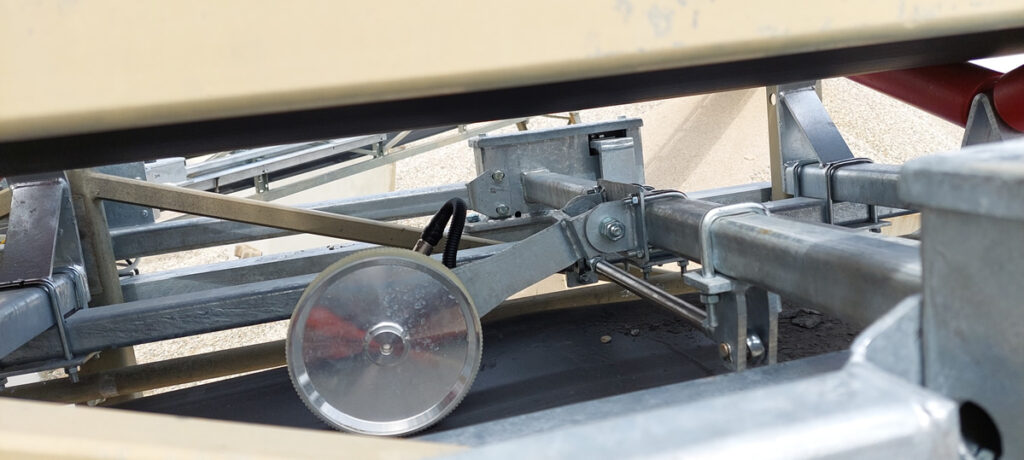

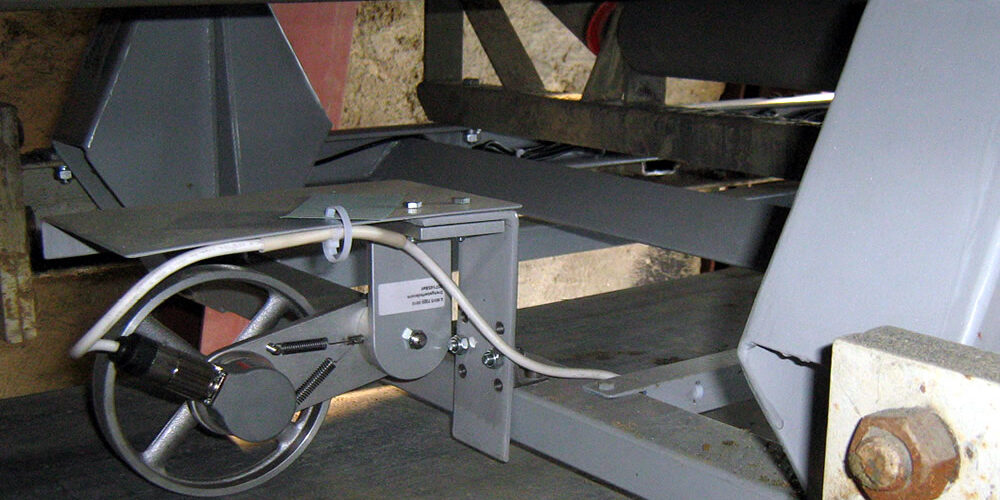

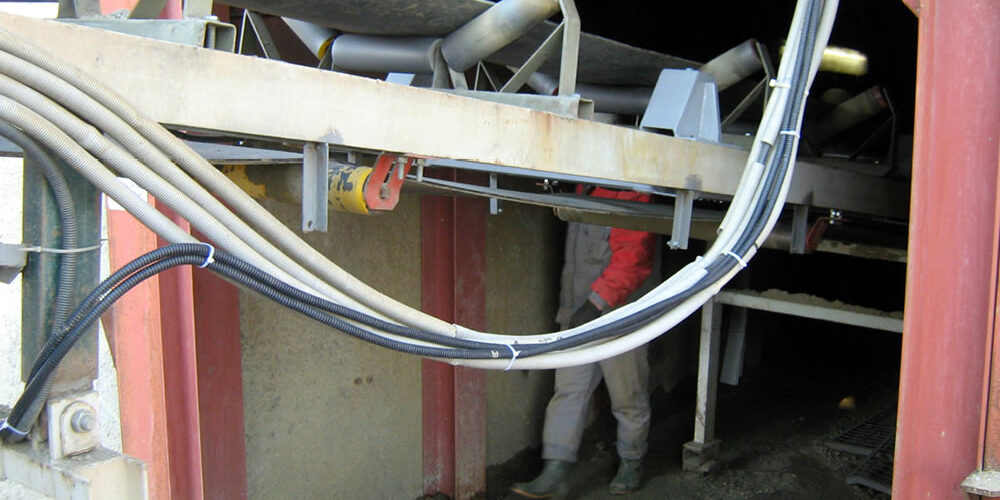

An industrial encoder mounted on the conveyor’s return roller near the scale. It enables highly accurate belt speed measurement, which is essential for calculating flow rate. - Digital Weight Indicator – SYSTEC, Germany:
Housed in a stainless steel enclosure and equipped with dedicated software for:- Monitoring belt speed
- Displaying material flow rate (kg/h or t/h)
- Totalizing transported weight
Available Communication Interfaces:
- RS232 (standard)
- PROFIBUS DP for direct integration with Siemens PLCs
- 4–20 mA analog output
- Other interfaces available on request
