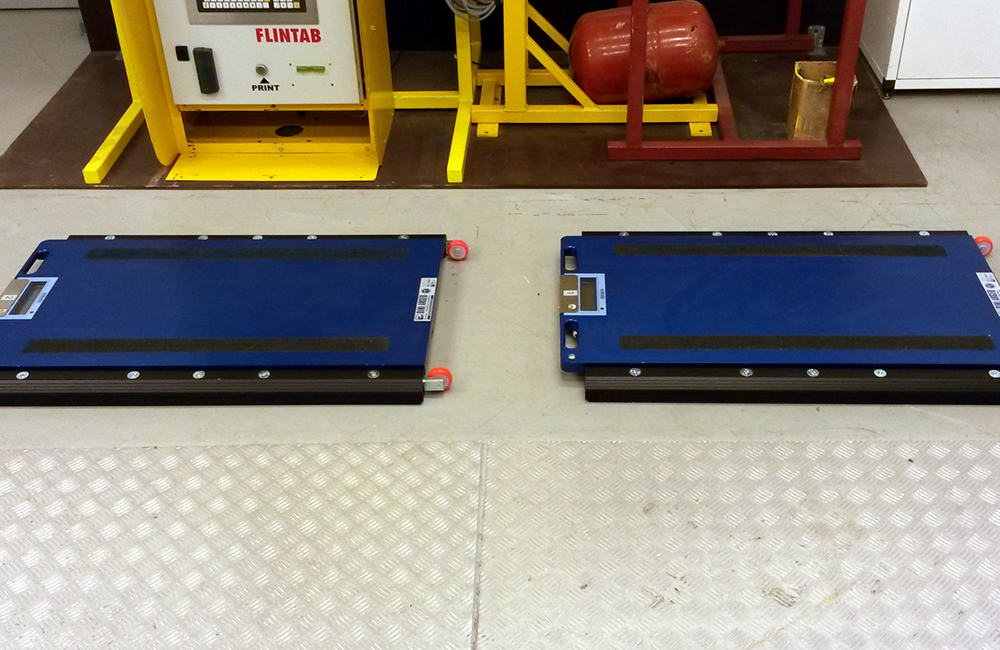

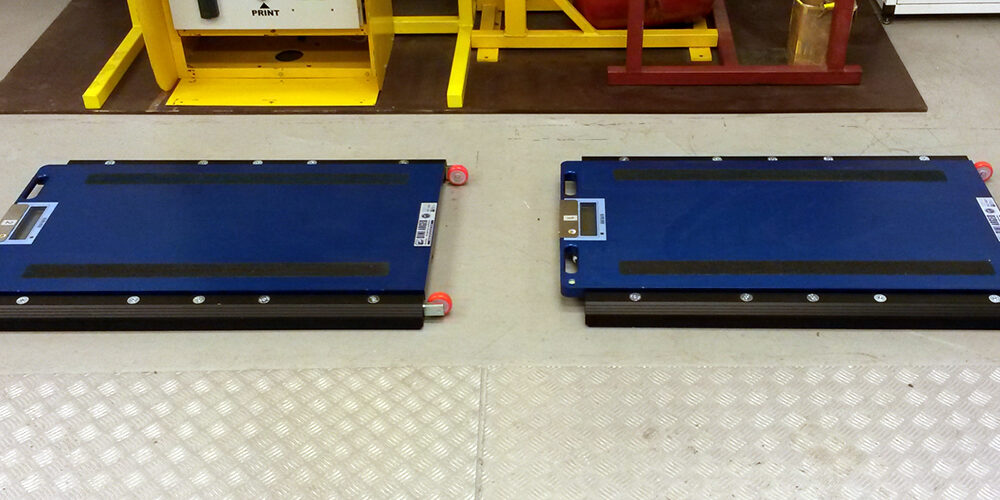

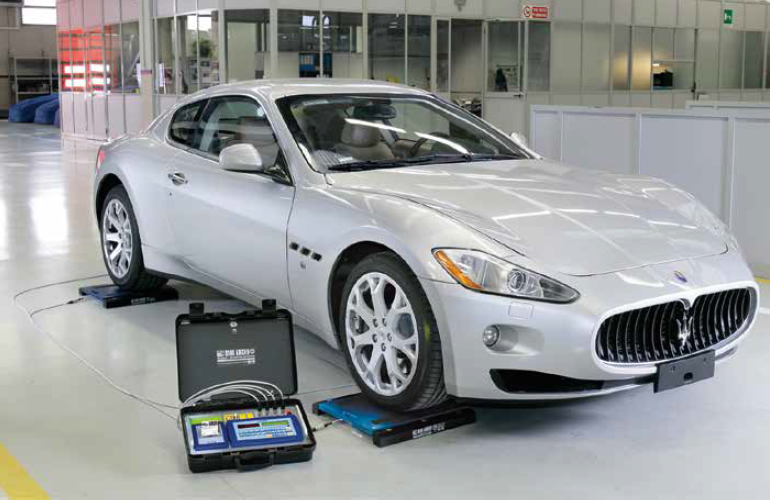

Wireless axis weighing systems are designed for static weighing. The major advantage of these types of scales is that the connecting cables between the platforms and the digital weighing indicator are removed. The WWSDRF road balance is ideal for weighing large double-wheeled vehicles, trailers, etc. With a capacity of 6000kg to 20000kg, the WWSDRF weighing system is the ideal solution for a mobile scale, reliable, accurate and very easy to install and use. Removing the connecting cables between the platforms and the indicator eliminates any problems caused by rodents or other external factors.

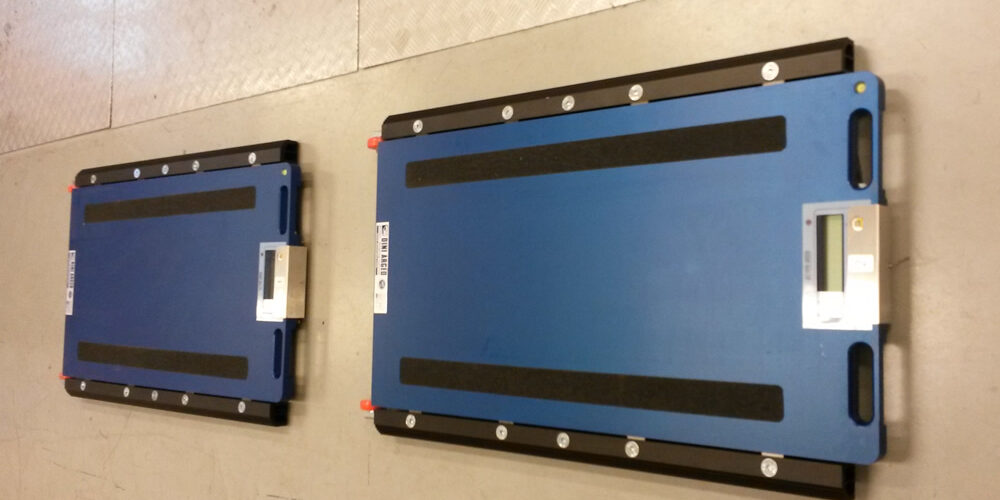

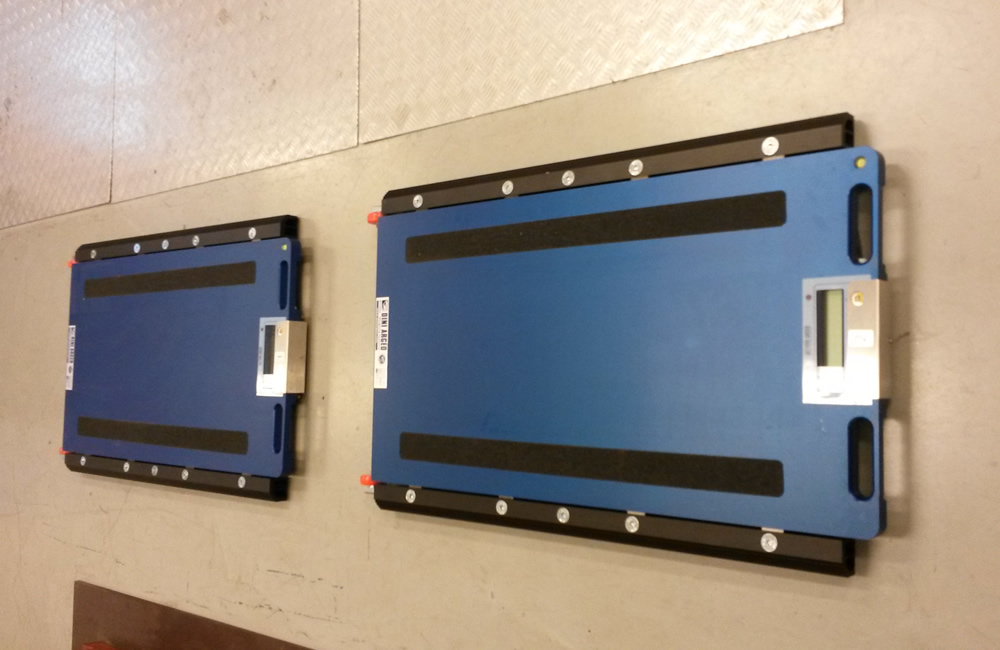

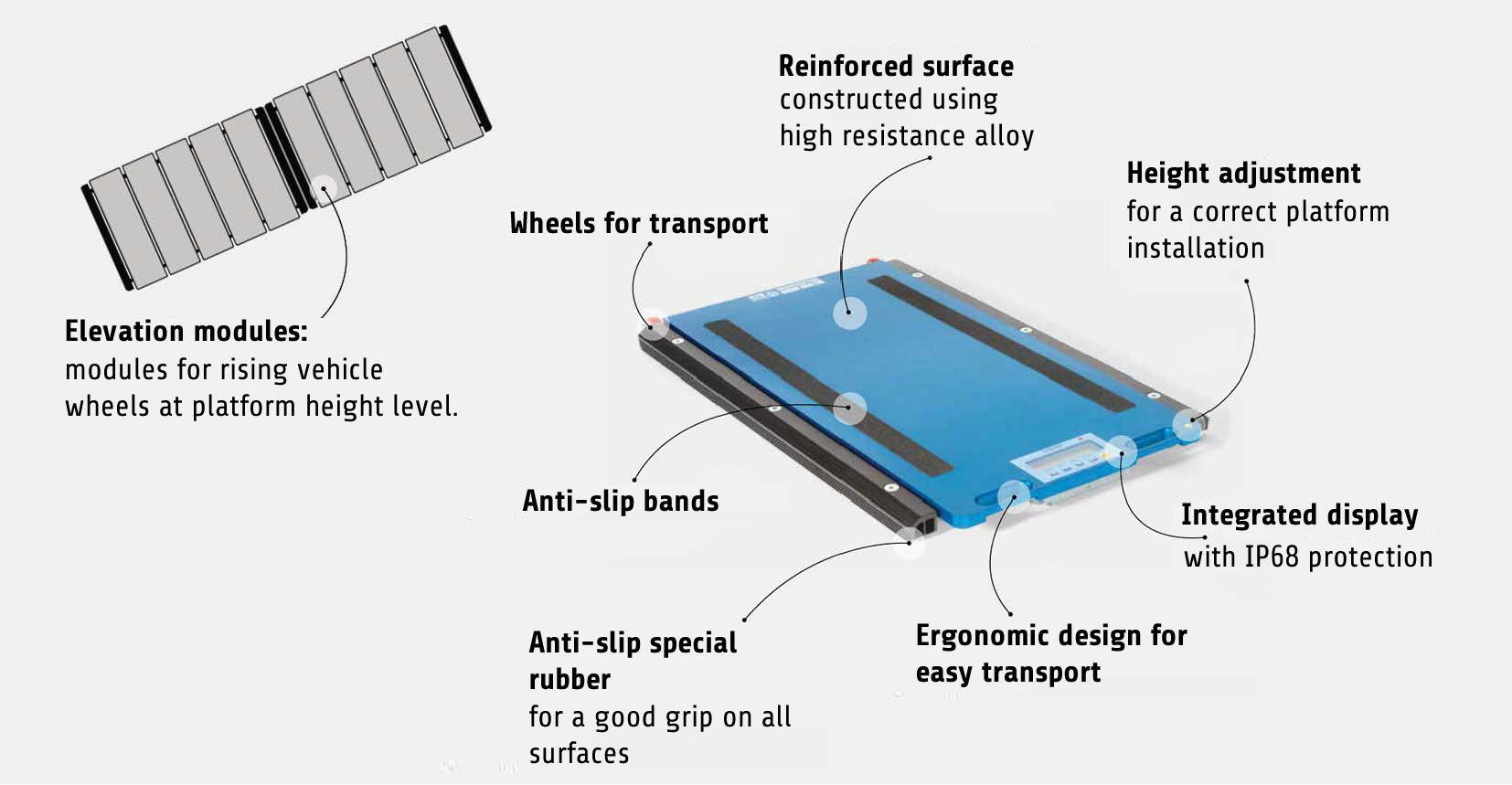

- Weighing platform dimensions: 950x500mm
- Platform height: 59mm
- Capacity: maximum 20t / axis
- Lightweight aluminum frame, suitable for use in heavy work environments
- Degree of protection IP68

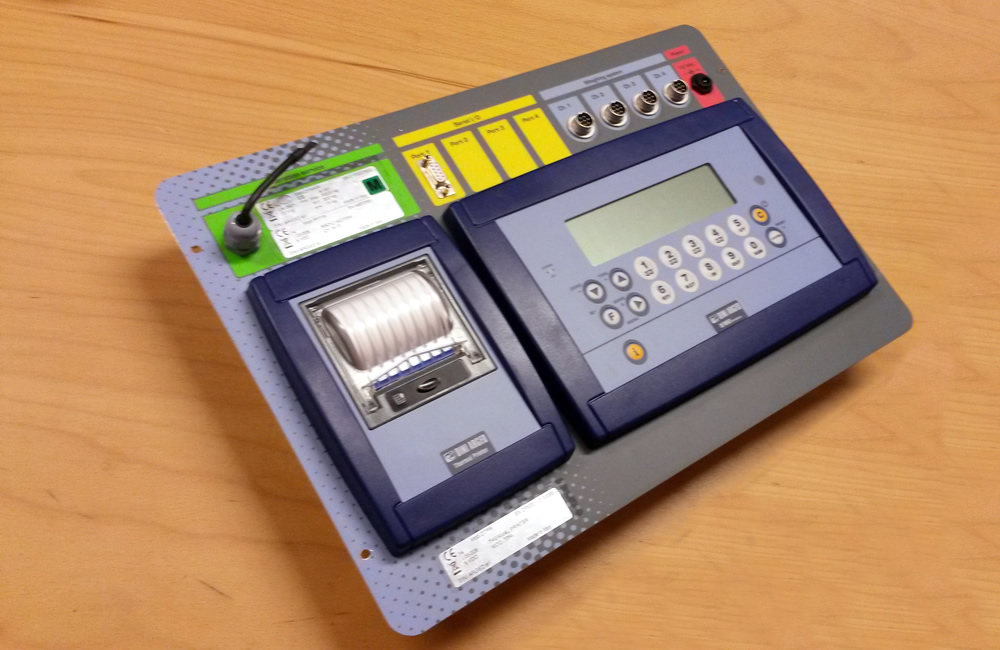

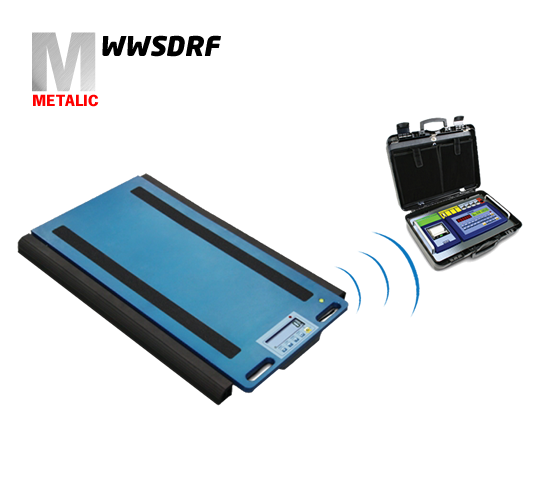

- Built-in radio mode for transmitting information to the indicator or a remote device
- Stainless steel weighing cells, IP68 degree of protection
- Power supply: Rechargeable battery (operating time of about 40 hours), hermetically sealed case
Functions

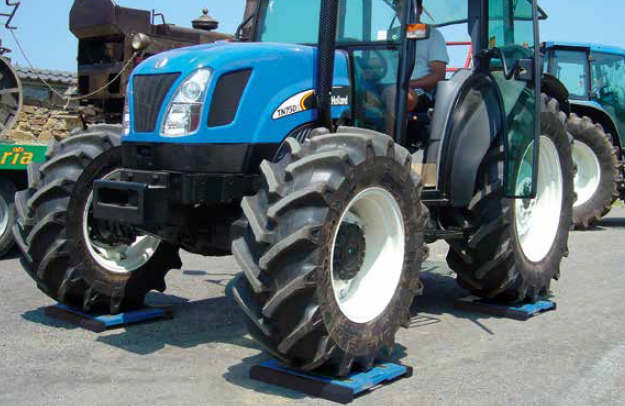

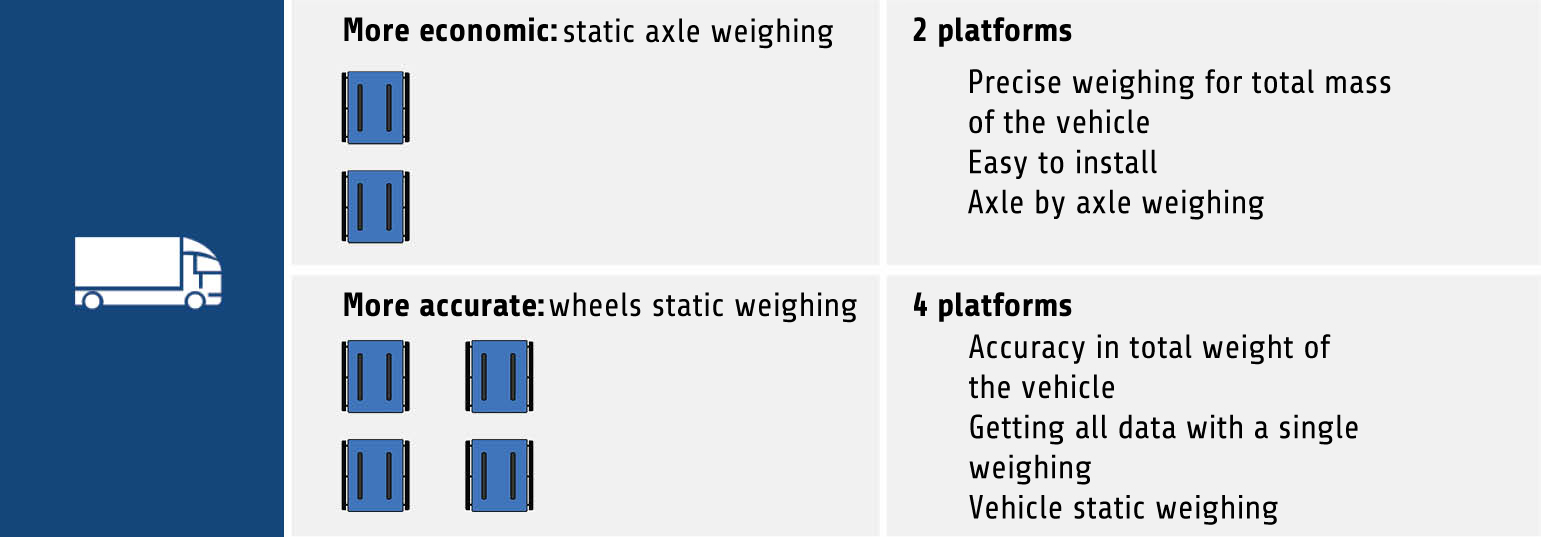

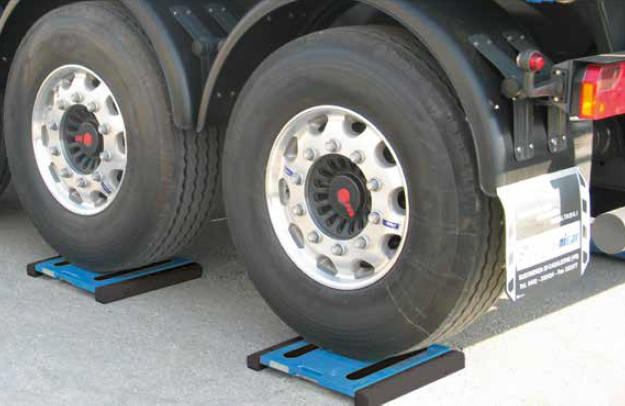

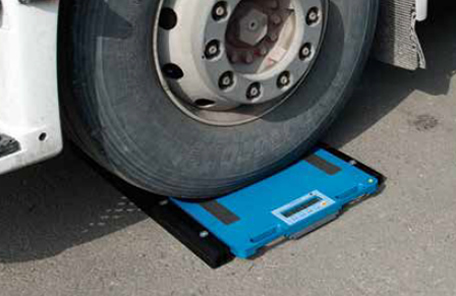

- Weighing the entire vehicle in a single operation (wheel weighing mode), which requires a number of WWS platforms equal to the number of wheels of the vehicle that to be weighed

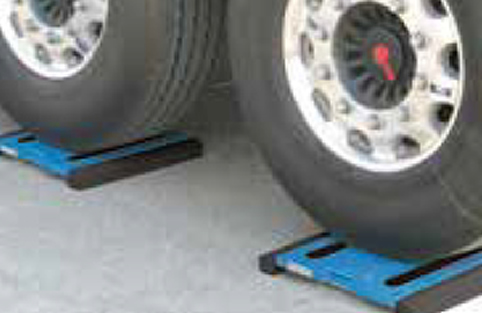

- Weighing the vehicle by summing the weight of each axle (axle weighing mode), which requires only two WWS platforms
- Acquisition of weighing data can be done by manually pressing a button when the axles are stopped and correctly positioned on the platforms, or automatically during vehicle transit on platforms
- Management of inbound / outbound weighing for the calculation and recording of the weighed mass of materials carried by vehicles entering or leaving the premises of the company / workplace
- Automatic calculation of the x and y coordinates of the center of gravity (in wheel weighing mode)

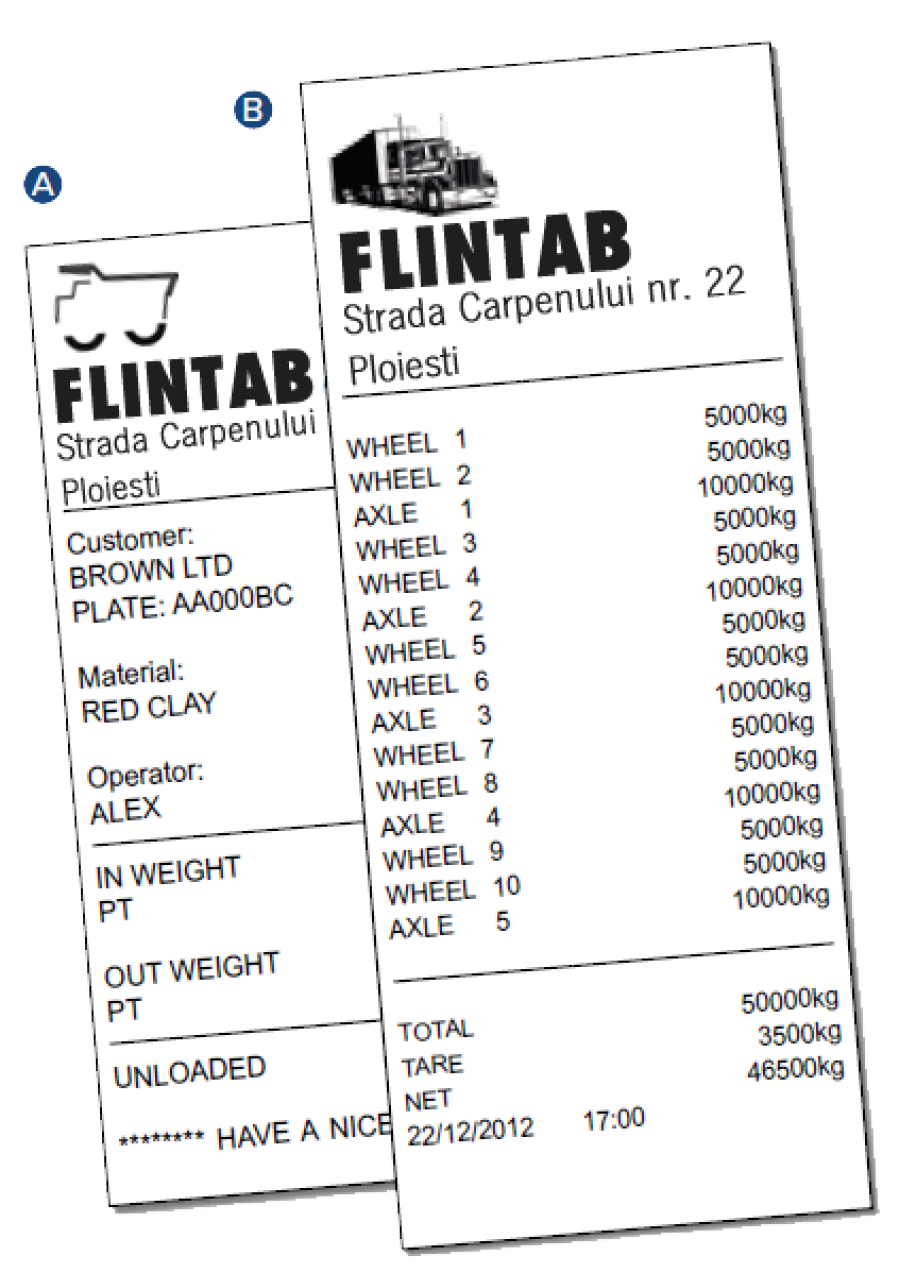

- 3 types of totals, printable and resettable independently: - total mass of the current vehicle - total mass of all vehicles - Grand total
- Country Value Management
- Database that can be manually edited by the operator (registration number / license plate, transported material, customer, administrator, etc.)
