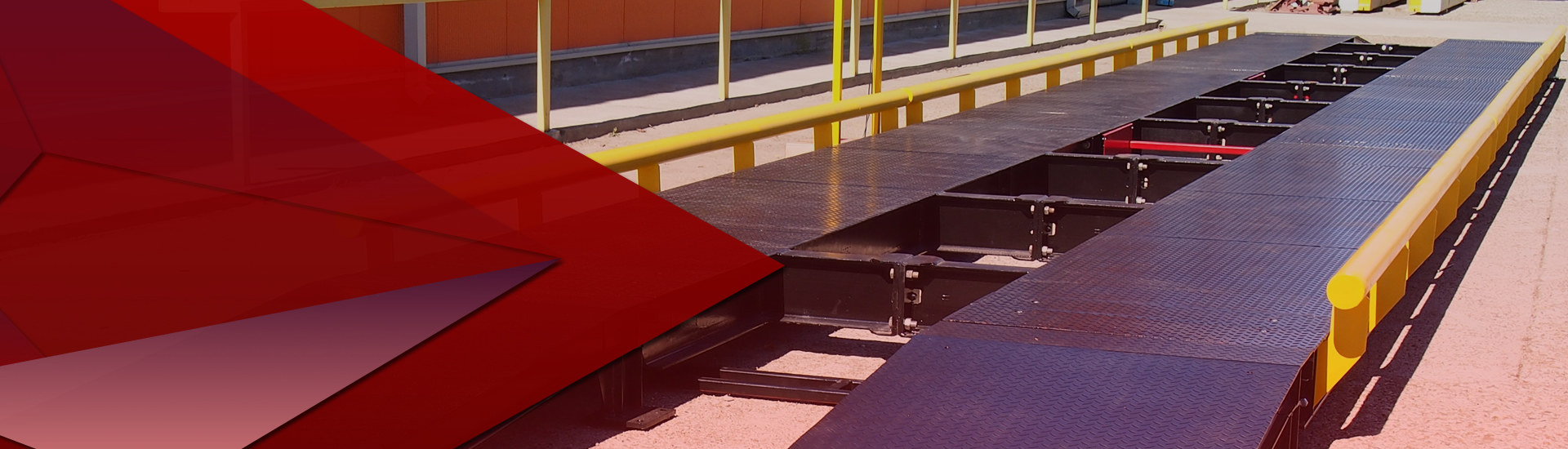

Metal truck scales are made of high-strength steel, offering durability, flexibility, and easy relocation, making them ideal for industries requiring frequent scale movement.

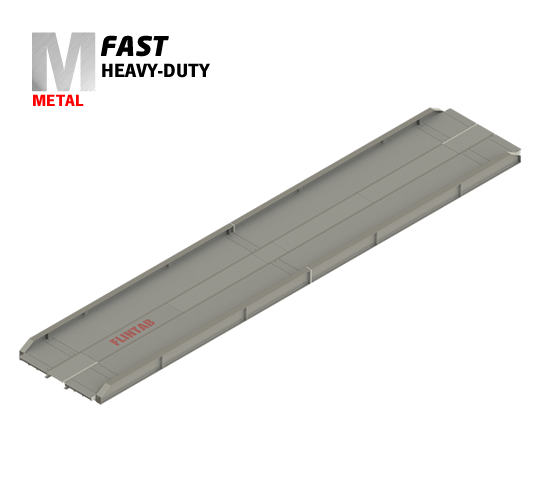

FAST
METAL
HEAVY DUTY
Truck Scales with welded structure with high side beams, flanged longitudinally and transversely. 8mm thick corrugated sheet metal track. Platform height 20cm. Non-removable lids in the middle.
| LENGTH | 16m | 18m |
|---|---|---|
| PLATFORM | METAL | |
| CAPACITY [t] | 80 | 80 |
| CLC [k] | 75 | 75 |
| ARROW F [mm] | 1: 750 | 1: 720 |
| HEIGHT H [cm] | 20 | 20 |
| CONSUMPTION | 16m | 18m |
|---|---|---|
| METAL [t] | 10.6 | 11.7 |

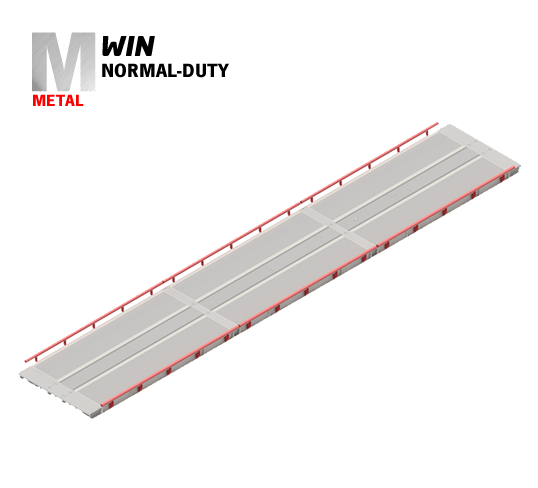

WIN
METAL
NORMAL DUTY
Truck Scales with welded structure, flanged longitudinally. 8mm thick corrugated sheet metal track. The height of the platform is 248mm. Optionally, metal ramps and protective railings. The longitudinal central space is 600mm.
| LENGTH | 16m | 18m |
|---|---|---|
| PLATFORM | METAL | |
| CAPACITY [t] | 80 | 80 |
| CLC [k] | 70 | 70 |
| ARROW F [mm] | 1: 950 | 1: 950 |
| HEIGHT H [cm] | 24.8 | 24.8 |
| CONSUMPTION | 16m | 18m |
|---|---|---|
| METAL [t] | 10.5 | 11.9 |
