Special truck scales are designed for specific applications, such as weighing oversized vehicles, extreme load capacities, or industries with unique environmental conditions. Each type serves distinct operational needs, ensuring precise and reliable weight measurement in various industries.

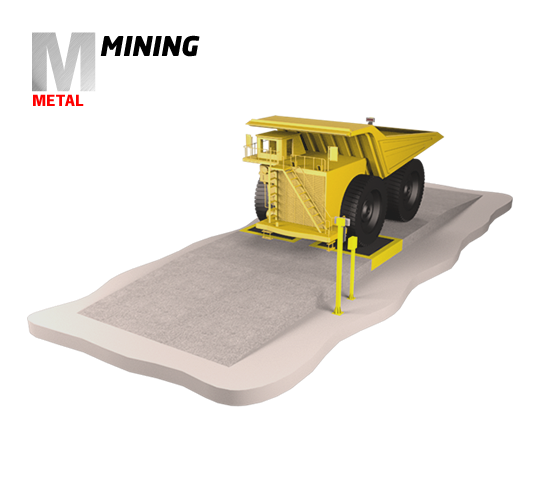

MINING
METAL
The MINING weighing system is intended for heavy trucks and can perform weighing both statically and on the go. The installation is done by burying in the existing road structure for the case when upstream and downstream on a length of about 15-16m and width 3m is a perfectly flat concrete or asphalt surface.

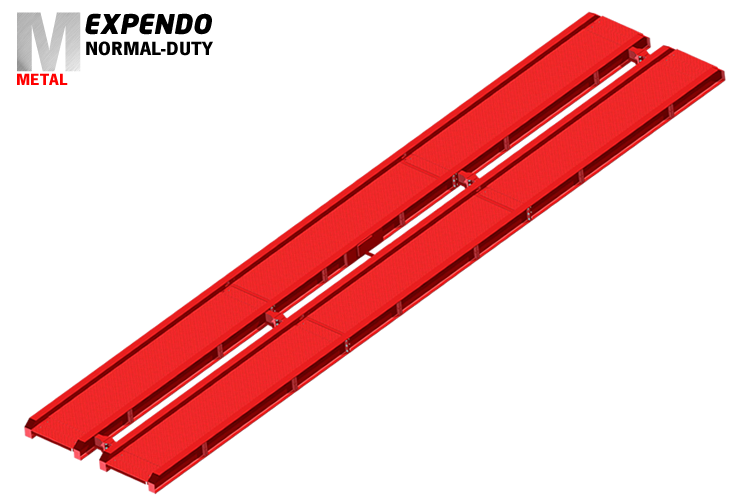

EXPENDO
METAL
NORMAL DUTY
Truck scale with welded metal structure with external and internal lateral beams, longitudinally and transversely flanged. Track made of striated plate 8mm thick. Weighing platform height 20cm. No middle caps.

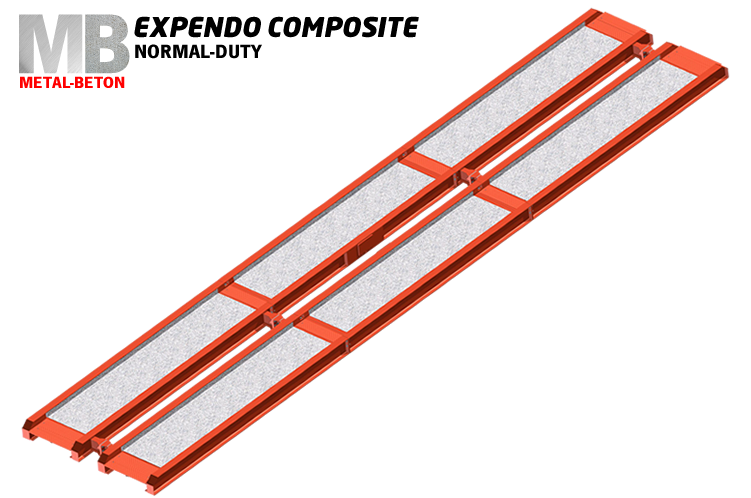

EXPENDO COMPOSITE
METAL-CONCRETE
NORMAL DUTY
Welded structure with external and internal side beams, flanged longitudinally and transversely. Driveway prefabricated, reinforced and concreted in the factory – concrete type C45/55 in accordance with DIN 1045. Platform height 20cm. Free middle caps. Free space only 480mm.

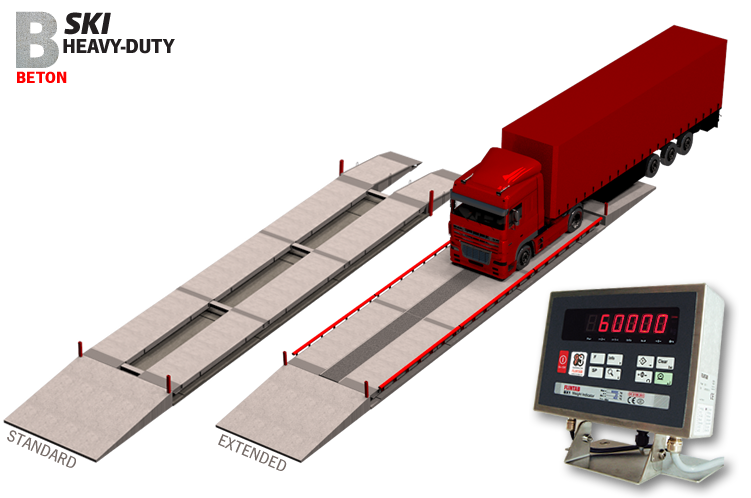

SKI
CONCRETE
HEAVY DUTY
Road weighbridge with prefabricated monolithic structure made of reinforced concrete type C45/55 in accordance with DIN 1045, without side beams, transversely flanged. Precast roadway (reinforced and concreted in the factory). Platform height 28cm. Optional galvanized grill median covers and protective railings. Free space only 700mm.

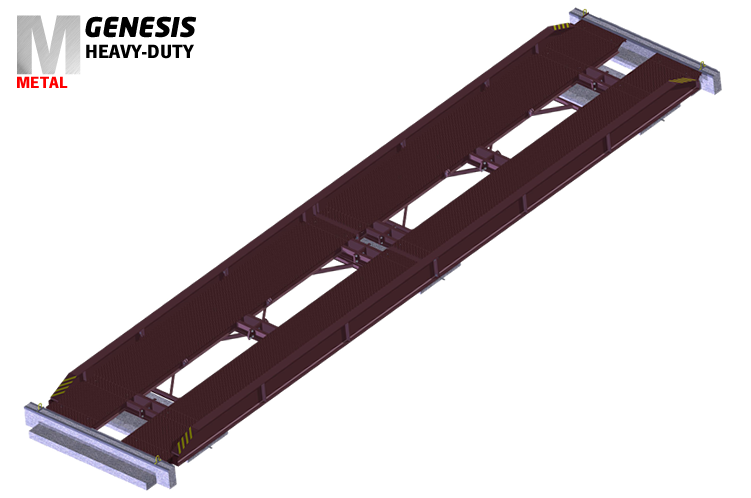

GENESIS
METAL
HEAVY DUTY
Welded structure with high side beams, longitudinally and transversely flanged. Track made of striated sheet metal 8mm thick. Platform height 20cm. No middle caps. Free space only 85cm. Together with IP prefabricated foundations.

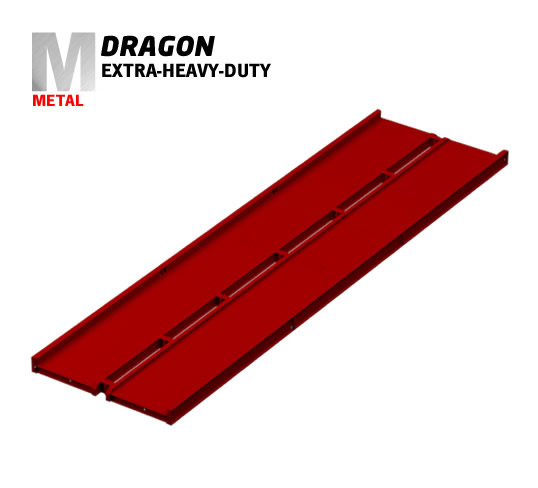

DRAGON
METAL
EXTRA HEAVY DUTY
Welded structure with high side beams, longitudinally and transversely flanged. Track made of corrugated sheet metal, thickness 8mm. Active width 5.5m. Special Off-Highway applications.
