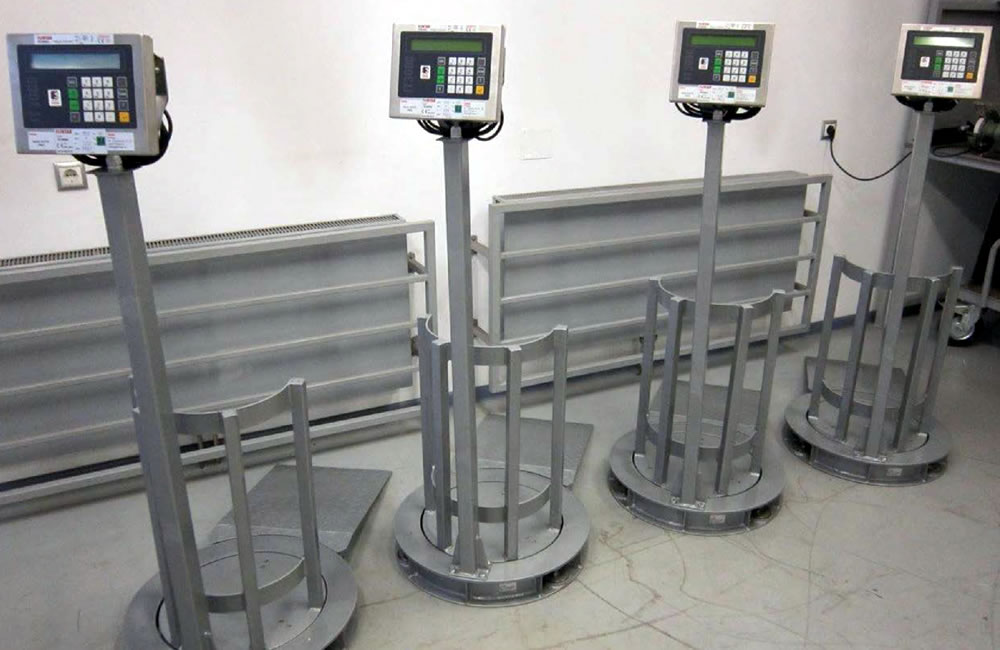

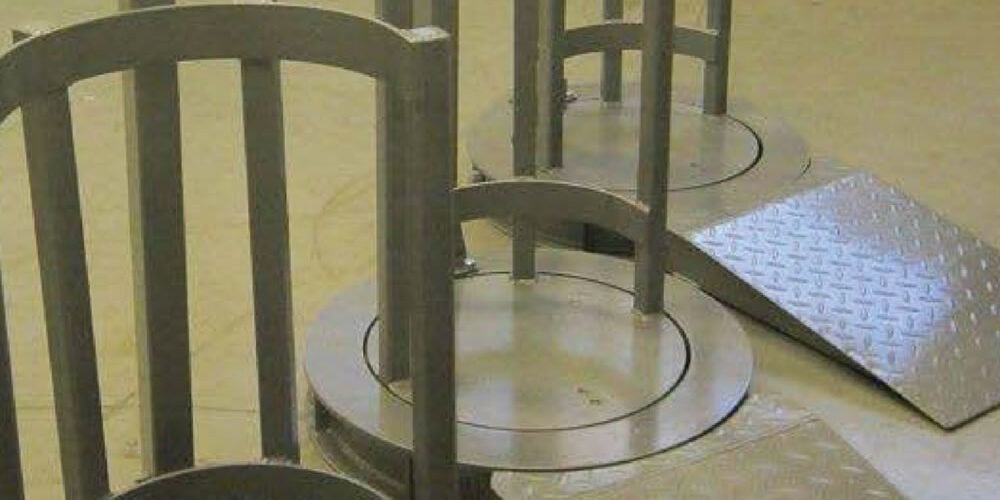

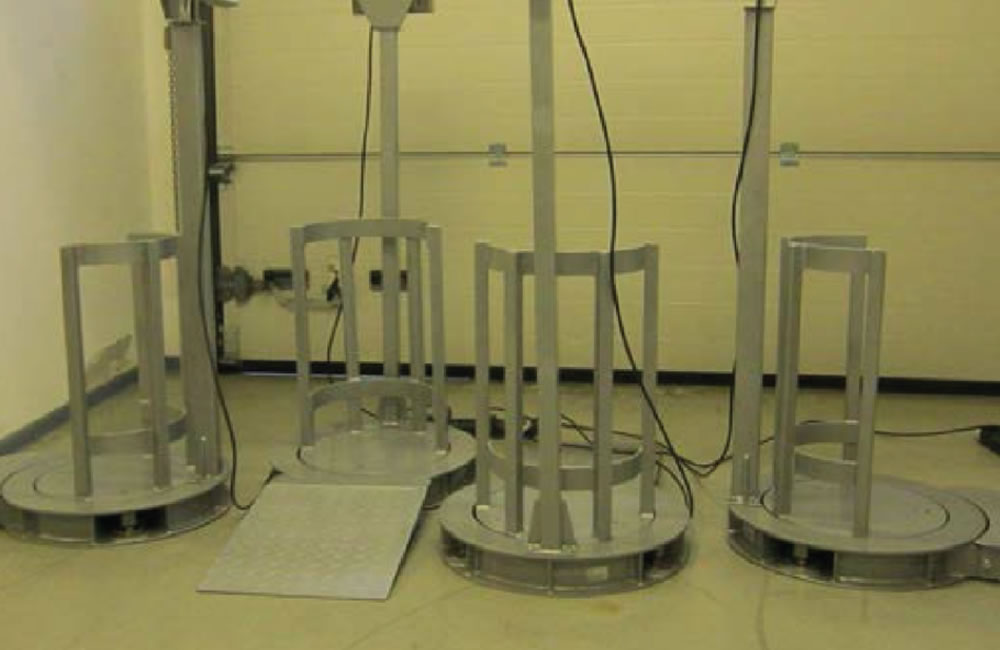

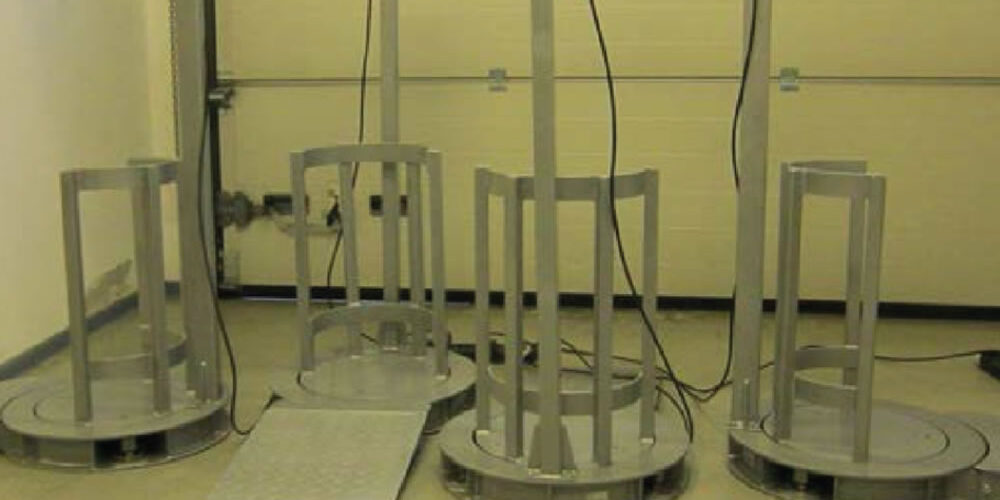

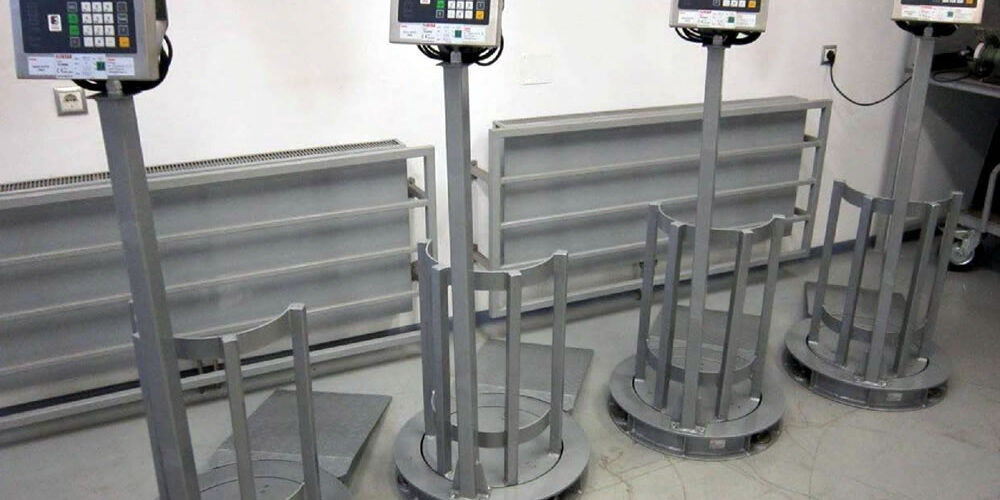

Weighing platform for liquefied gas cylinders

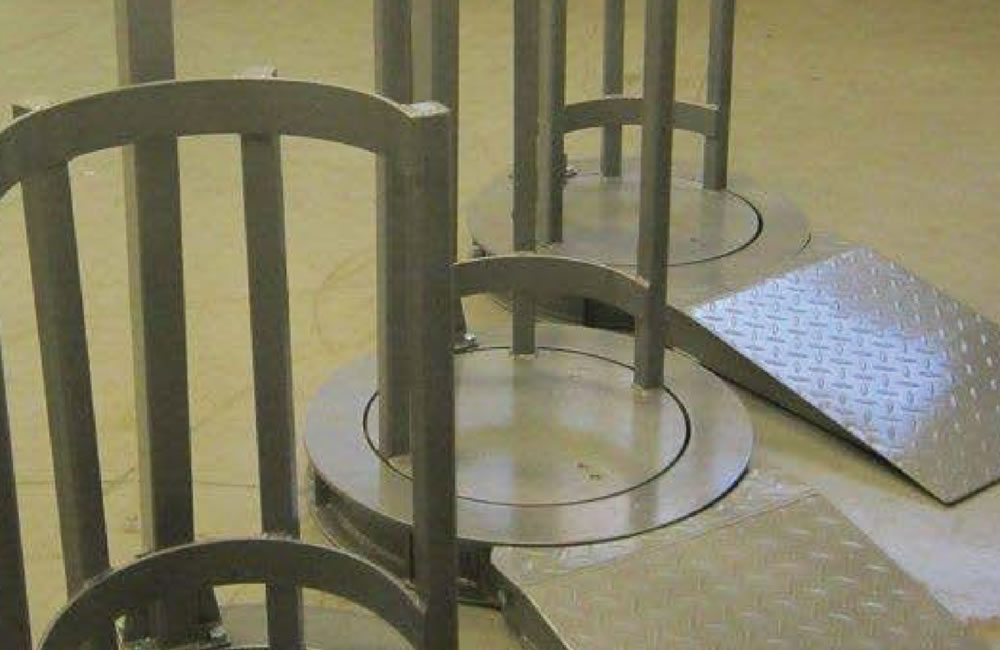

Circular weighing platform with a rigid structural frame, designed for special weighing applications for liquefied gas cylinders. Corrosion protection is provided by primer and industrial paint. The three stainless steel weighing cells are FLINTEC SB14 type with IP68 degree of protection.
- Rigid structural framework

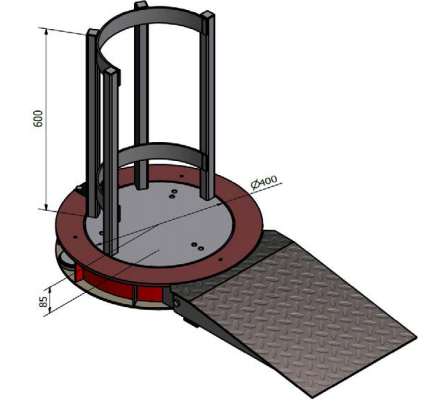

- Circular weighing platform with diameter adaptable to customer needs
- Corrosion protection (primer and gray industrial paint)
- Three FLINTEC SB14 stainless steel weighing cells, IP67 degree of protection and mounting accessories
- Connection cable (5m)
- FRP (fiberglass reinforced polyester) connection box IP66 degree of protection, with cable glands for protection of the connection cable
- Working temperature: -40 ° C .. + 65 ° C

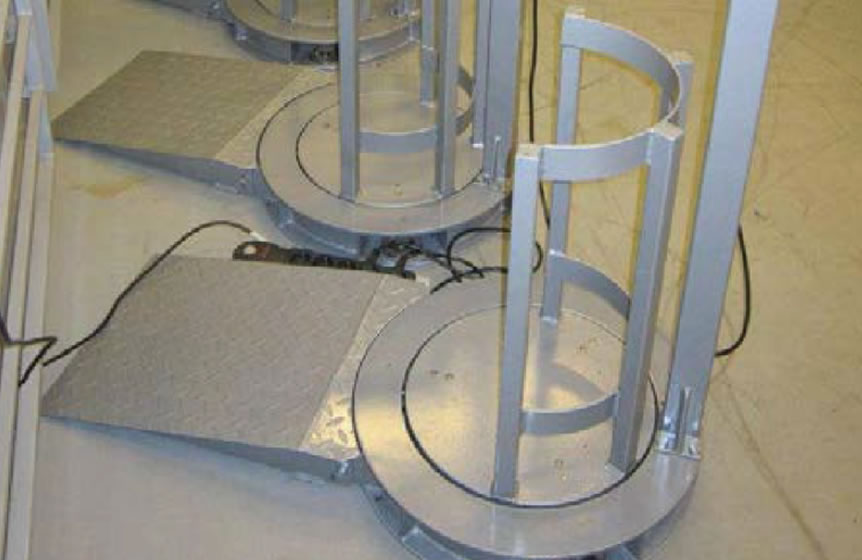

- Ramps adaptable as needed
- Metal grille for supporting cylinders

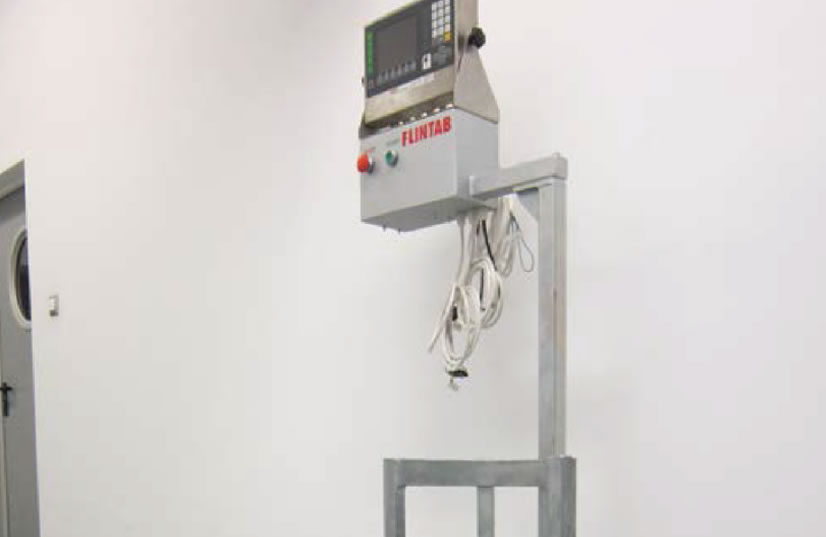

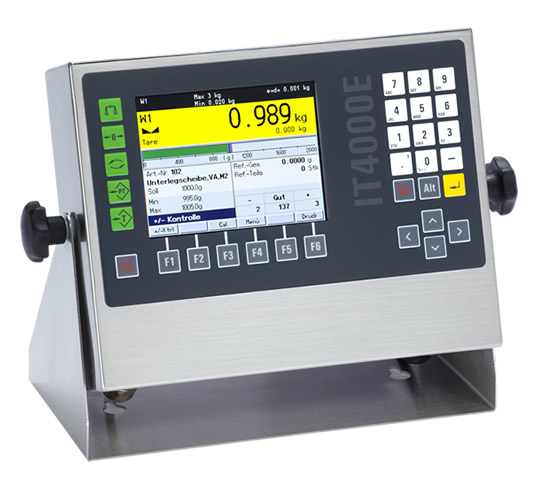

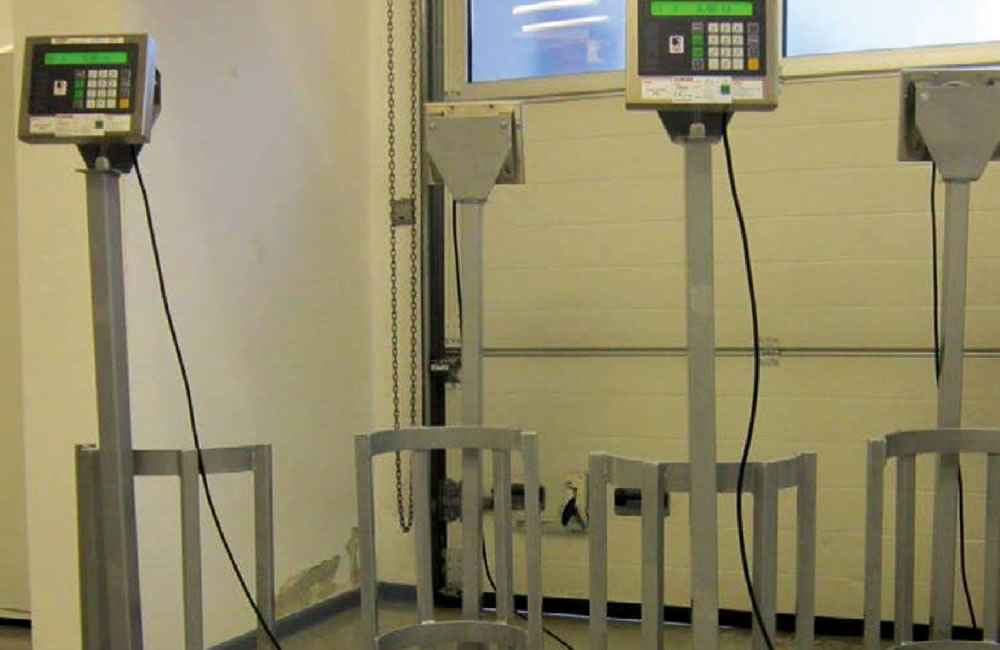

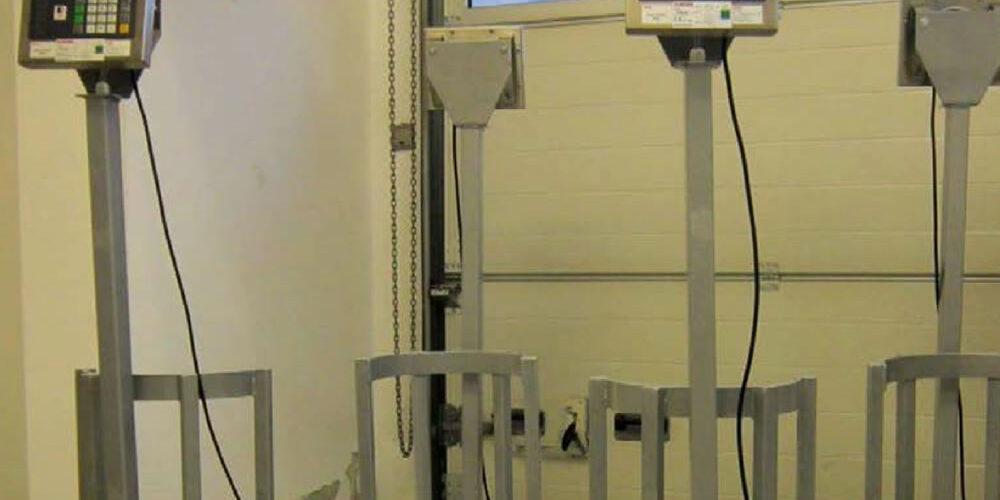

SysTec IT4000E Digital Weighing Indicator
- Protected interface for RS232 serial communication, optional RS485, RS422 or 20 mA.
- Ethernet interface for data communication
- Aliquy DSD Data Storage Device (0..9999) for weighing traceability
- Multi Cell Processing Technology (MCP)
- A / D converter with analog and digital filters
- Keyboard On / Off, Sum, Piece counting, Zero, Hard, Print, Function
- Continuous monitoring of pointed errors
- Power: 230Vac / 50Hz
SysTec IT4000E Digital Weighing Indicator
The purpose of the product is to determine the mass in commercial transactions and is covered by Directive 2009/23 / EC (which repealing Directive 90/384 / EEC), transposed by H.G. 617/2003 for the establishment of the conditions for placing on the market and of commissioning of weighing machines with non-automatic operation, republished, modified by H.G. 1302/2009.
Foundation
- The client provides a flat concrete surface.
Circular Weighing Platform for Cylinders – Electronic Components
- FLINTEC Germany weighing cells SB14 type with surge protection
- Junction box with surge protection
- Copper mounting cable for mounting
- IT4000E digital weighing indicator
Services
- Initial metrological verification and legal markup
- Declaration of Conformity and Certificate of Testing
- Operation Manual
- Train Operators
Exclusions from standard or optional supplies
- Transport platform from its own factory (Tecuci branch, Galati county)
- Lifting means for a platform weight of approximately 100kg
Warranty
- 5 years the strength structure of the platform; 1 year electronic components
Post-warranty service
- Product lifetime: spare parts insurance, service interventions
Delivery time
- 10..14 days
Our weighing platforms are designed for use in industrial work environments. Renowned for their reliability and accuracy, FLINTAB platform scales have stood the test of time in harsh work environments.
All of our scales are easy to install, use, and maintain, so they won’t slow you down. FLINTAB weighing platforms are available in a wide range of sizes, capacities and prices to suit every application.

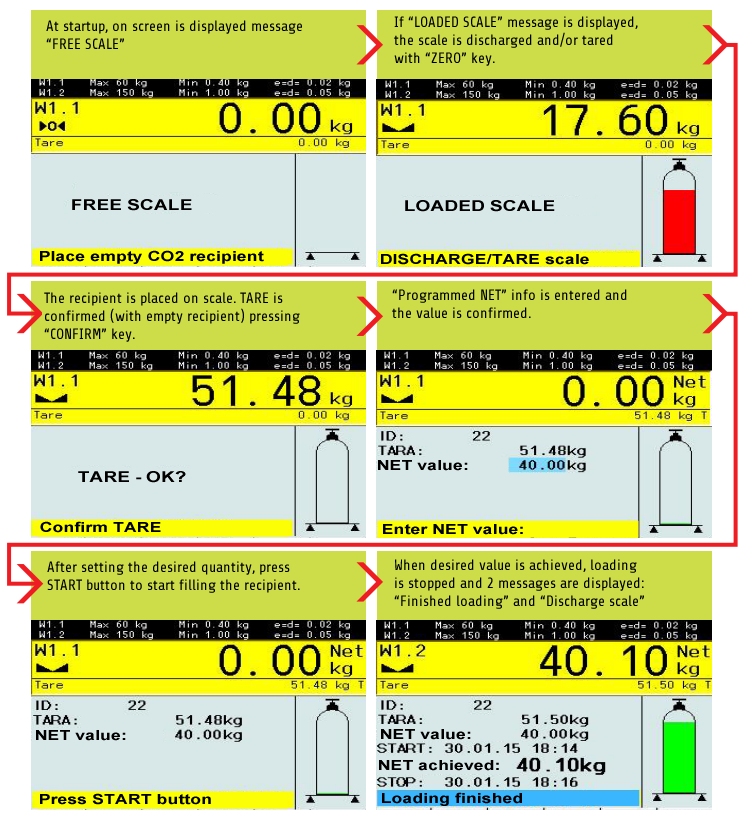

The CO2 pump starts at the beginning of the charging program. The pump runs throughout the program loading. A recirculation valve (normally open) is used to protect the pump and is open for so long when the loading system is switched off or the cylinders are not loading. The desired charging system is supplied with voltage. Charging valve remains closed (charging valve is not powered), ignition valve contact remains open and the recirculation valve remains open (the recirculation solenoid valve is not powered).
