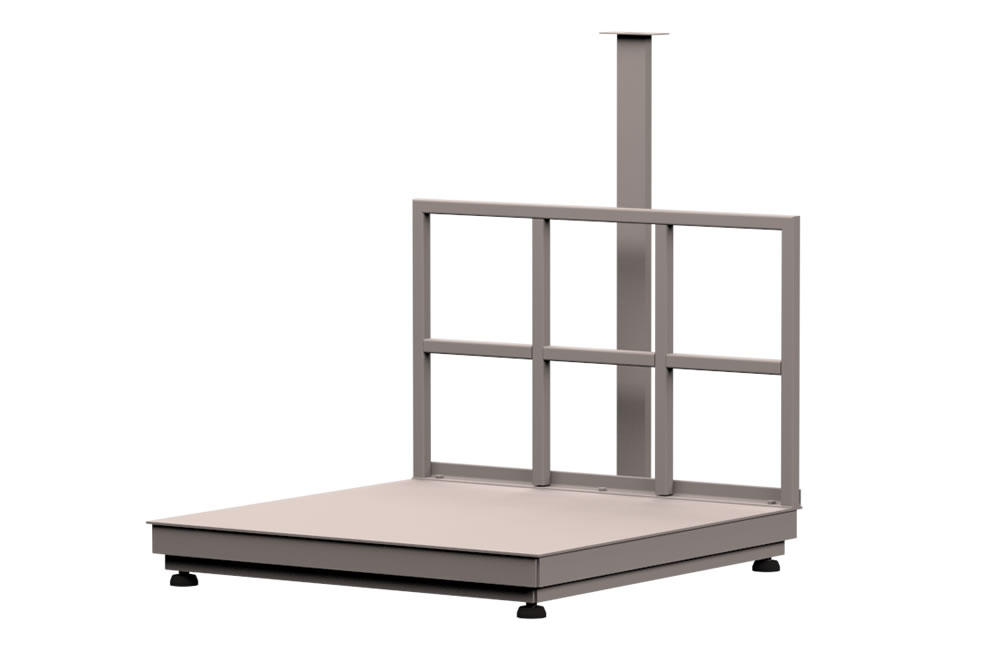

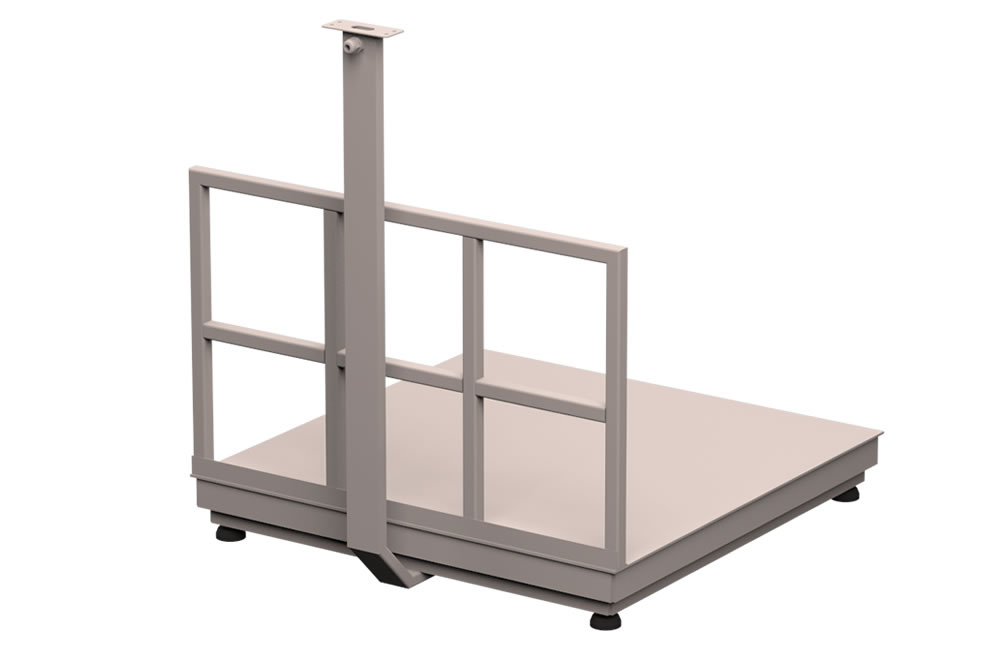

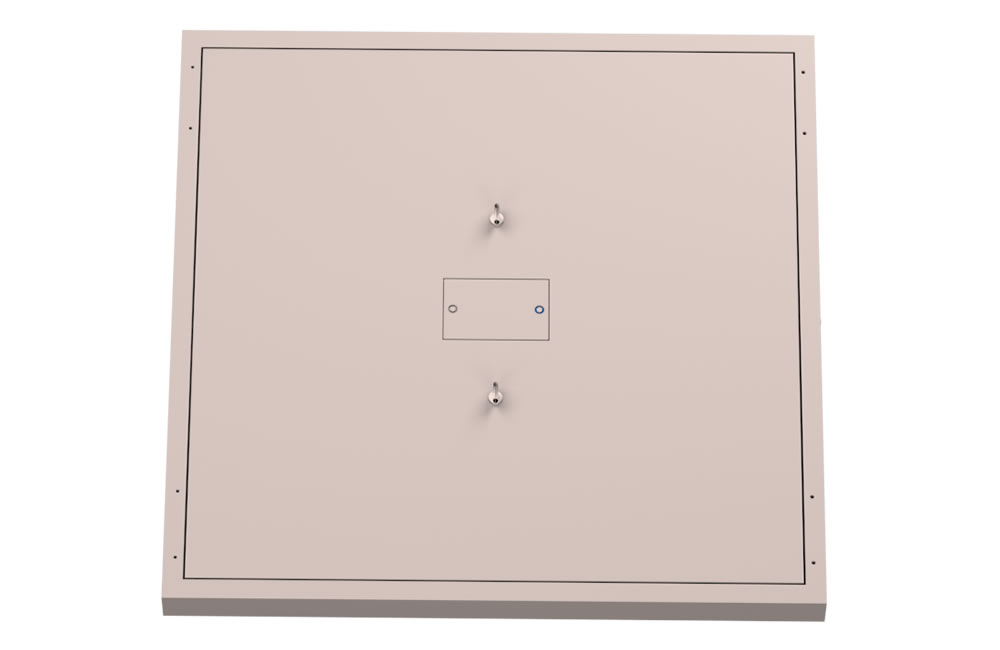

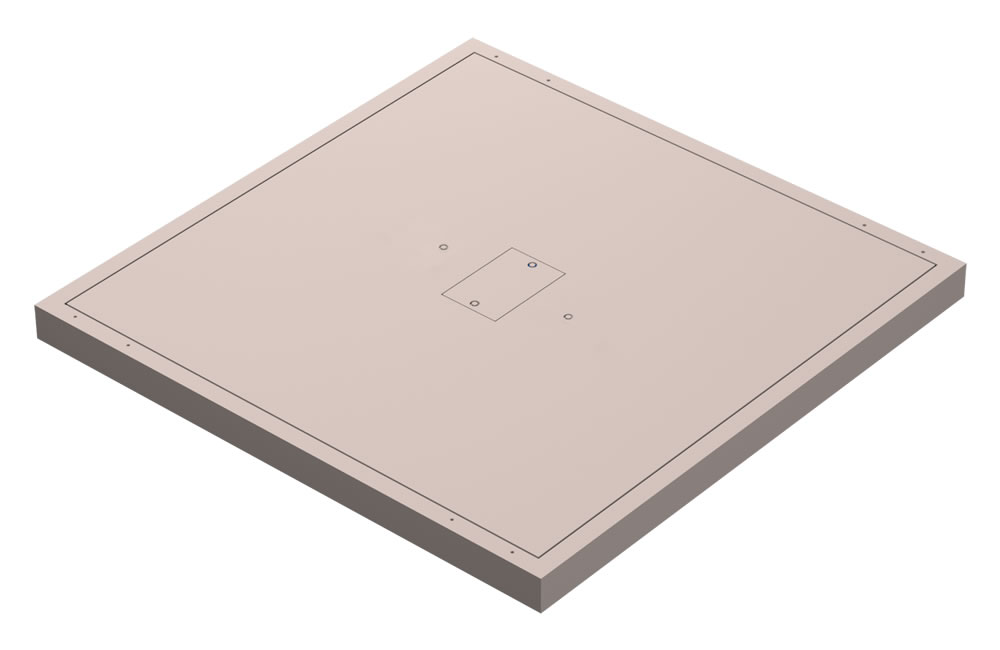

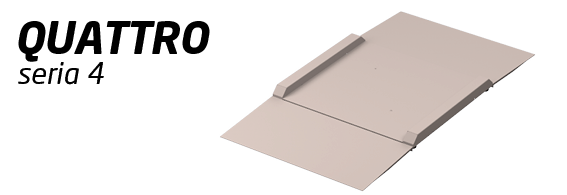

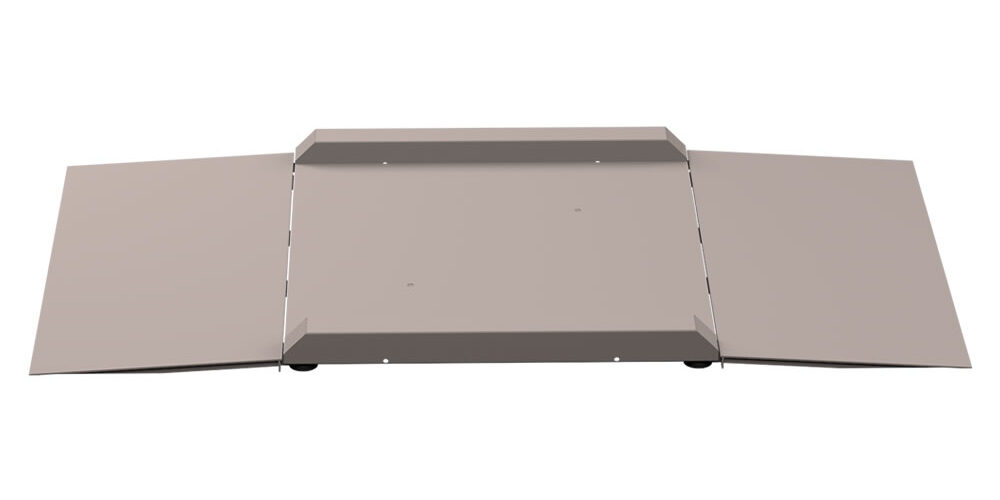

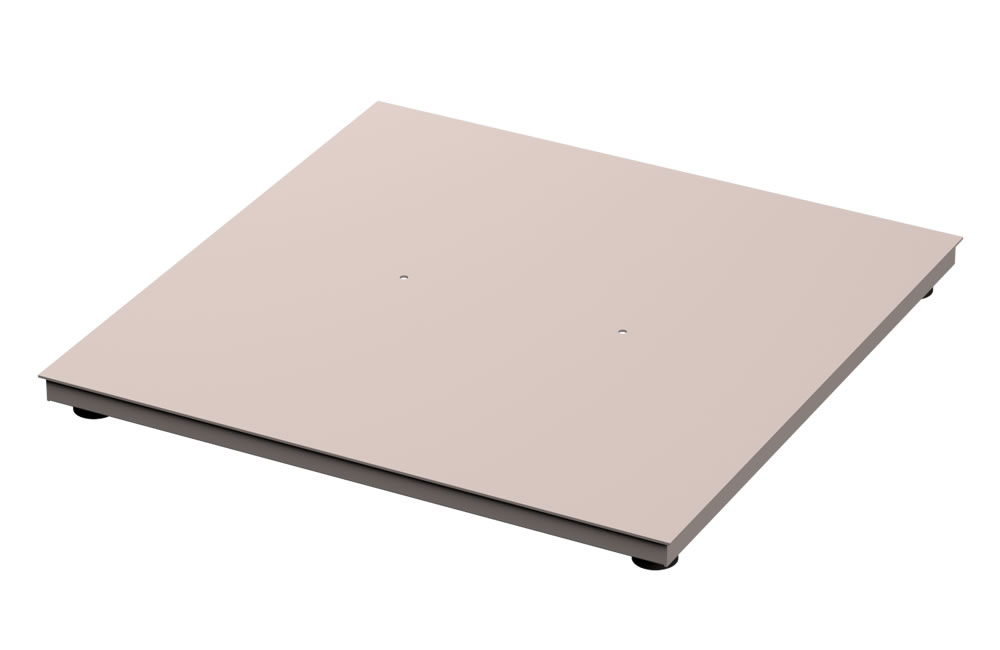

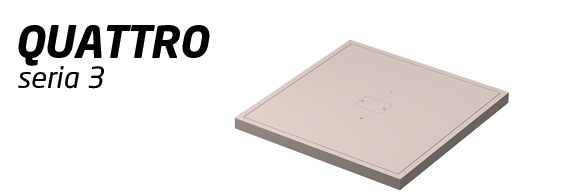

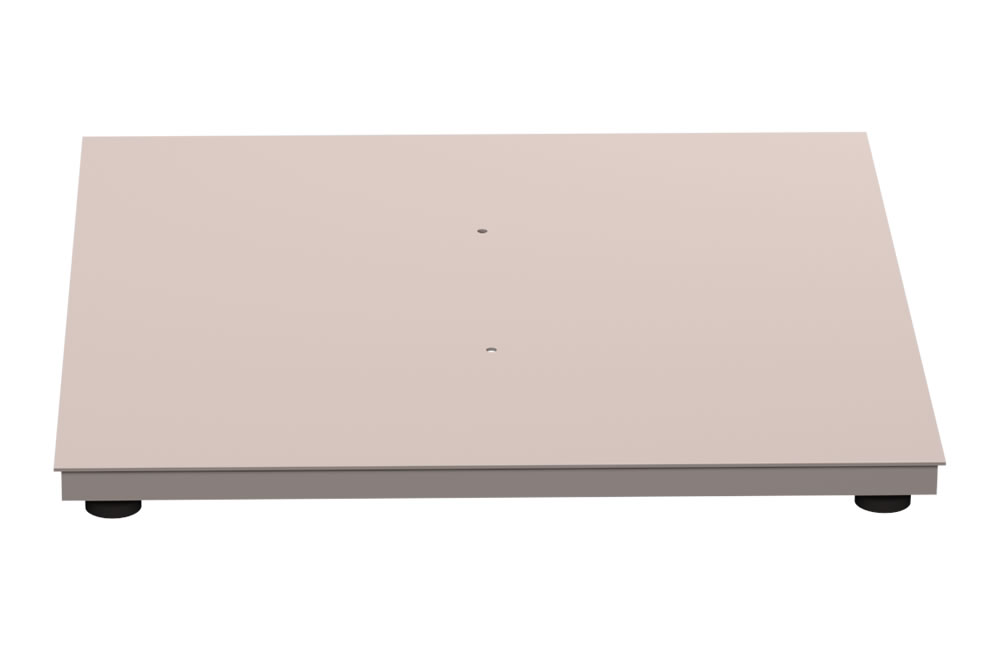

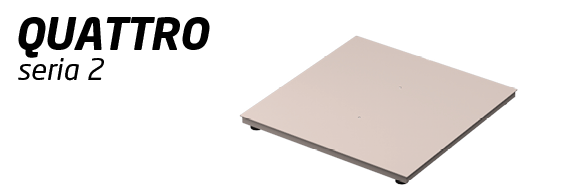

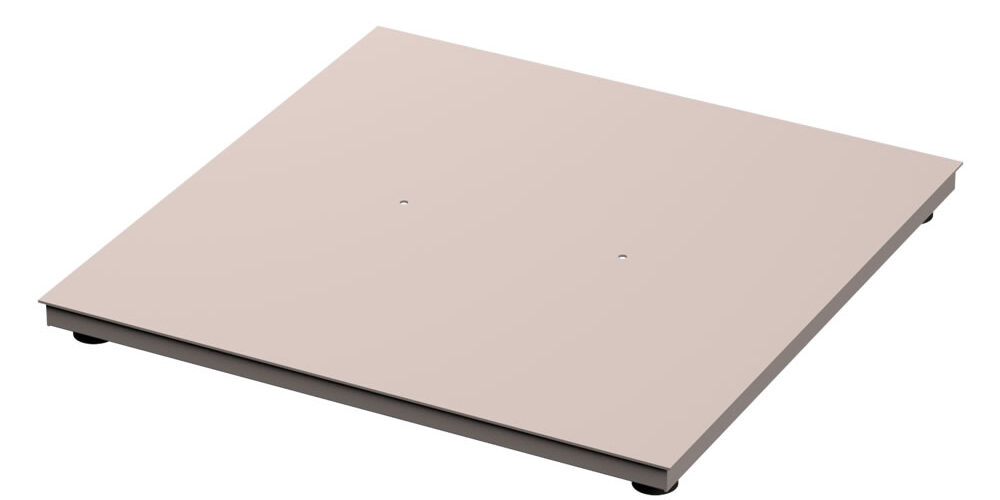

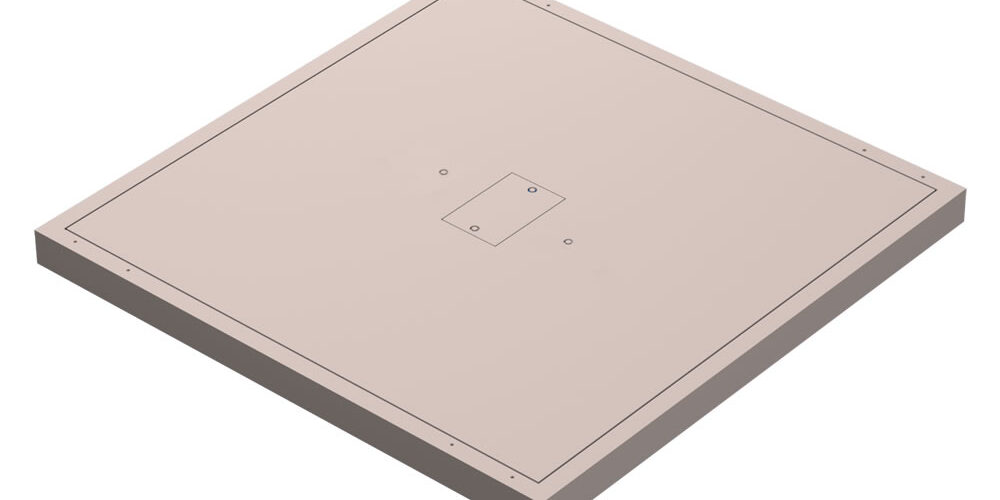

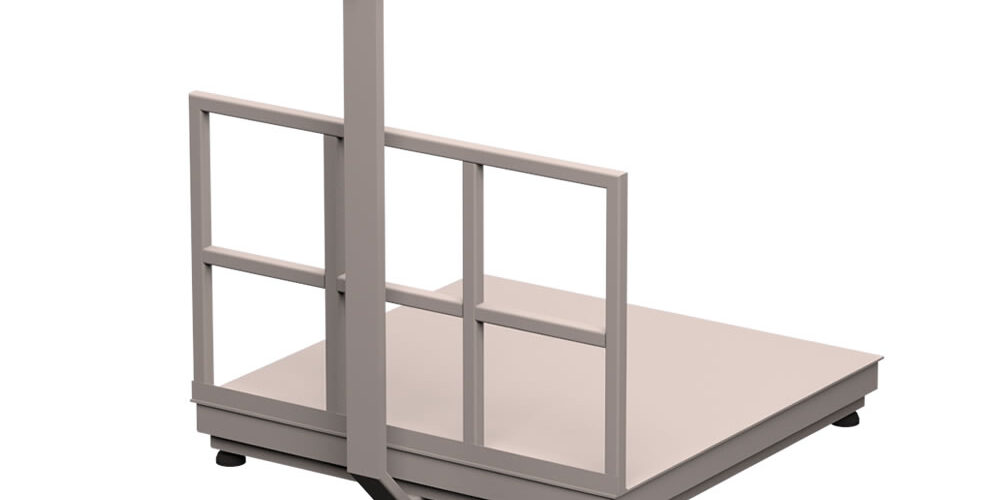

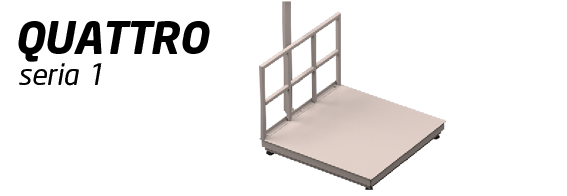

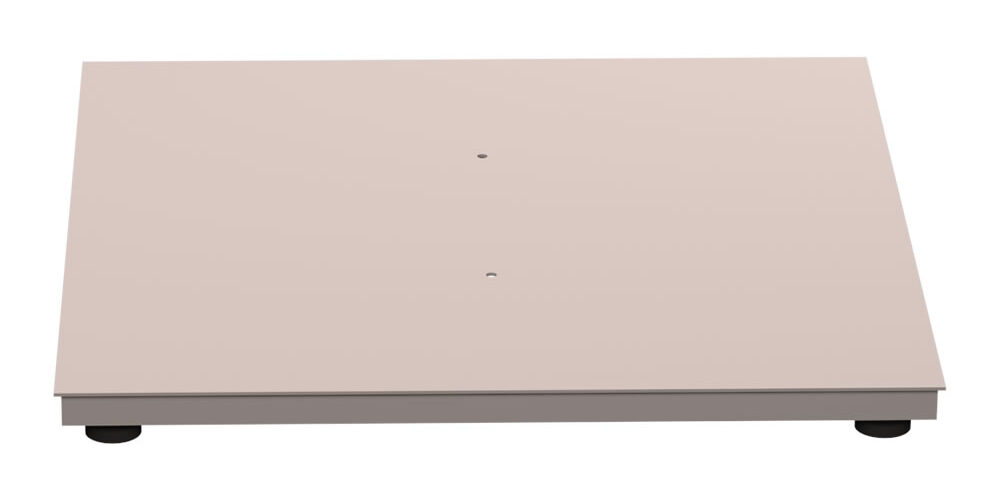

QUATTRO weighing platform
Carbon steel weighing platform:
- rigid structural framework
- h = 90..120mm
- corrosion protection (gray primer and industrial paint)
- four FLINTEC SLB stainless steel weighing cells, IP67 degree of protection and mounting accessories
- connection cable (5m)
- FRP (fiberglass reinforced polyester) connection box IP66 degree of protection, with cable glands for protection of the connection cable
- Working temperature: -40 ° C .. + 65 ° C.

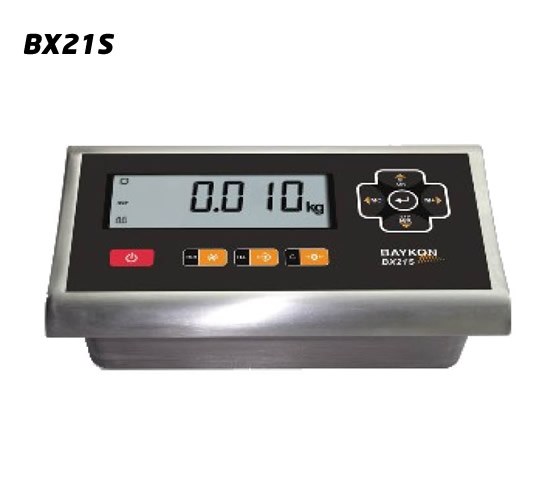

BX21S digital weighing indicator
- RS232 Serial Interface Protected Interface
- DSD Data Storage Device - uniquely identified records (0..9999) for weighing traceability assessment
- MCP (Multi Cell Processing Technology)
- A / D converter with analog and digital filters
- digital calibration via dedicated menu
- keyboard On / Off, Sum, Piece counting, Zero, Hard, Print, Function
- Continuous monitoring of alarms with alarm indication
- Power supply: 230Vac / 50Hz and 7.4Vdc (7.4Vdc / 2Ah battery)
SYSTEM CONFIGURATION
The purpose of the product is to determine the mass in commercial transactions and is covered by Directive 2009/23 / EC. (repealing Directive 90/384 / EEC), transposed by H.G. 617/2003 for establishing the introduction conditions on the market and commissioning of weighing machines with non-automatic operation, republished, modified by H.G. 1302/2009.
Foundation
- The customer ensures a flat concrete surface.
QUATTRO Weighing Platform – Electronic Components
- FLINTEC Germany weighing cells SLB type with surge protection
- Junction box with surge protection
- Copper mounting cable for mounting
- BX21S digital weighing indicator
Services
- Initial metrological verification and legal markup
- Declaration of Conformity and Certificate of Testing
- Operation Manual
- Train Operators
Exclusions from standard or optional supplies
- Transport platform from its own factory (Tecuci branch, Galati county)
- Lifting equipment for a platform weight of approximately 500kg
Warranty
- 5 years the strength structure of the platform; 1 year electronic components
Post-warranty service
- Product lifetime: spare parts insurance, service interventions
Delivery time
- 10..14 days
Options

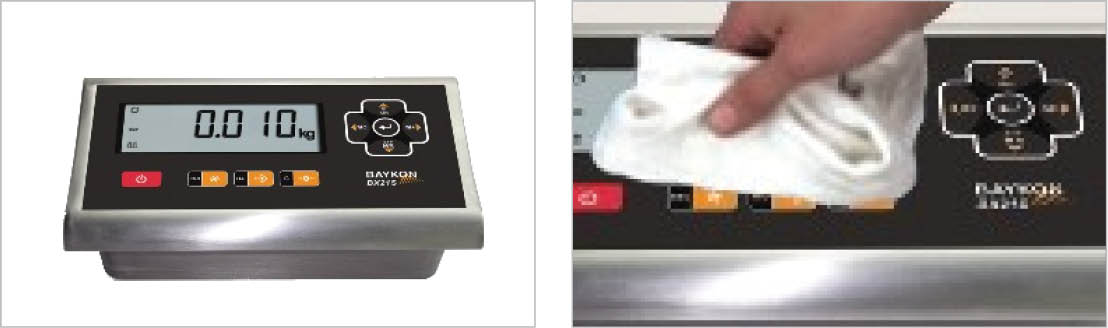

The BX21S weighing indicator is an accurate and versatile instrument, OIML R76 approved for 10000d and 2x6000d. Liquid crystal display, industrial keyboard. The BX21S is the perfect terminal for controlling weighing processes.

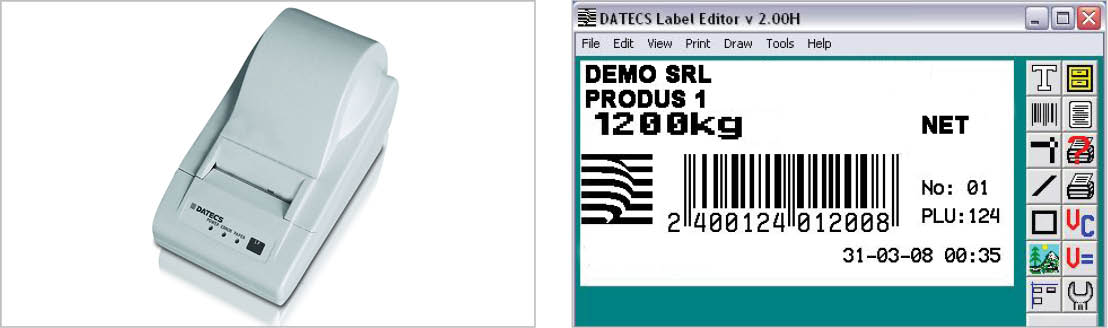

Datecs LP-50 is a thermal printer designed to print small labels and graphics on thermal paper. The information is arranged in a template, which can be partially modified according to the client’s request.

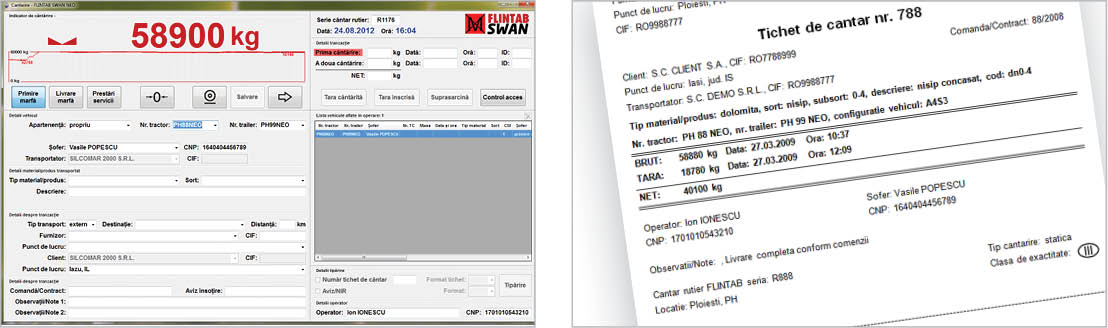

PC station (average market configuration) with the operating system and all pre-installed applications, including antivirus software. Business transaction management software according to the requirements of H.G. 1373/2008.
Our weighing platforms are designed for use in industrial work environments. Renowned for their reliability and accuracy, FLINTAB platform scales have stood the test of time in harsh work environments. All of our scales are easy to install, use, and maintain, so they won’t slow you down. FLINTAB weighing platforms are available in a wide range of sizes, capacities and prices to suit every application.
| Dimensions [m] | Capacity [kg] | Division [g] |
|---|---|---|
| 0.80x0.80 | 150/300 | 50/100 |
| 0.80x1.00 | 150/300 | 50/100 |
| 1.00x1.00 | 150/300 | 50/100 |
| Dimensions [m] | Capacity [kg] | Division [g] |
|---|---|---|
| 1.00x1.00 | 600/1500 | 200/500 |
| 1.25x1.25 | 600/1500 | 200/500 |
| 1.00x1.50 | 1500/3000 | 500/1000 |
| 1.50x1.50 | 1500/3000 | 500/1000 |
| 1.50x2.00 | 1500/3000 | 500/1000 |
| 2.00x2.00 | 1500/3000 | 500/1000 |
| Dimensions [m] | Capacity [kg] | Division [g] |
|---|---|---|
| 1.00x1.00 | 1500/3000 | 500/1000 |
| 1.25x1.25 | 600/1500 | 200/500 |
| 1.00x1.50 | 1500/3000 | 500/1000 |
| 1.50x1.50 | 1500/3000 | 500/1000 |
| 1.50x2.00 | 1500/3000 | 500/1000 |
| 2.00x2.00 | 1500/3000 | 500/1000 |
| Dimensions [m] | Capacity [kg] | Division [g] |
|---|---|---|
| 1.20x1.20 | 600/1500 | 100/200 200/500 |
| 1.25x1.25 | 600/1500 | 200/500 |
