Europallet weighing platform

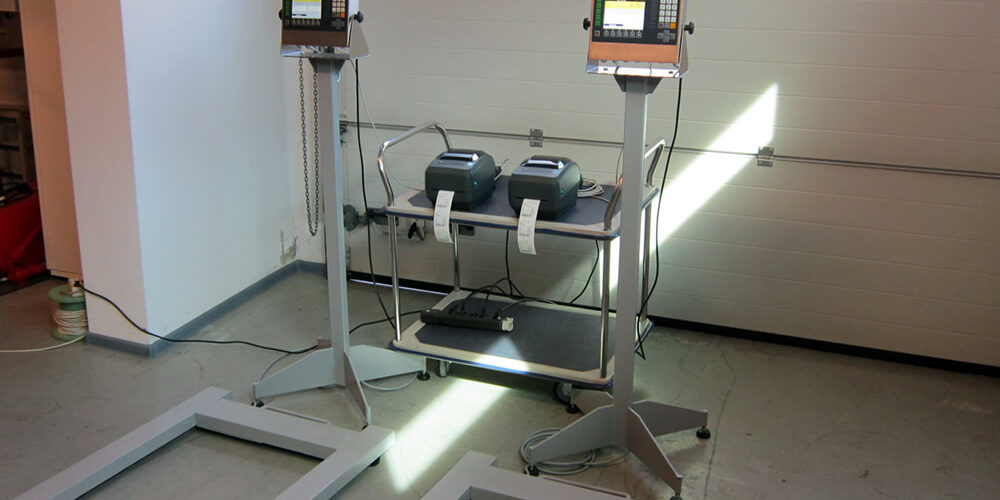

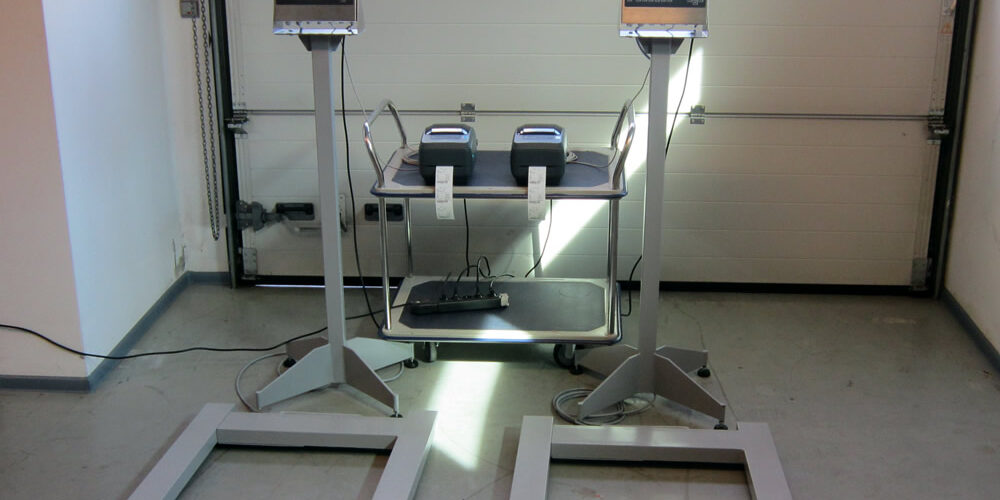

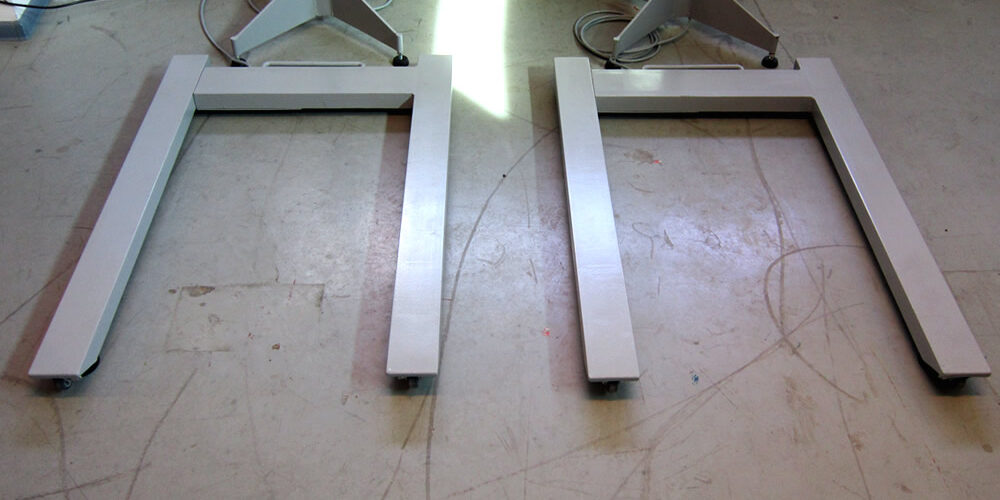

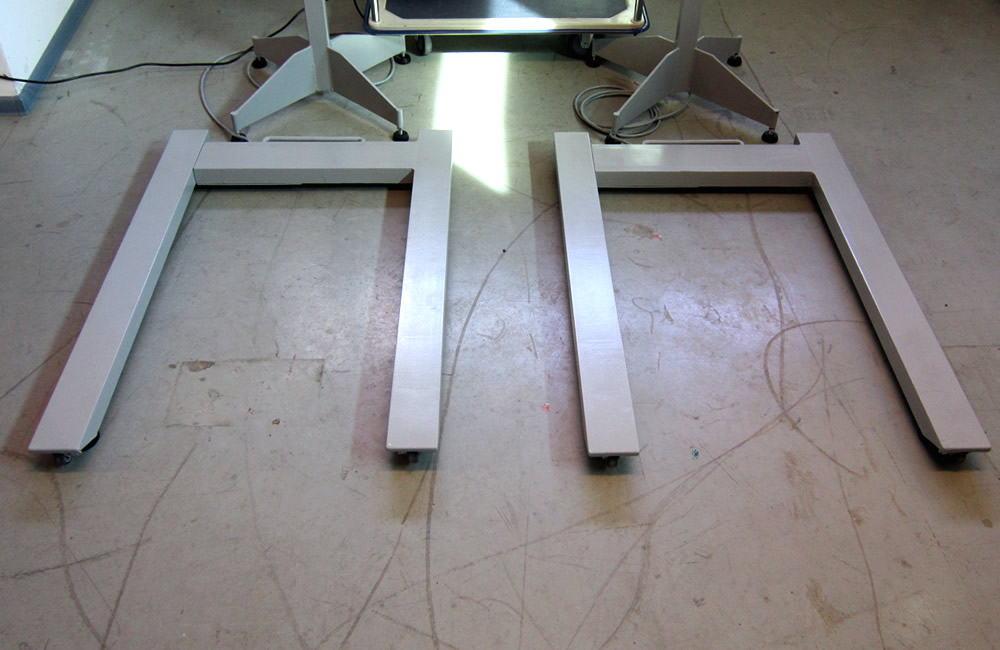

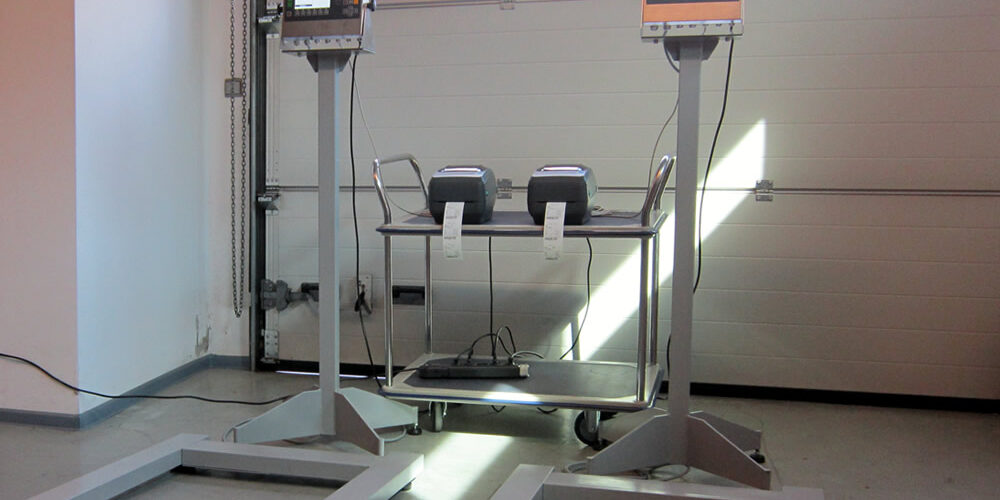

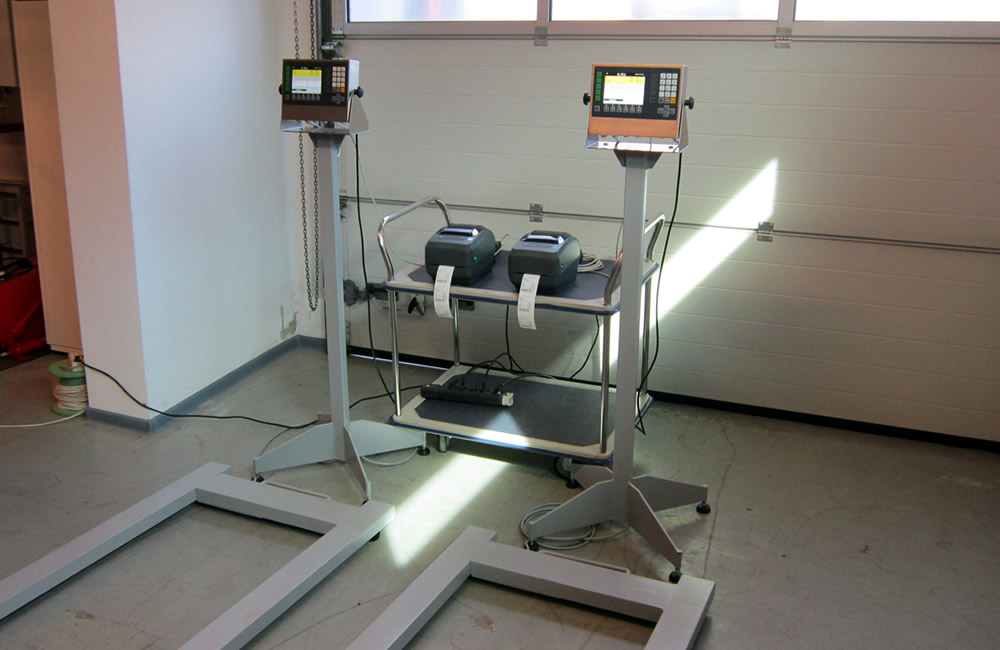

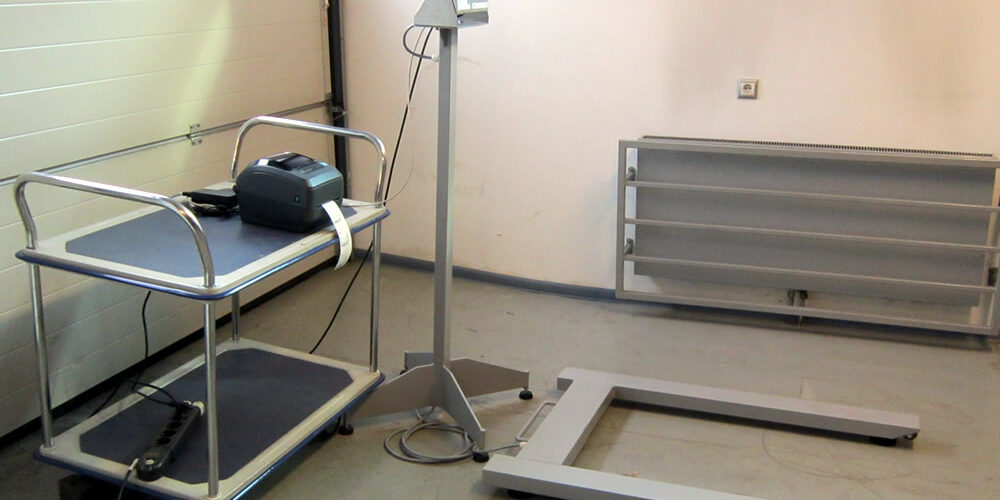

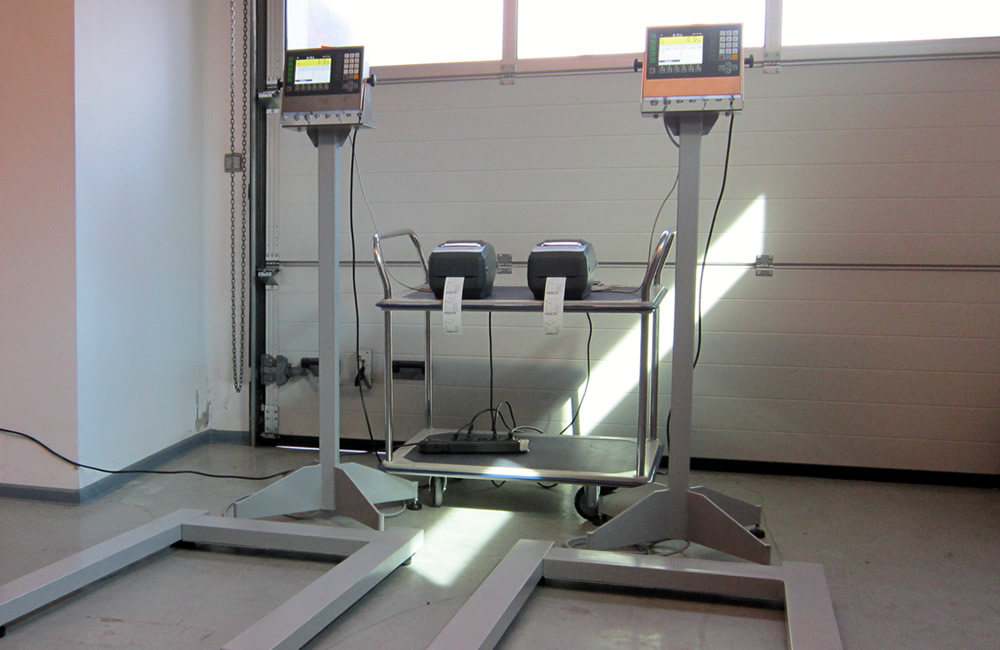

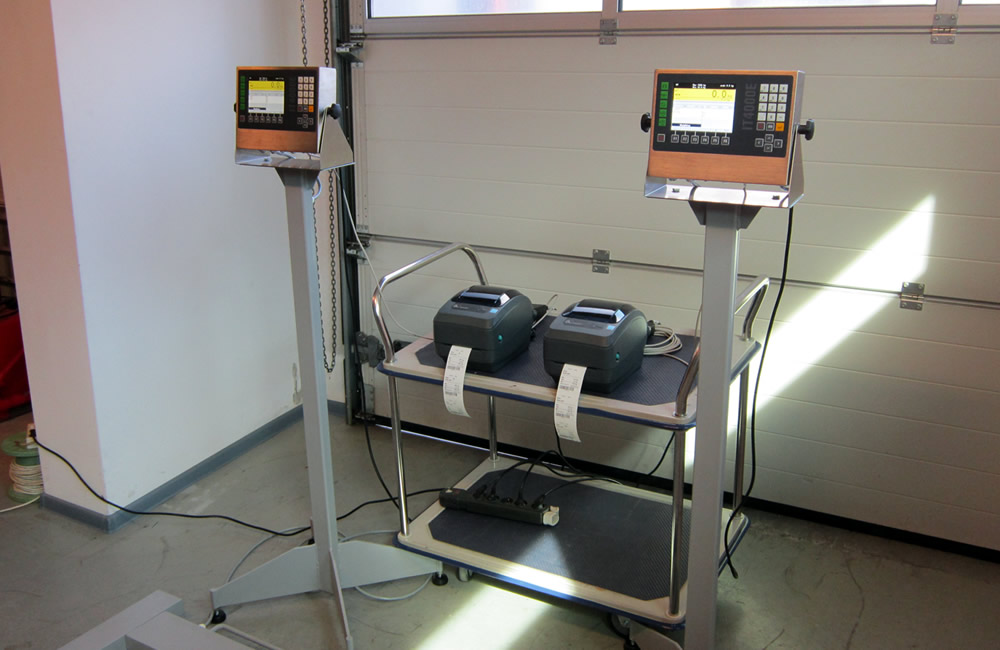

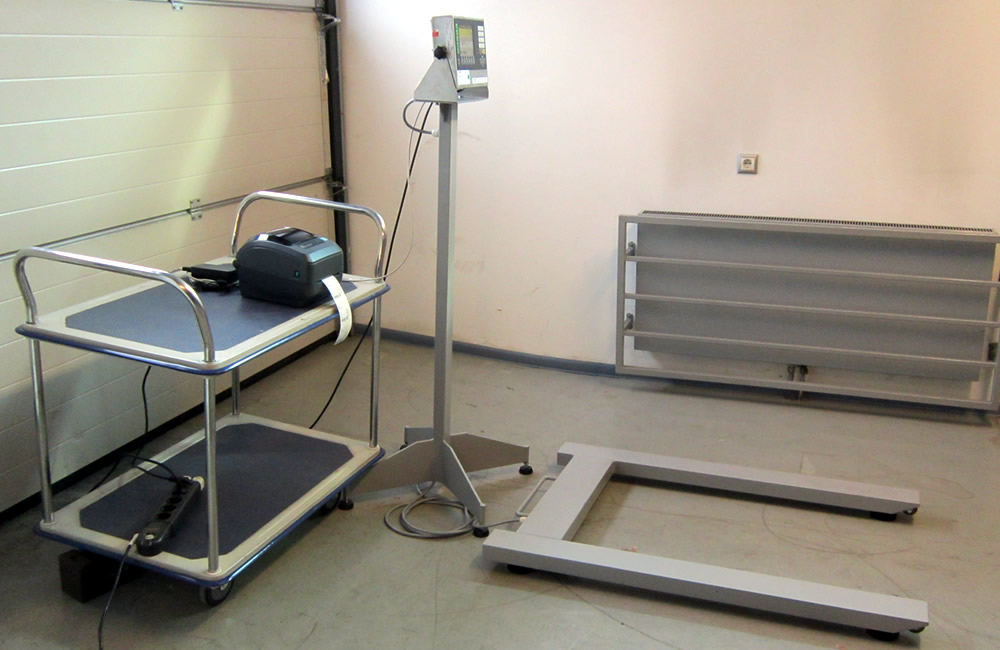

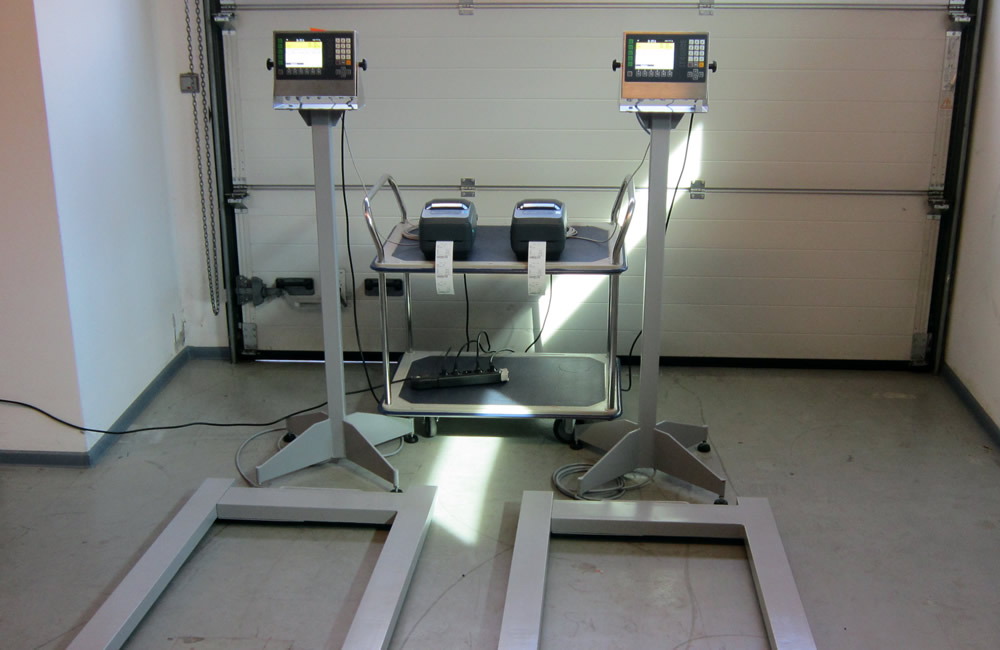

Europallet “U” type weighing platform
- rigid structural frame, dimensions 0.8x1.2m
- h = 90mm
- corrosion protection (gray primer and industrial paint)
- four FLINTEC SLB stainless steel weighing cells, IP67 degree of protection and mounting accessories
- connection cable (5m)
- FRP (fiberglass reinforced polyester) connection box IP66 degree of protection, with cable glands for protection of the connection cable
- Working temperature: -40 ° C .. + 65 ° C.

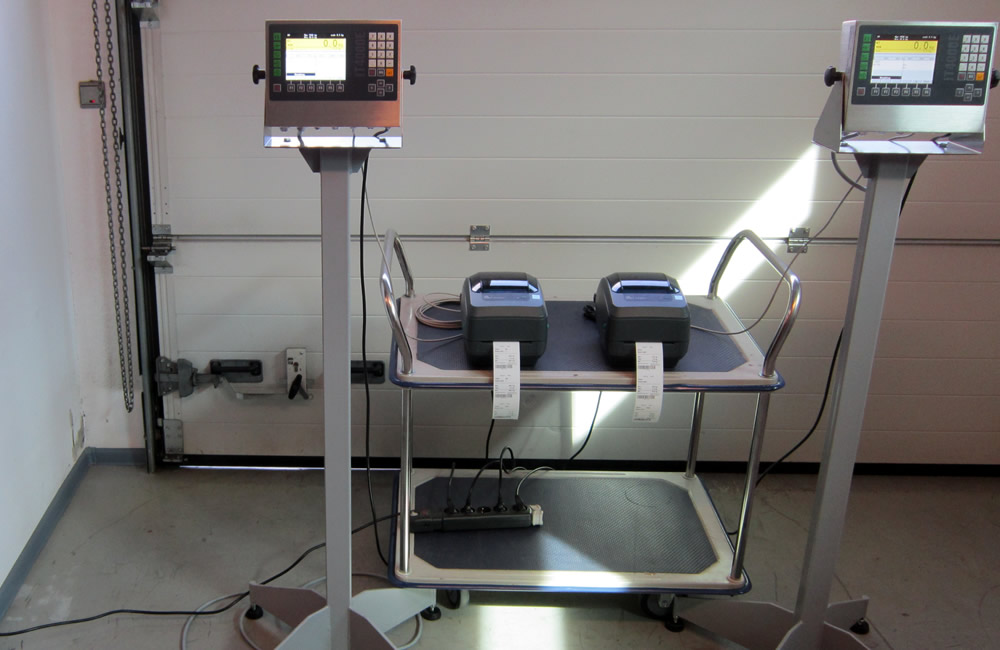

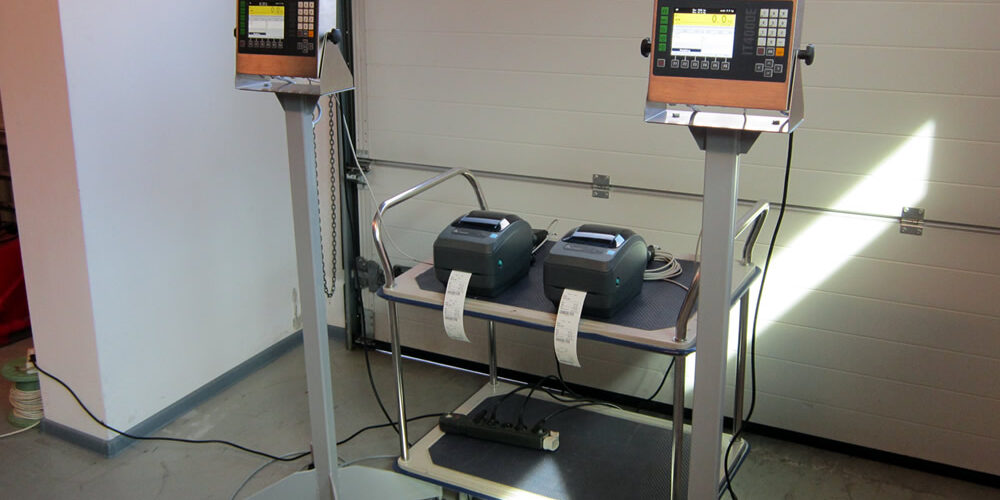

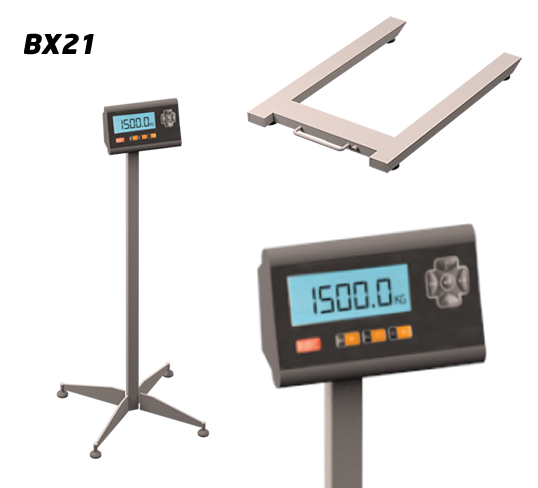

BX21 digital weighing indicator
- RS232 Serial Interface Protected Interface
- control memory (“aliby” DSD Data Storage Device
- weighing traceability assessment
- MCP (Multi Cell Processing Technology)
- A / D converter with analog and digital filters
- digital calibration via dedicated menu
- keyboard On / Off, Sum, Piece counting, Zero, Hard, Print, Function
- Continuous monitoring of alarms with alarm indication
- Power supply: 230Vac / 50Hz and 7.4Vdc (7.4Vdc / 2Ah battery)
