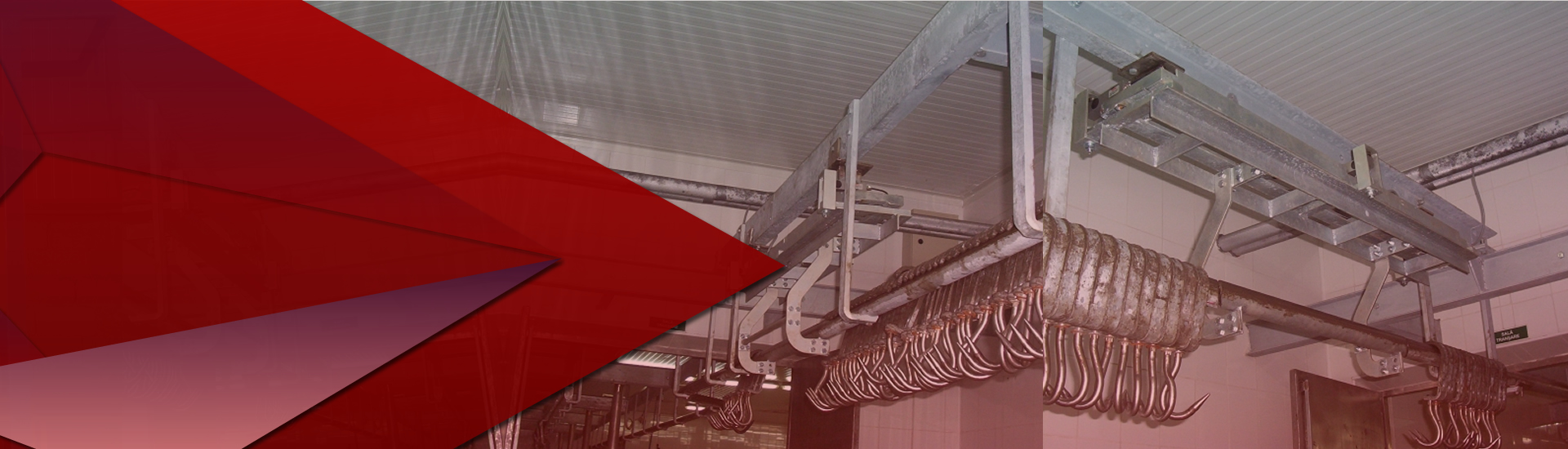

Overhead track scales for slaughterhouses

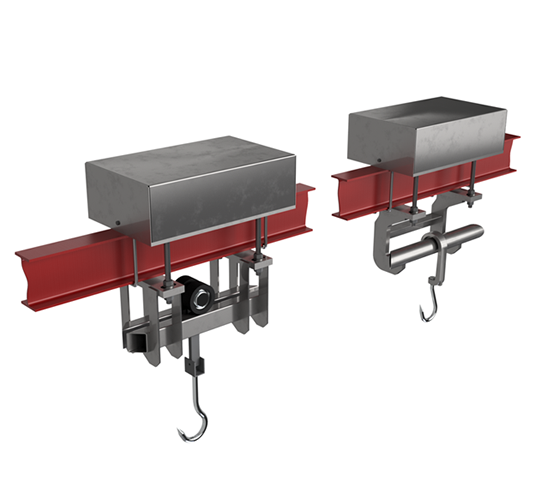

TAKT 1 single cell weighing overhead scale

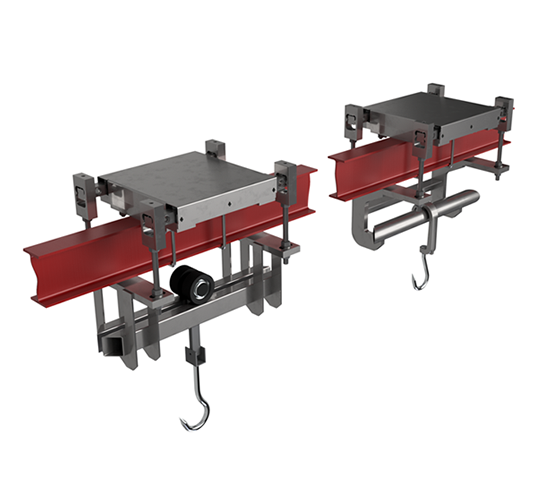

TAKT 4 weighing cell with four weighing cells
TAKT Overhead track scale
The Monorail Aerial Scale is a complete weighing assembly that can be installed as part of a new or existing airway system in slaughterhouses or for processing facilities that use aerial scales. Monorail air scale is ideal in slaughterhouses for weighing carcasses of cattle, pigs and lambs, which use an air system to transport the carcasses. The weighing unit is a section of the industry standard airway supported by one or four weighing cells.
MAIN FEATURES:
Easily adaptable to any type of monorail rail system, new or existing airway. Ideal as a performance-quality-price ratio. Certificate for commercial transactions (Legal-for-Trade). Maximum protection in extreme environments:
- Weighing cells made of stainless steel, degree of protection IP68 / IP69K
- Digital weight indicator in stainless steel housing, degree of protection IP68 IP69)
Available versions:
A. Monorail overhead scale with a load cell
- Weighing length of airway section: up to 400 mm
- Weighing range: 100 Kg; 150 Kg; 300 Kg
Two construction versions:
- Galvanized steel structure with a FLINTEC type PC60 aluminum weighing cell, IP67 degree of protection
- Stainless steel structure with a FLINTEC type PC7 stainless steel weighing cell, IP68 / IP69K degree of protection
B. Monorail four-cell weighing scale:
- Weighing length of airway section: up to 1000 mm
- Weighing range: 150 Kg, 300 Kg, 600 Kg, 1000 Kg
Two construction versions:

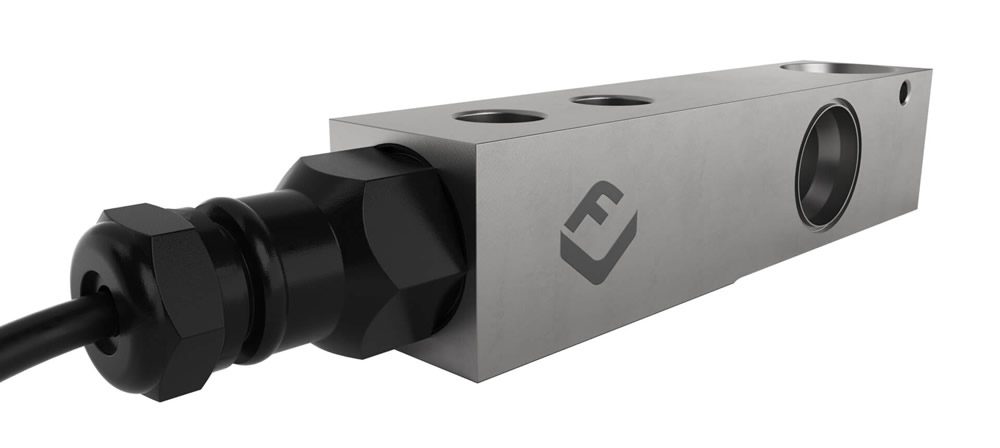

- FLINTEC type SB14 four-cell galvanized steel structure made of stainless steel, IP68 / IP69K degree of protection
- FLINTEC type SB14 stainless steel four-cell stainless steel structure, IP68 / IP69K degree of protection
Options
- Models with special dimensions and capacities
- Possible adaptations to the airway section (round duct, bars, and other airway configurations)
- Special assembly for suspended mounting on the existing ceiling, with galvanized threaded rods, adjustable horizontally and vertically.

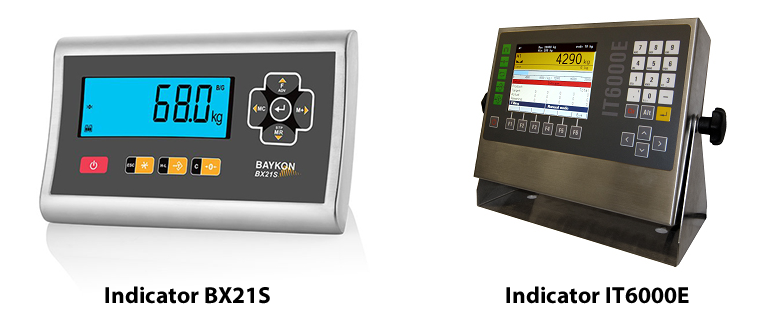

Digital weighing indicator:
FLINTAB digital weighing indicator type BX21S, otelinox housing, IP67 degree of protection or SysTec IT6000E programmable digital indicator, otelinox housing, IP68 / IP69K degree of protection fully equipped with:
- Secure interface for RS232 serial communication control memory (DSD data storage device "aliby")
- Uniquely identified records (0..9999) for weighing traceability assessment
- MCP (Multi Cell Processing Technology)
- A / D converter with analog and digital filters, digital calibration, via dedicated menu
- On / Off keyboard, sum, case count, zero, hard, print, function
- Continuous monitoring of alarm errors
- Working temperature: -20 ° C .. + 65 ° C
- Power supply: 230Vac / 50Hz and 7.4Vdc (7.4Vdc / 2Ah battery).
