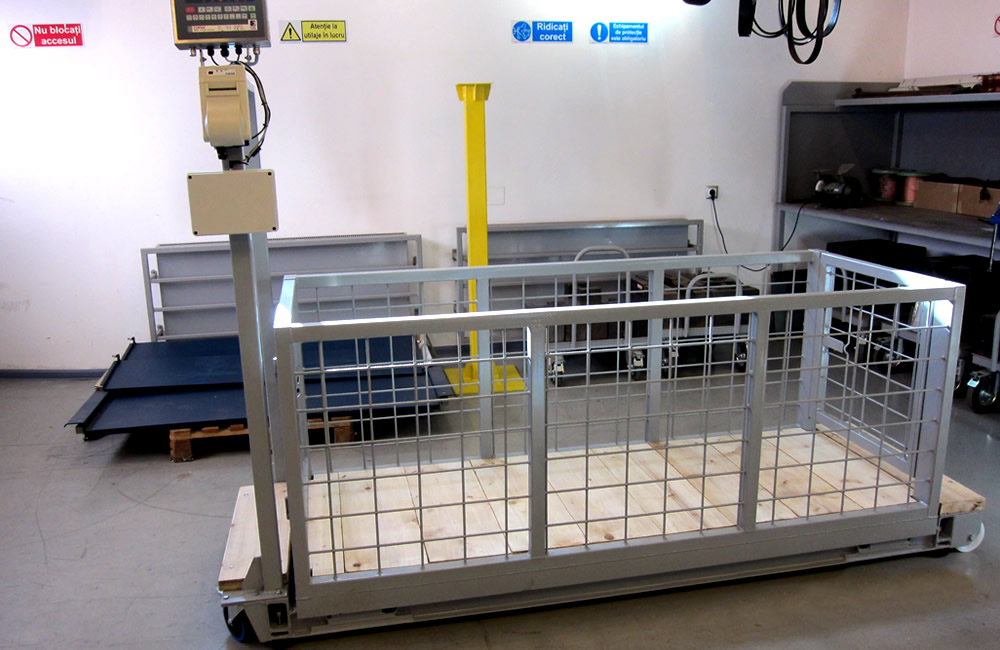

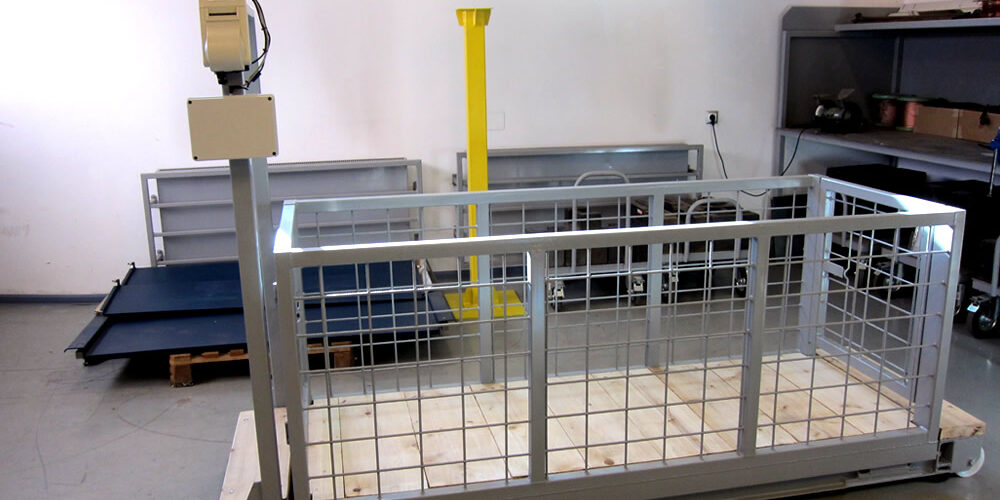

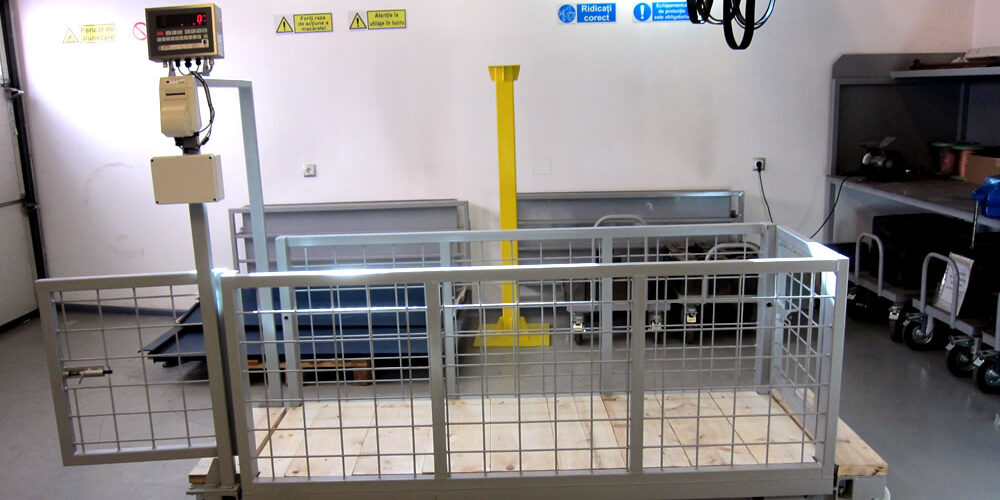

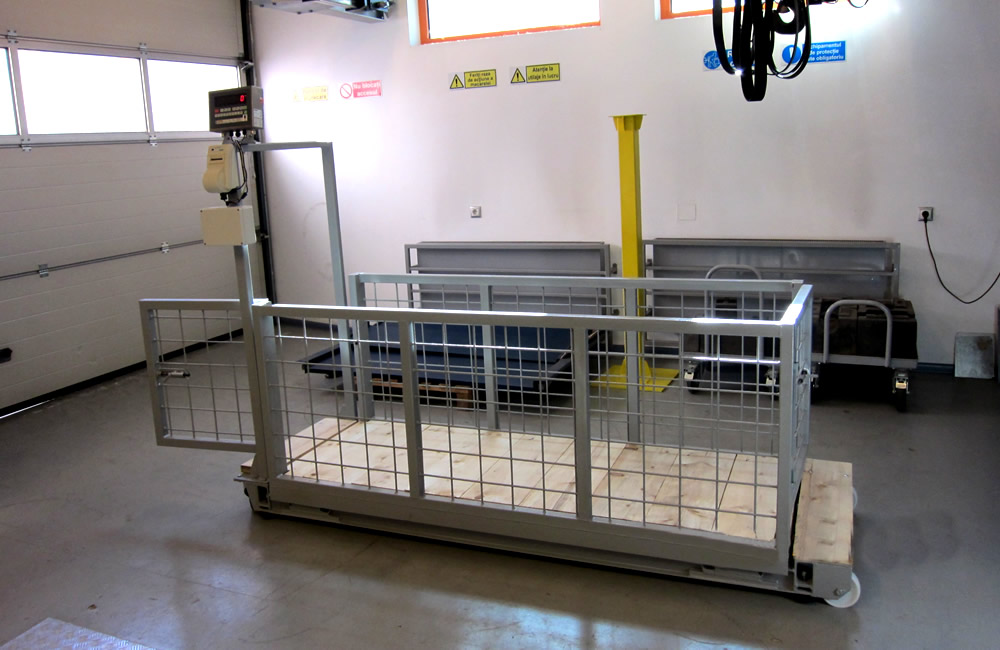

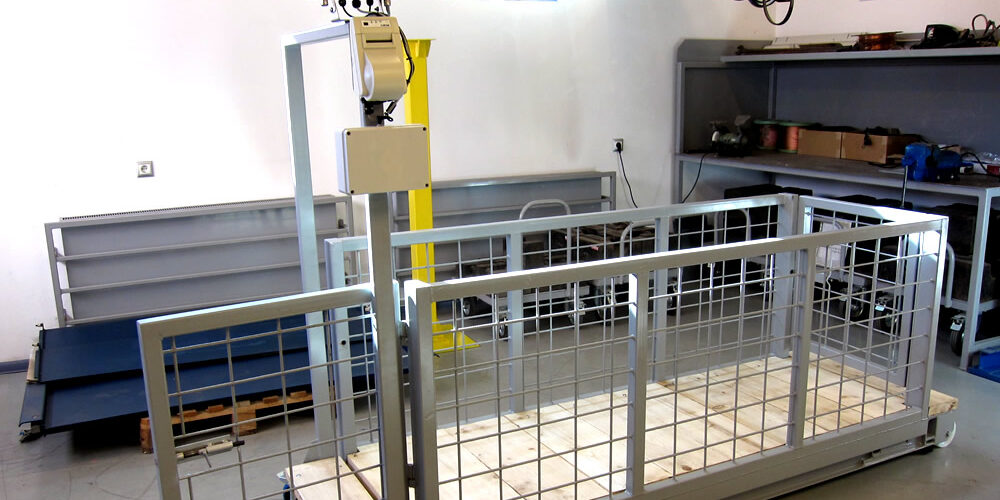

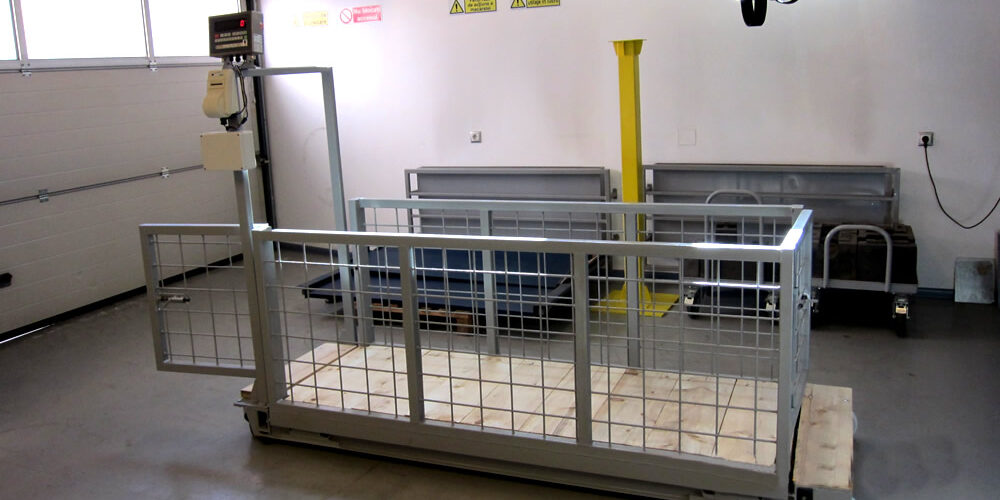

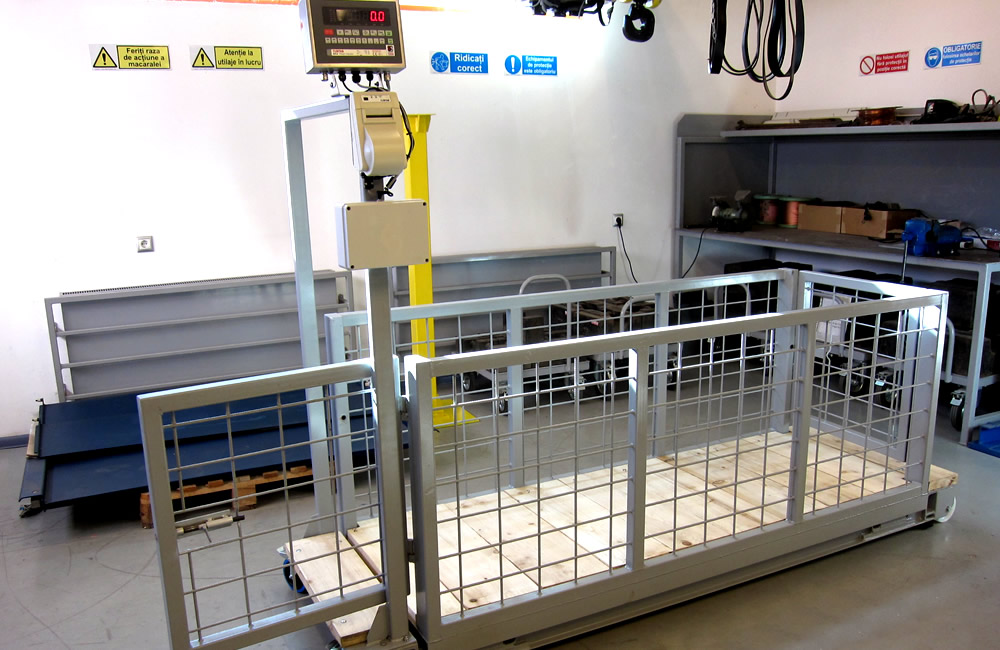

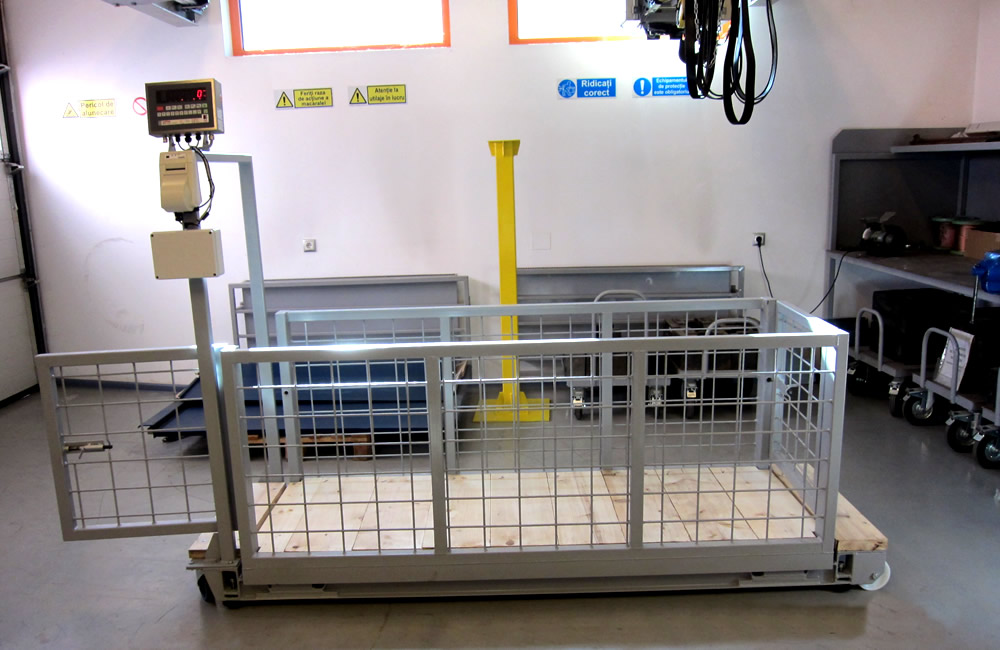

Weighing scales for farms and alive animals

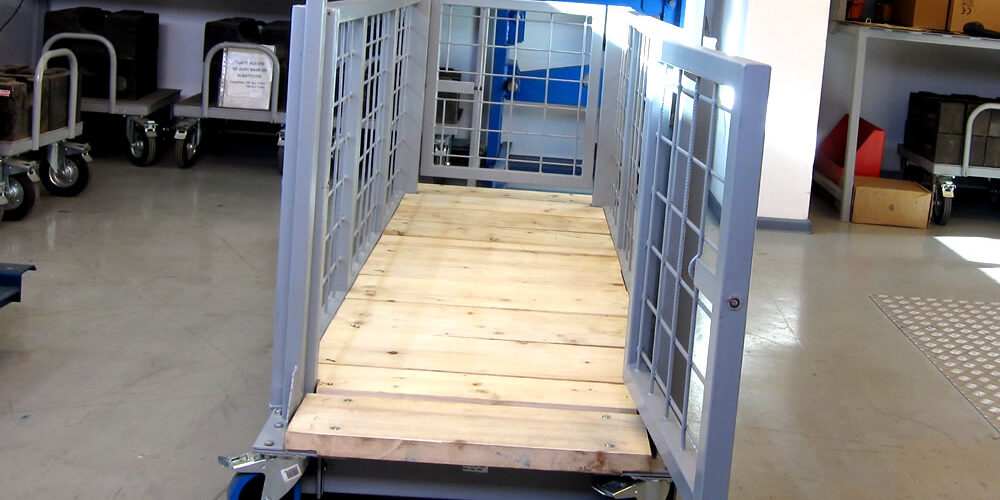

Carbon steel weighing platform with 40mm plank floor:
| Dimensions [m] | Capacity [t] | Division [kg] |
|---|---|---|
| 1.5x1.0 | 1.5 | 0.5 |
| 2.5x1.5 | 2.0 | 0.5/1 |
| 2.5x2.0 | 3.0 | 0.5/1 |
On order we can provide any other dimensions or capacity needed.
- support frame (containing weighing cells and signal summation box)

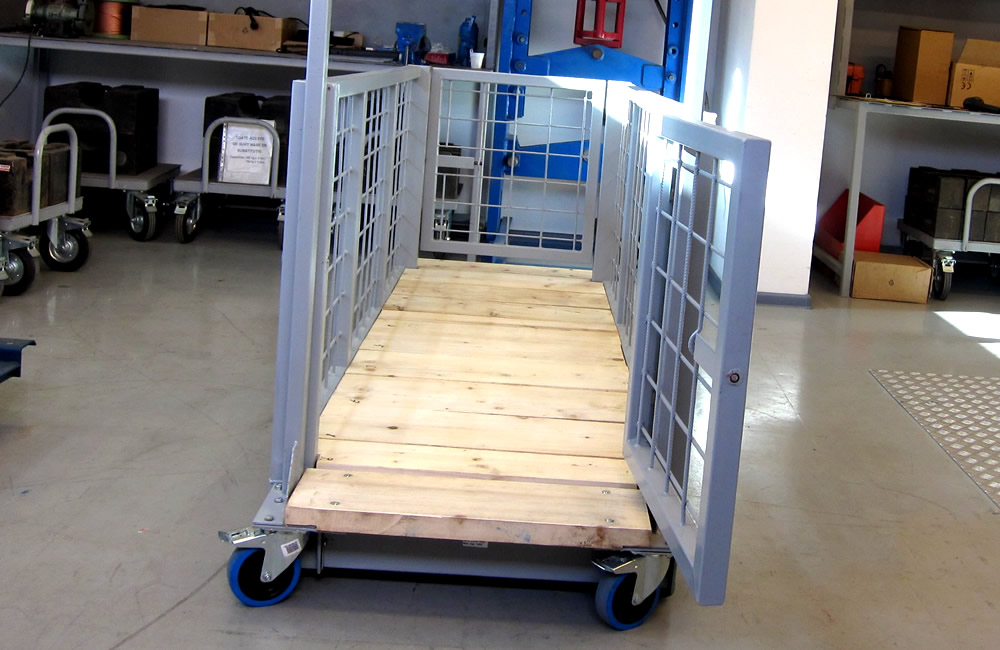

- two-door access grille (single or double)
- corrosion protection (primer and industrial paint gray RAL 7004)
- four FLINTEC SB14 stainless steel weighing cells, degree of protection IP68, corrosion protection.
- rodent cell cable protection system against rodents
- FRP (fiberglass reinforced polyester) connection box IP66 degree of protection, with cable glands for protection of the connection cable
- connection cable (10m) from the weighing platform to the digital weighing indicator
- Operating temperature: -40 ° C. + 65 ° C.

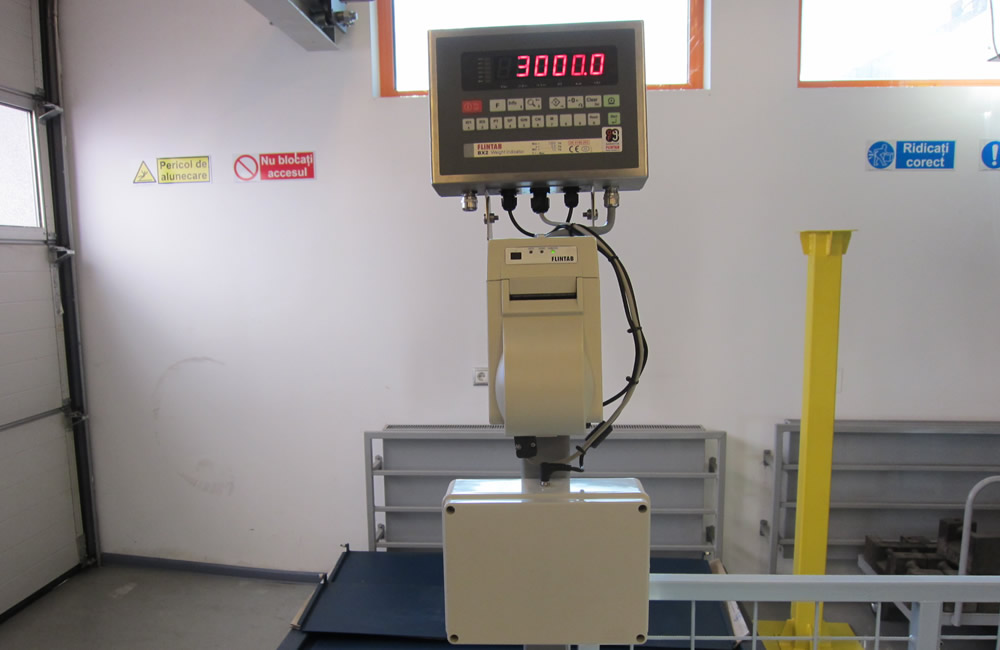

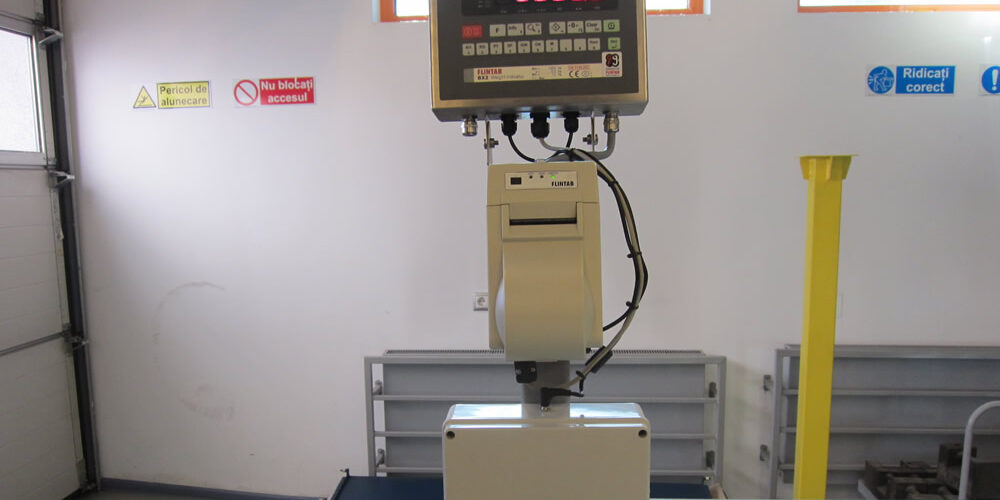

BX21S digital weighing indicator
- protected interface for RS232 serial communication
- DSD Data Storage Device - uniquely identified records (0..9999) for weighing traceability assessment
- MCP (Multi Cell Processing Technology)
- A / D converter with analog and digital filters
- digital calibration, through dedicated menu
- On / Off keyboard, Sum, Piece counting, Zero, Hard, Print, Function
- continuous monitoring of errors with alarm indication
- wall mounting: at the customer's expense
- working temperature: -10 ° C .. + 40 ° C
- Power supply: 230Vac / 50Hz and 12Vdc (12Vdc / 7Ah battery)
SYSTEM CONFIGURATION
The product is intended for mass determination in commercial transactions and is covered by Directive 2009/23 / EC. (repealing Directive 90/384 / EEC), transposed by H.G. 617/2003 for establishing the introduction conditions on the market and commissioning of weighing machines with non-automatic operation, republished, modified by H.G. 1302/2009.
Foundation
- The customer ensures a flat concrete surface.
Weighing platform model FARM – Electronic components
- FLINTEC Germany weighing cells type SB14 with surge protection
- Overvoltage protection connection box
- Copper connection cable for mounting
- BX21S digital weighing indicator in stainless steel housing
Services
- Initial metrological verification and application of legal markings
- Declaration of Conformity and Certificate of Testing
- Operation manual
- Operator training
Exclusions from standard or optional supplies
- Platform transport from own factory (Tecuci branch, Galati county)
- Lifting means for a platform weight of approximately 500 kg
Warranty
- 5 years the strength structure of the platform; 1 year electronic components
Post-warranty service
- Throughout the life of the product: spare parts insurance, service interventions, service contracts, periodic metrological checks or after repair / relocation
Delivery time
- 10..14 days
Options

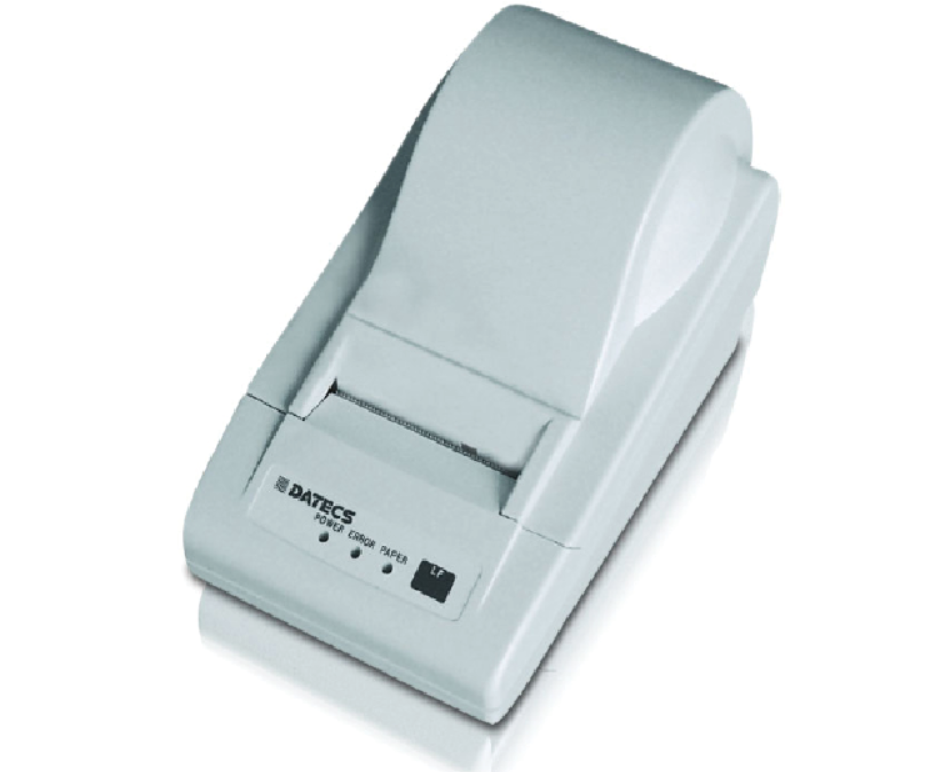

Datecs LP-50 is a thermal printer designed to print small labels and graphics on thermal paper. The information is arranged in a template, which can be partially modified according to the client’s request.

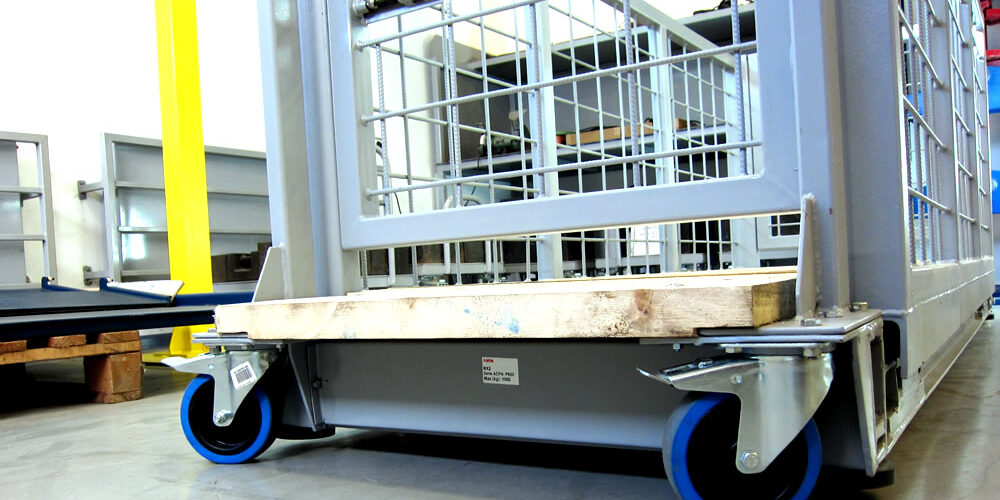

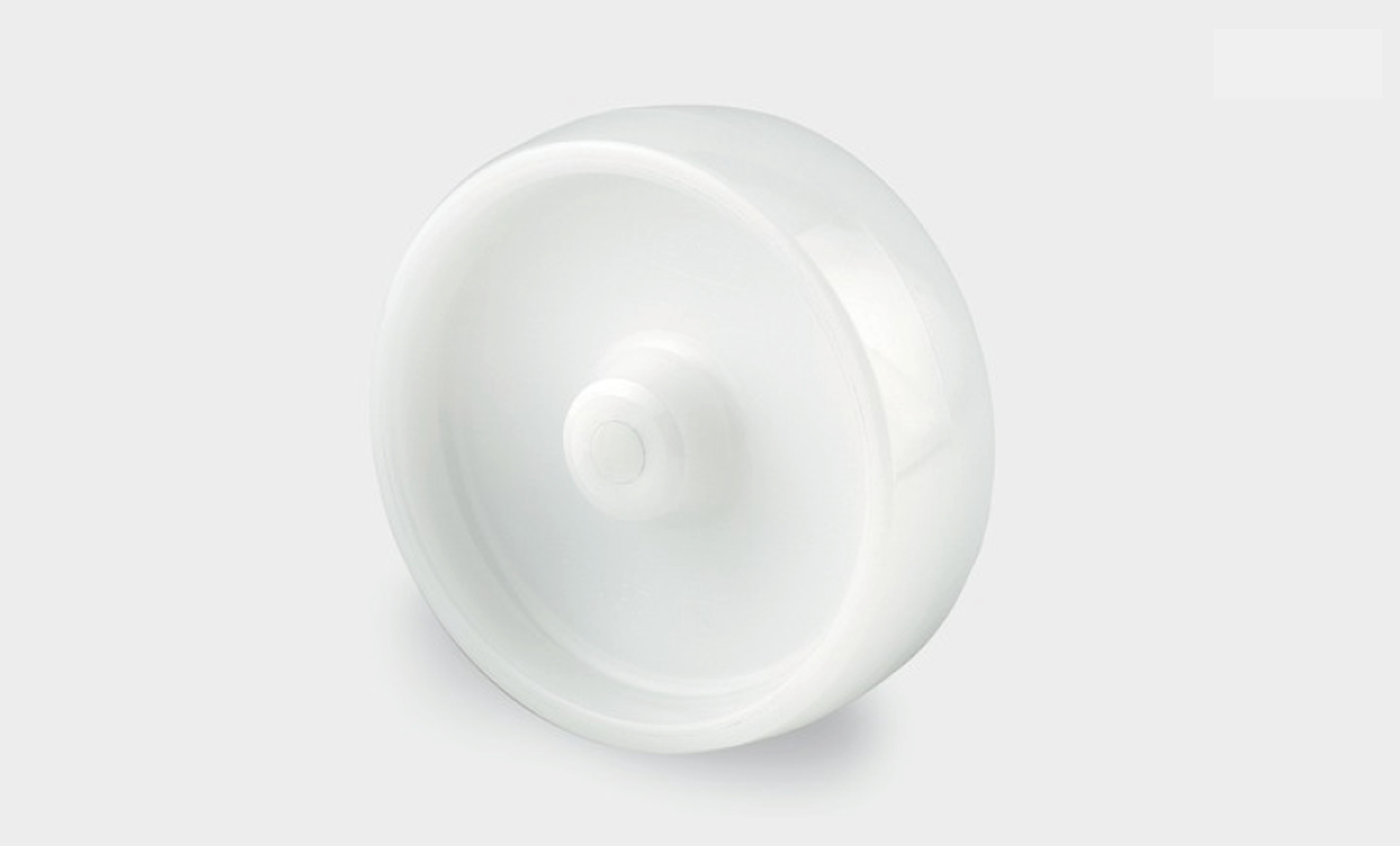

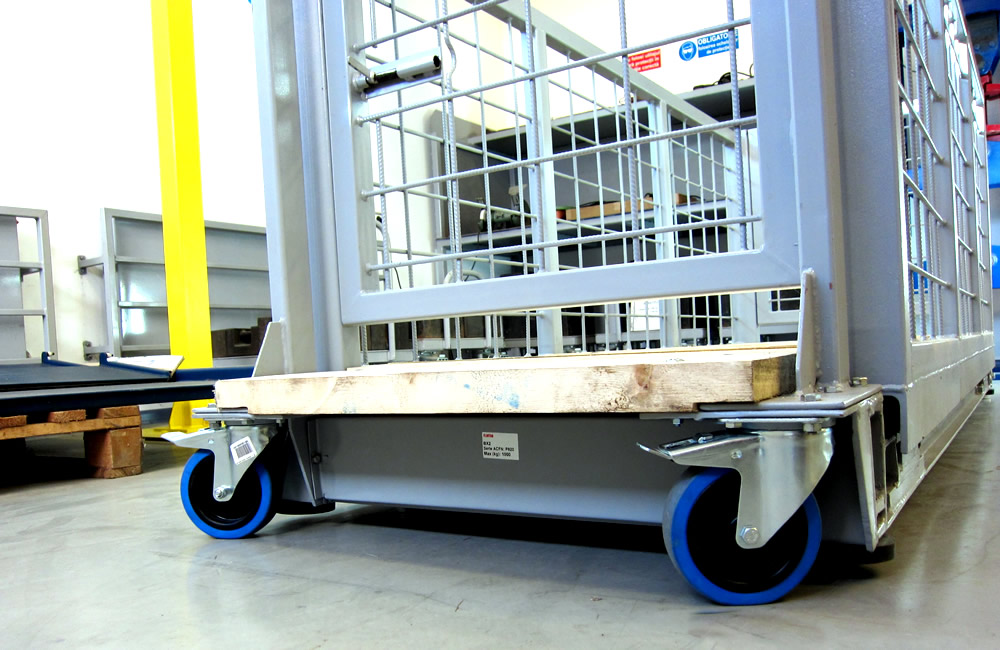

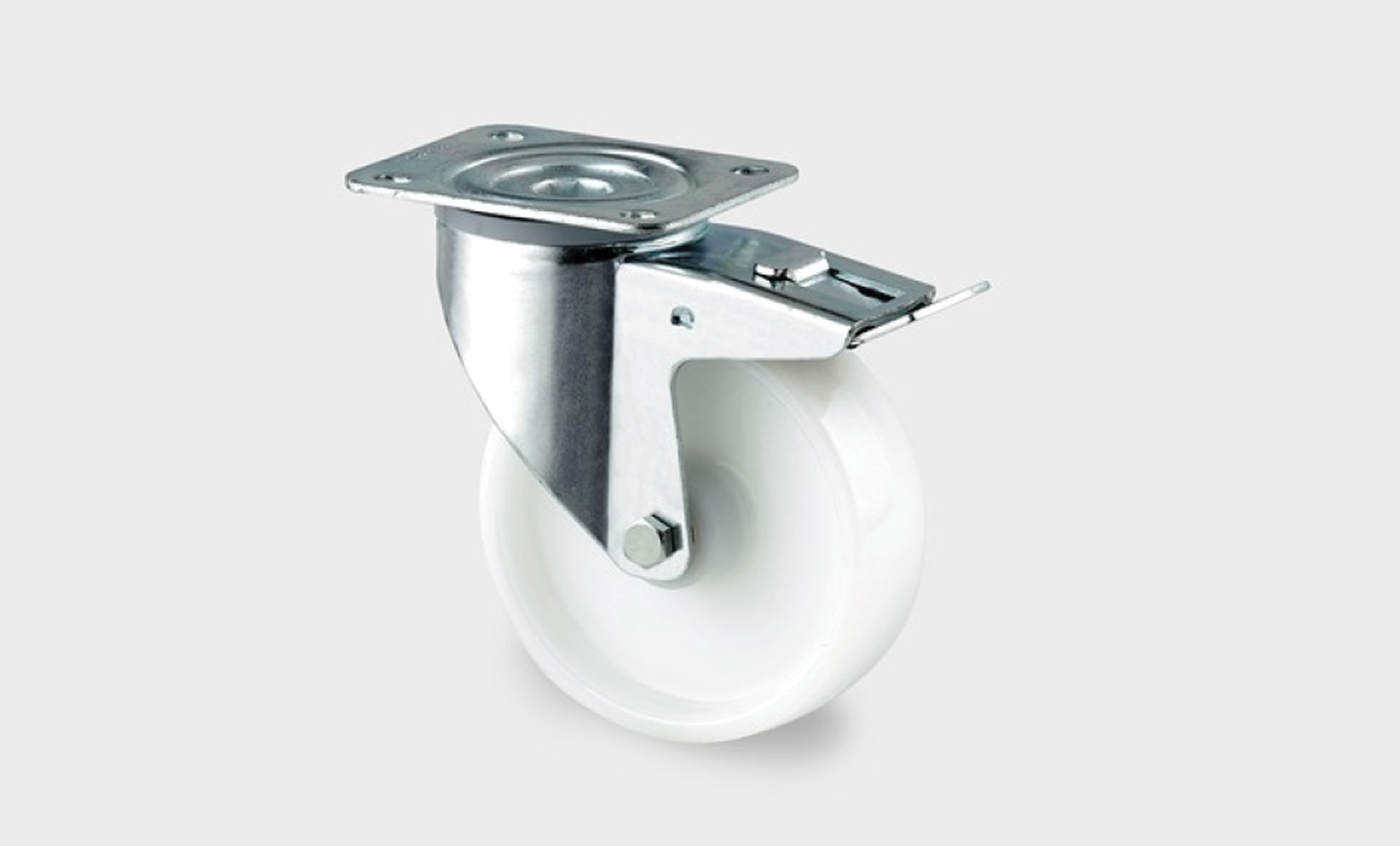

Two fixed rollers and two swivels with total locking. The pedal is on the opposite side of the running direction. Steel sheet fork, stamped, galvanized and swivel head with bearing on two rows of balls. Wheel axle with screw and nut, dust flange, plate clamping system. Polyamide wheel, flat bearing (anti-friction bushing).

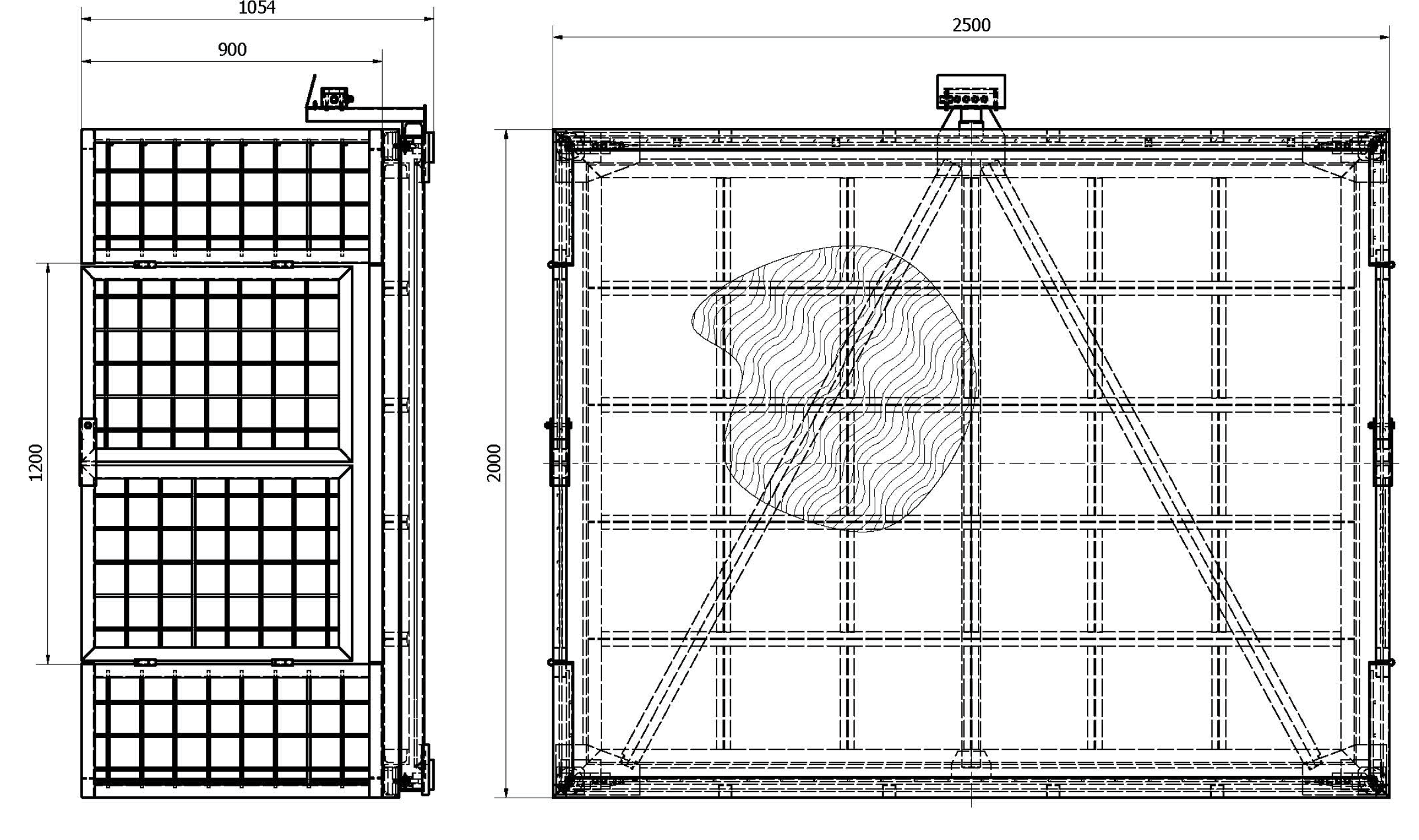

ASSEMBLY SCHEME
